Power Link 2000 service wiring enters from the bottom of the enclosure or from the back. In all cases, the
maximum required wiring and conduit entries use the maximum conduit sizes listed below.
Note: This conduit layout reflects the largest conduit options. See
more information.
For pedestal mounting, Power Link 2000 stations use
the DC Universal CMT, which also fits other DC fast
charging stations such as the Express 280 and can be
used as an upgrade path. This CMT is embedded in a
newly poured concrete pad to position both the anchor
bolts and the conduit stub-ups detailed below. For more
information, see DC Universal Concrete Mounting
Template Guide.

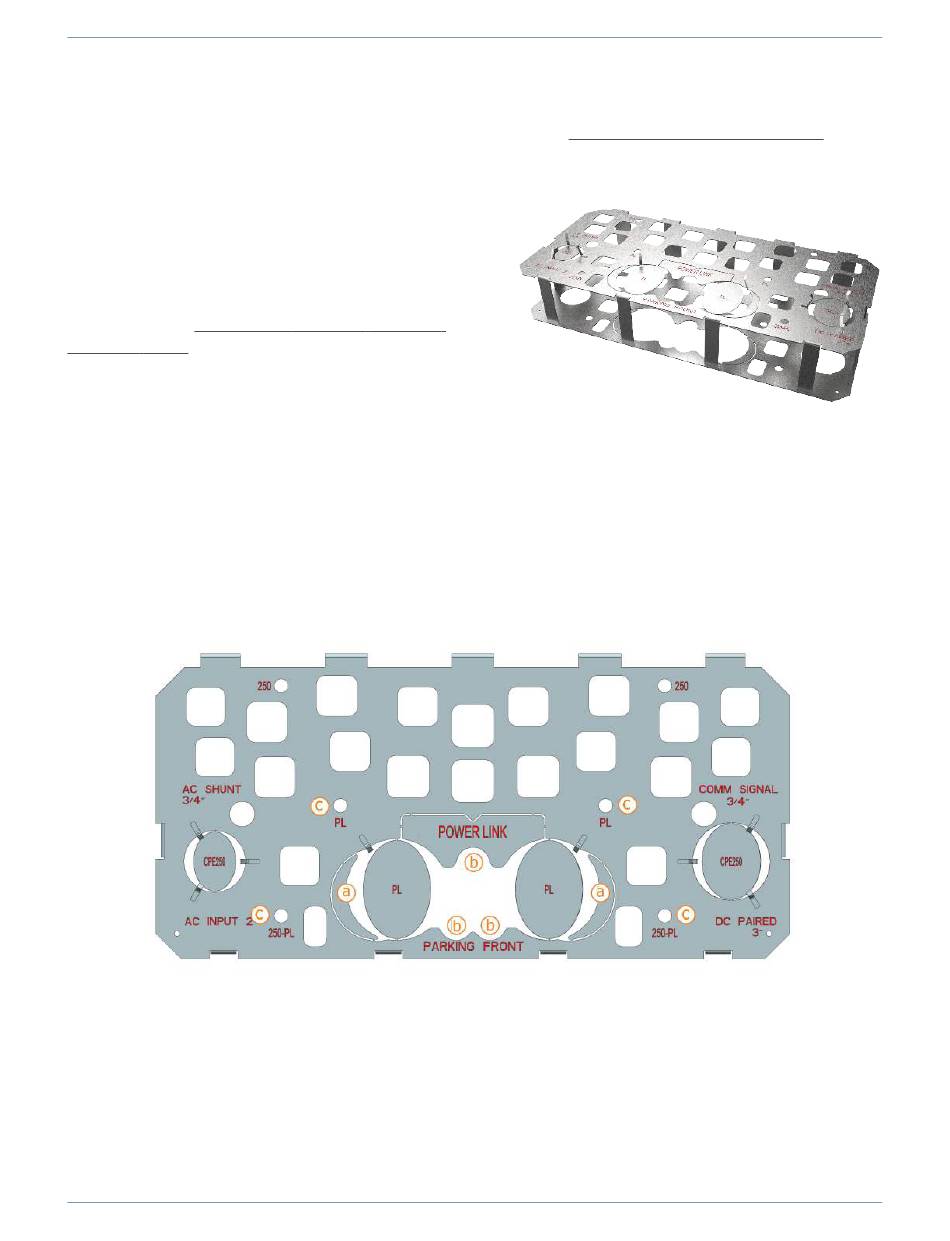

If using a Concrete Mount Template (CMT), the CMT,
conduits, and anchor bolts are positioned correctly:
a. DC input conductor (stub-up conduit entry only):
With two inputs, the Power Link 2000
l
supports two conduits up to 89 mm (3.5 in trade size)
With four inputs, the Power Link 2000 supports two conduits up to 89 mm (3.5 inch trade
l
size) and two conduits up to 64 mm (2.5 inch trade size)
b. 48 VDC and outdoor rated Cat6 Shielded Twisted Pair (STP) Ethernet: 21 mm (3/4 in trade size)
conduit (stub-up conduit entry only)
c. Power Link 2000 anchor bolts (x4) with 76 mm (3 in) exposed length above the concrete surface
