The Power Block has its own Concrete Mounting
Template (CMT), which ships separately. It is
assembled onsite just before pouring concrete.
a. Plates (x2)
b. Anchor bolts (x4) with fasteners (x8)
c. Rigid spacers (x9)
An overview of Power Block conduit and cable entry locations is shown below.

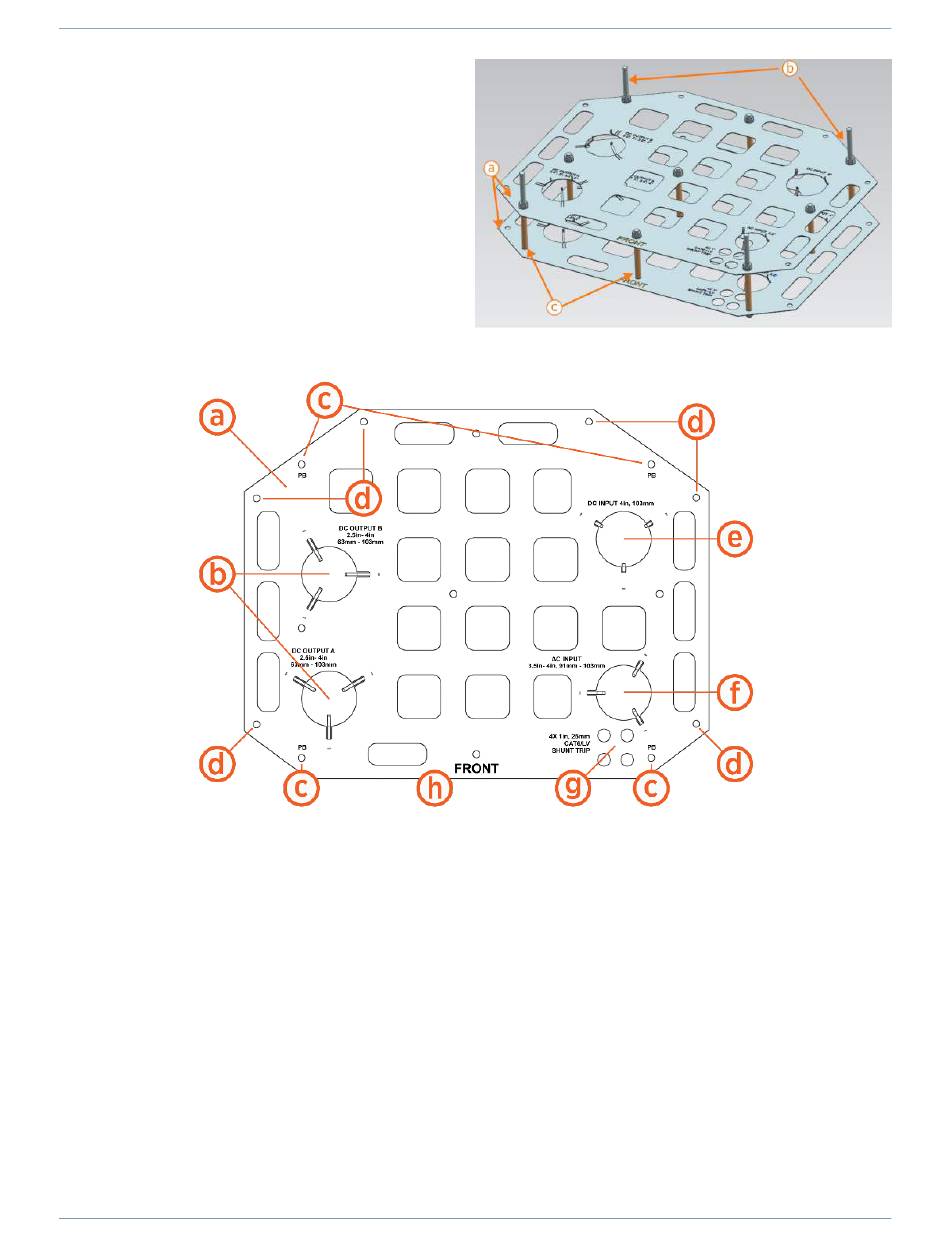

a. Power Block Concrete Mounting Template (CMT)
b. DC output options: 250, 350 or 500 A (stub-up conduit entry):
With two inputs, the Power Link 2000 supports two conduits up to 89 mm (3.5 in trade size)
l
With four inputs, the Power Link 2000 supports two conduits up to 89 mm (3.5 in trade size)
l
and two conduits up to 64 mm (2.5 in trade size).
c. M16 anchor bolts (x4) with 76 mm (3 in) above concrete
d. Surface Conduit Entry anchor positions (optional: x2 left, x2 rear, or x2 right)
e. DC auxiliary input (requires optional package): 103 mm (4 inch trade size) conduit
f. AC input: up to 103 mm (4 inch trade size) conduit
