Bollards
When bollards are required by regulation, needed for snowy areas, or needed for curbside spaces –
l
ensure bollard placement does not interfere with removing and replacing charge cables in the
station's holsters.
Try to minimise bollard interference with the movement of charge cables between the station and
l
the vehicle. Bollard height is recommended to be no higher than 914 mm (36 in) where needed.

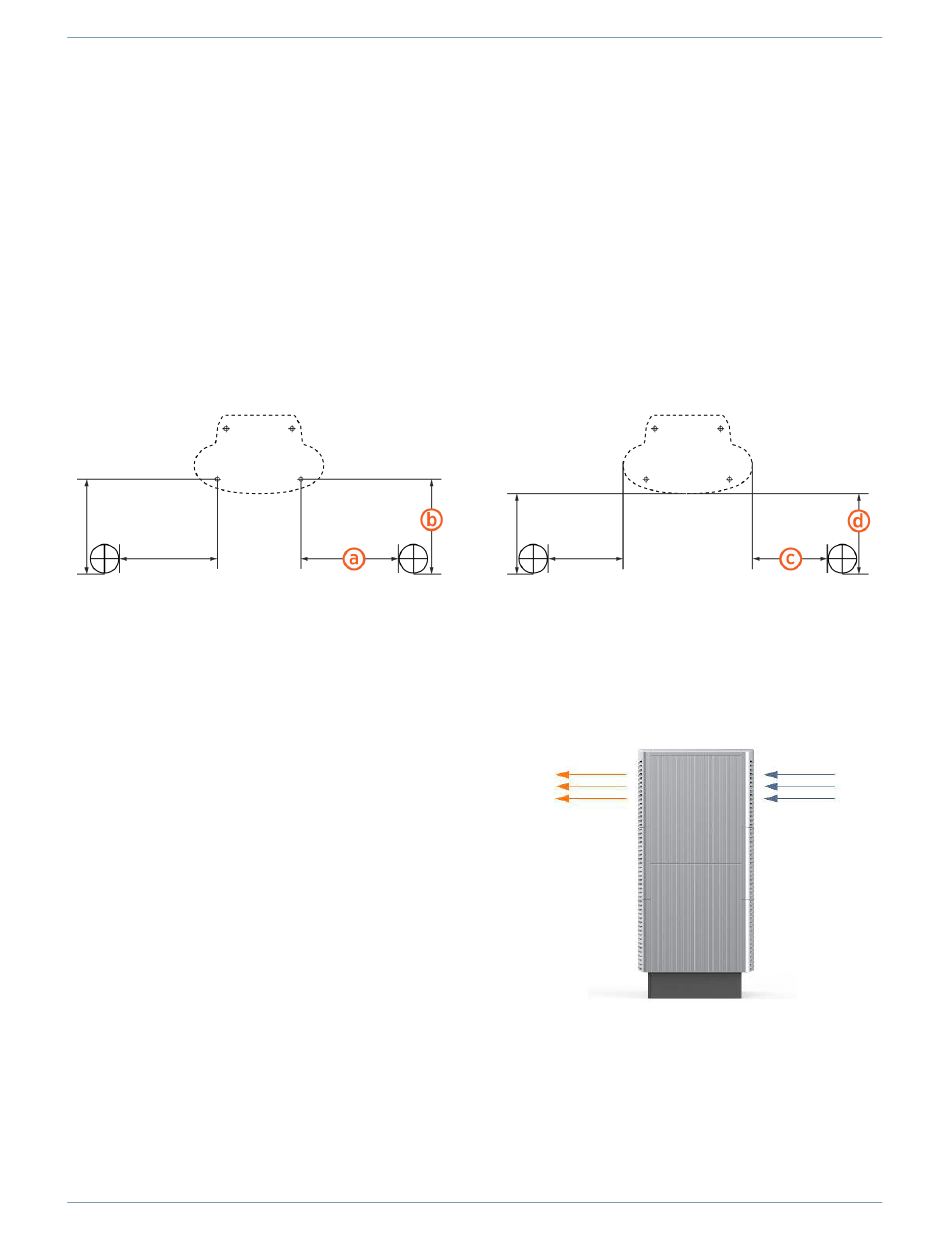

Follow the measurements listed for bollards placement:
l
a.
Anchor bolt to bollard inside edge: 254 mm (10 in)
b.
Anchor bolt to bollard front edge: 424 mm (16.7 in)
c.
Power Link 2000 side to bollard inside edge: 122 mm (4.8 in)
d.
Power Link 2000 front to bollard front edge: 305 mm (12 in)
Ventilation
Power Block
Intake vents are positioned at the front of the Power
Block (blue arrows), and exhaust vents are at the rear
(orange arrows). When positioning multiple Power
Blocks, orient intake and exhaust to avoid recirculation.
Note:
Power Block requires 10 kW (34,000 BTU/hr) of
heat rejection.
