If the existing pad does not meet the specifications above, it must be inspected and approved by a
structural engineer for each component's dimensions and weight. If needed, give these structural design
specifications to the structural engineer for verification:

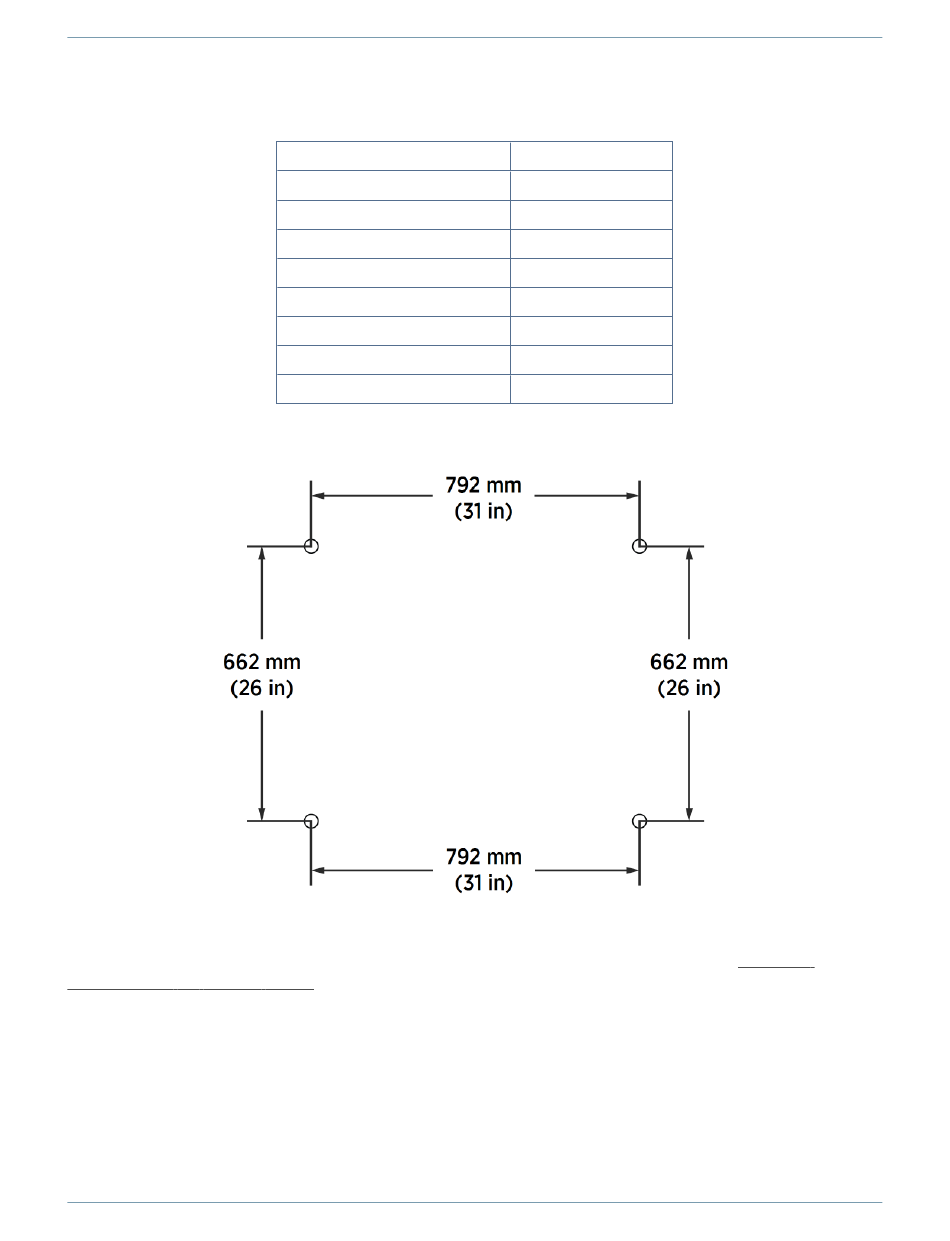

The Power Block anchor bolt pattern appears below.
Power Block input and output cables can either be run under the grade surface in trenches or they can be
run along the grade surface and protected by wireways, as described in this section and
Specifications for Surface
Product Weight
Product Height from Ground 2191 mm (86 1/4 in)
Product Width
Product Frontal Area
CG Height
Number of Anchor Bolts
Bolt Pattern
Anchor Bolt Size
Anchor Bolt Embedment
Mount.
Mounting Specifications - Concrete Pads
680 kg (1500 lbs)
1000 mm (40 in)
Height * Width
1000 mm (40 in)
4
See image below.
M16
229 mm (9 in)
Mounting
