Enclosed Rack Mounting

If you are installing the library in an enclosed rack, follow these instructions to replace
the current left and right side rack mounting brackets. If you are not installing your
library in an enclosed rack, proceed to Attach the Sliders on page 23.
Note:
You will be removing the standard rack mount brackets and
replacing them with enclosed rack mount brackets. The enclosed
rack mount brackets place the library deeper into the rack,
creating room for the door of the enclosed rack to close.
Remove the Robotic Rack Assembly
1. Make sure that the library power is off.
2. Open the library front door with the key.
3. Lower the transport tray to bottom of the robotic rack by gently raising the counter
weight (Figure 3).
Rack Mount Installation Guide

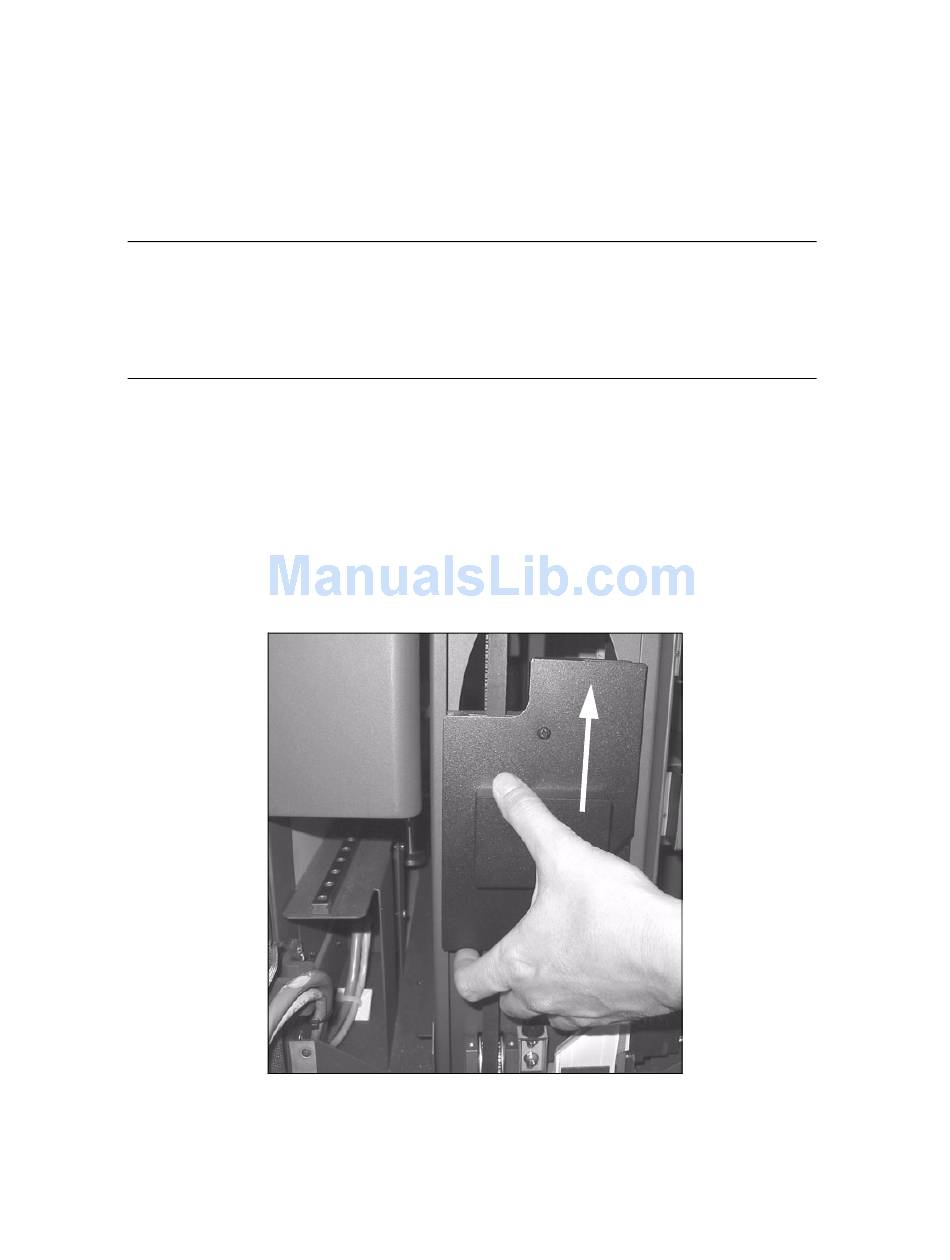

Figure 3 The robotic rack counter weight is raised.
