2. Use the #2 Phillips screwdriver to attach the back of the left rail to the rack with
three 10-32 x 1/2-inch screws (Figure 40).

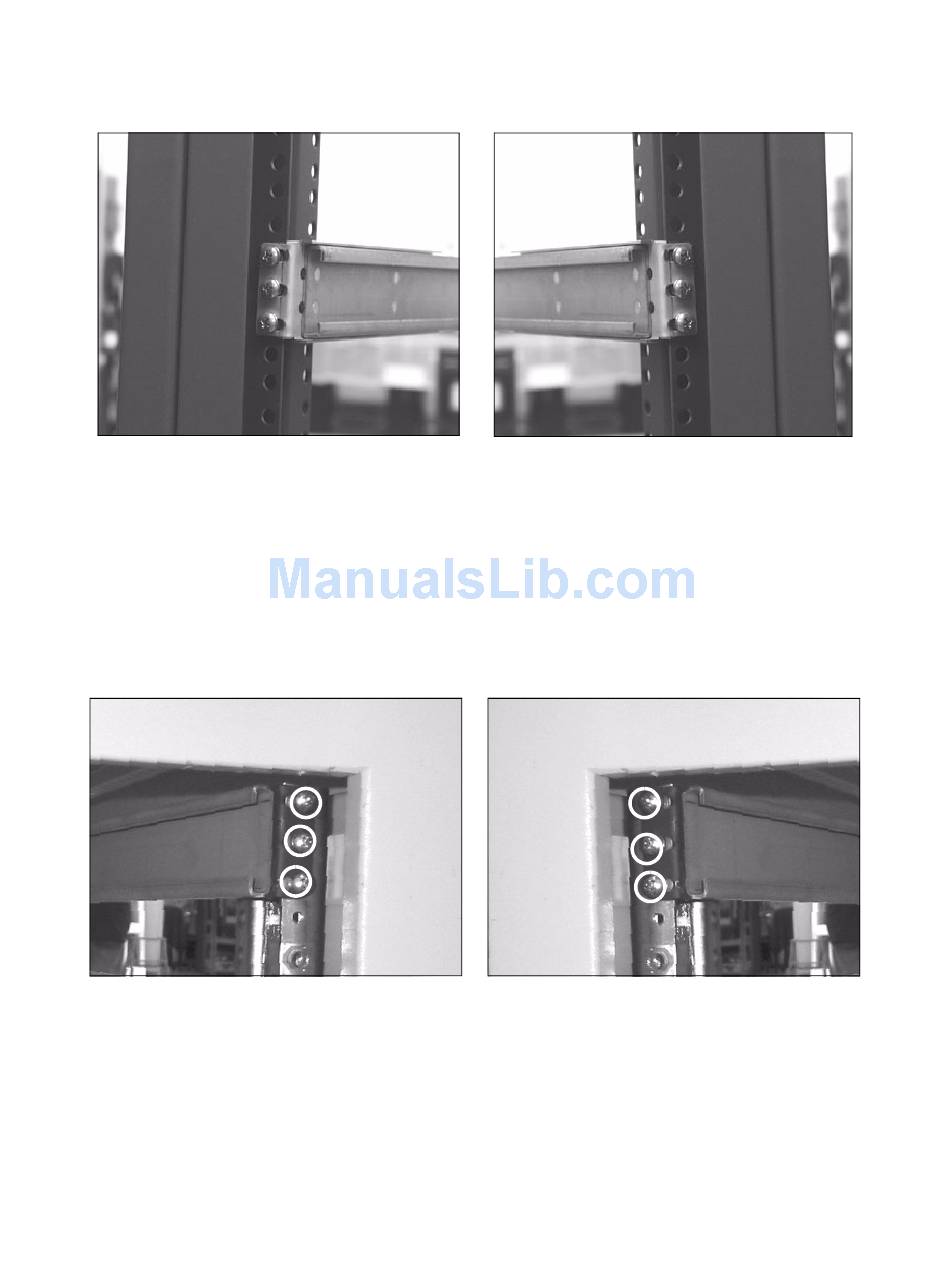

Figure 39 The back left rail.
3. After making sure the front rails are level with the back rails, attach the front rails
to the rack.
4. Use the #2 Phillips screwdriver to attach the front half of the right rail to the rack
with three 10-32 x 1/2-inch screws (Figure 41).
5. Use the #2 Phillips screwdriver to attach the front half of the left rail to the rack
with three 10-32 x 1/2-inch screws (Figure 42)
Figure 41 The front right rail screws.
Rack Mount Installation Guide
Figure 40 The back right rail.
Figure 42 The front left rail screws.
