10. Support the library door and use the #2 stubby Phillips screwdriver to remove the
two top hinge screws (Figure 22).
11. While still supporting the library door, use the #2 stubby Phillips screwdriver to
remove the two bottom hinge screws (Figure 23).
Note how the ground strap is attached to the hinge.
12. Carefully remove the library door and rack mount bracket.
13. Proceed to Remove the Right Rack Mount Bracket on page 19.
Rack Mount Installation Guide

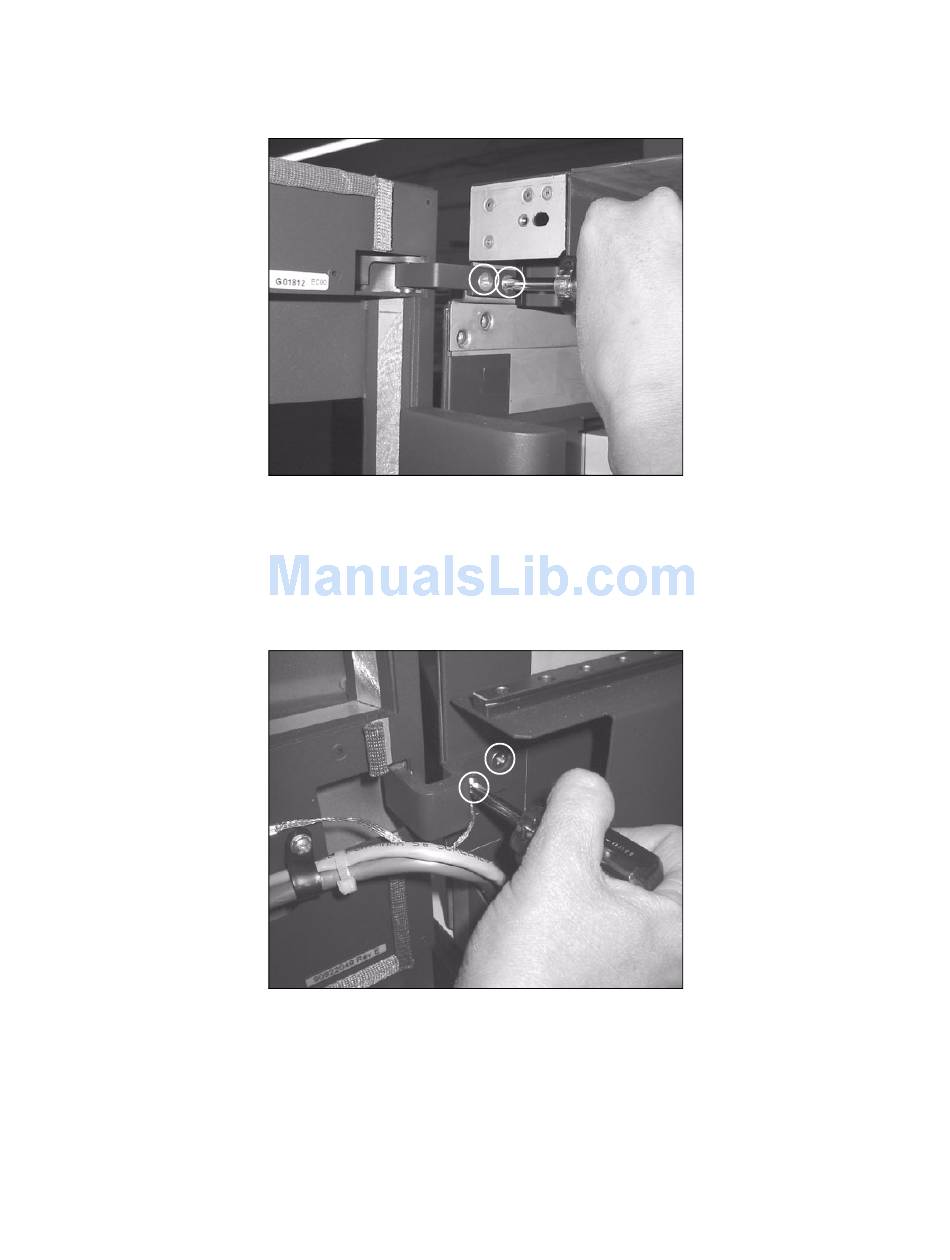

Figure 22 The two top hinge screws (Spectra 20K library shown).
Figure 23 The two bottom hinge screws with the ground strap
(Spectra 20K library shown).
