Remove the Right Rack Mount Bracket
1. Remove the transport tray alignment blocks and the shipping pins from the storage
tray, located beneath the drive bay (Figure 24 and Figure 25).

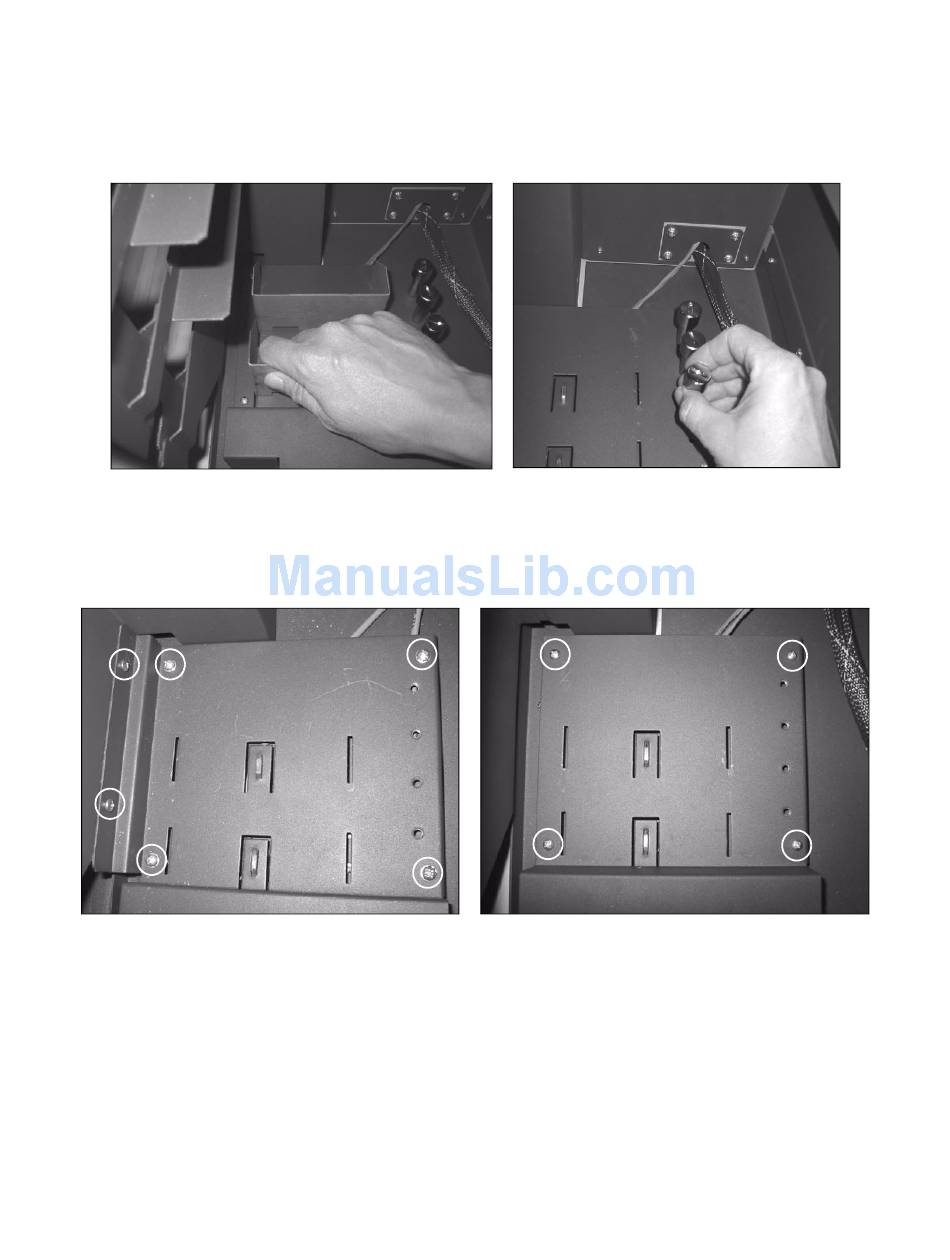

Figure 24 The alignment blocks.
2. Use the #2 Phillips screwdriver to remove the storage tray (Figure 26 and
Figure 27).
Figure 26 The storage tray screws (Spectra 12K library
shown).
Rack Mount Installation Guide
Figure 25 The shipping screws.
Figure 27 The storage tray screws (Spectra 20K library
shown).
