4. Use the #2 stubby Phillips screwdriver to remove the bottom bracket screw.
5. Support the library door and use the #2 stubby Phillips screwdriver to remove the
two top hinge screws (Figure 20).
6. While still supporting the library door, use the #2 stubby Phillips screwdriver to
remove the two bottom hinge screws.
Note how the ground strap is attached to the hinge.
7. Proceed to Remove the Right Rack Mount Bracket on page 19.
Rack Mount Installation Guide

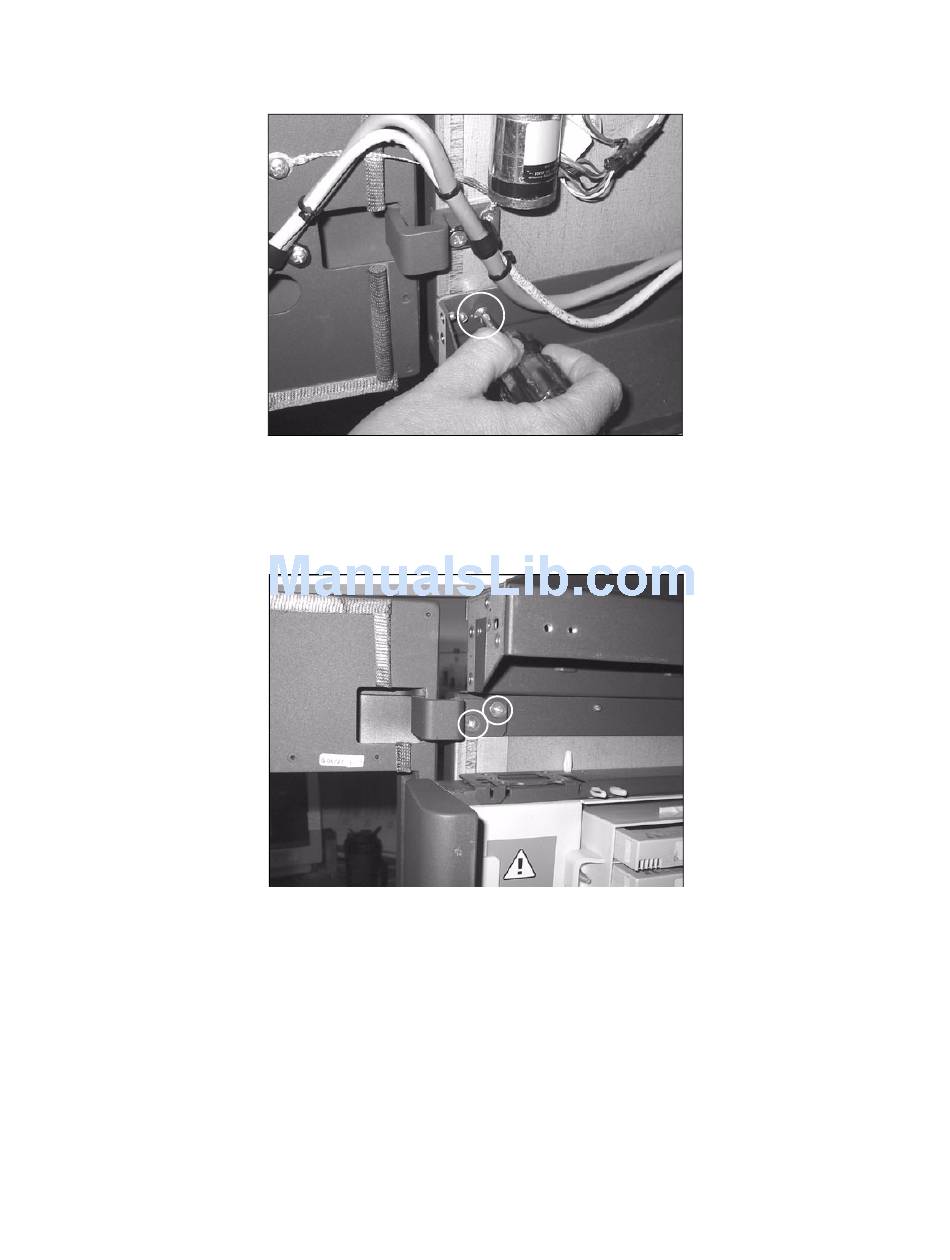

Figure 18 The bottom bracket screw (Spectra 12K library shown).
Figure 19 The two top hinge screws (Spectra 12K library shown).
