7. Enclosed racks only—make sure that there will be enough room for the library door
to close. Measure the distance from the adjustable mounting flanges (attached to
the inside of the enclosed rack) to the outside of the enclosed rack.
The distance from the enclosed rack brackets to the front of the library is 2-1/4
inches (5.72 cm). Adjust the mounting flange as necessary to accommodate the
library.
8. Proceed to Attach the Rails on page 26.
Rack Mount Installation Guide

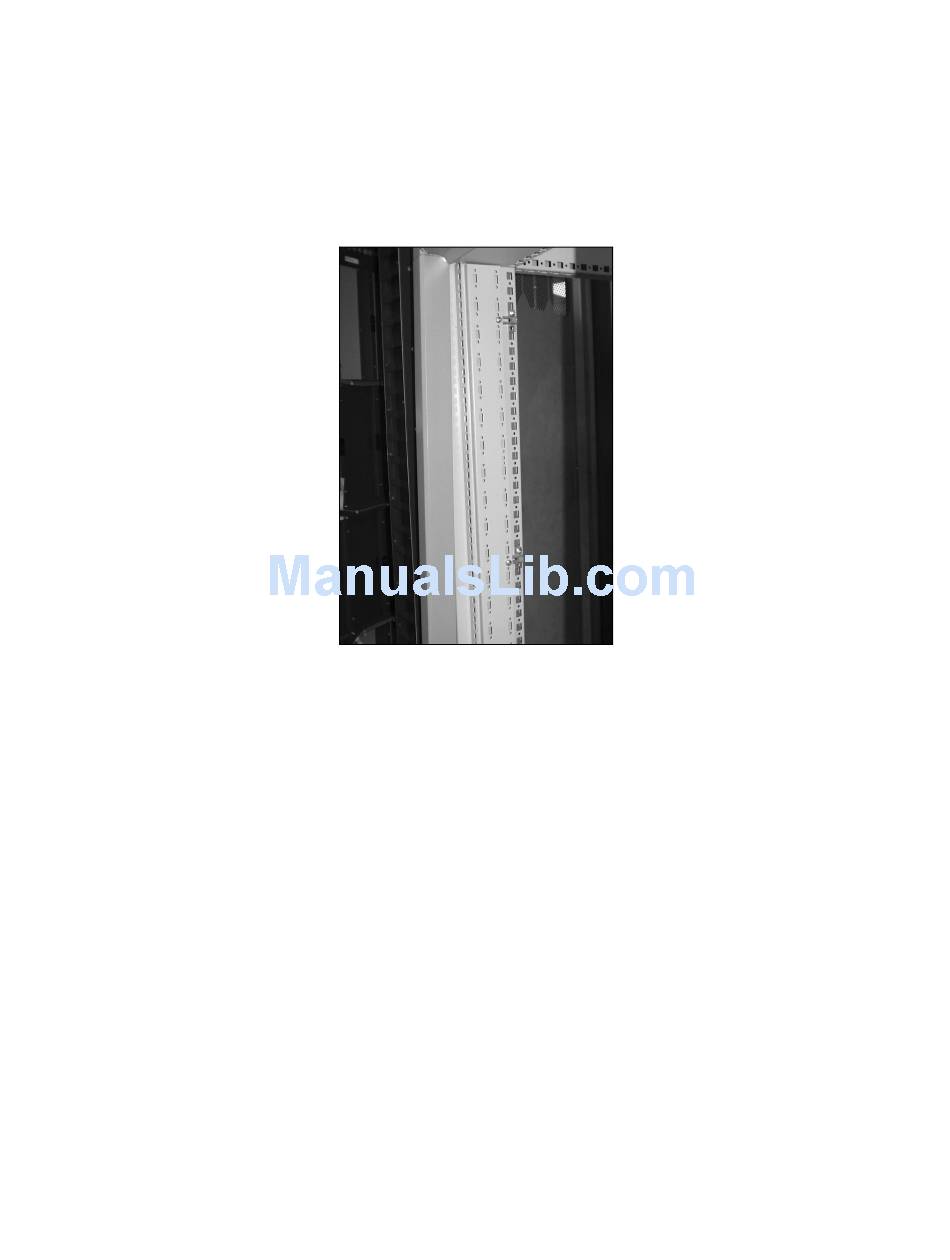

Figure 36 An enclosed rack and
adjustable mounting flanges.
