3. Use the #2 Phillips screwdriver to remove the bottom bracket screw (Figure 28).
4. Use the #2 Phillips screwdriver to remove the remaining three bracket screws
(Figure 29).
5. Carefully remove the rack mount bracket.
6. Proceed to Attach the New Rack Mount Brackets on page 21.
Rack Mount Installation Guide

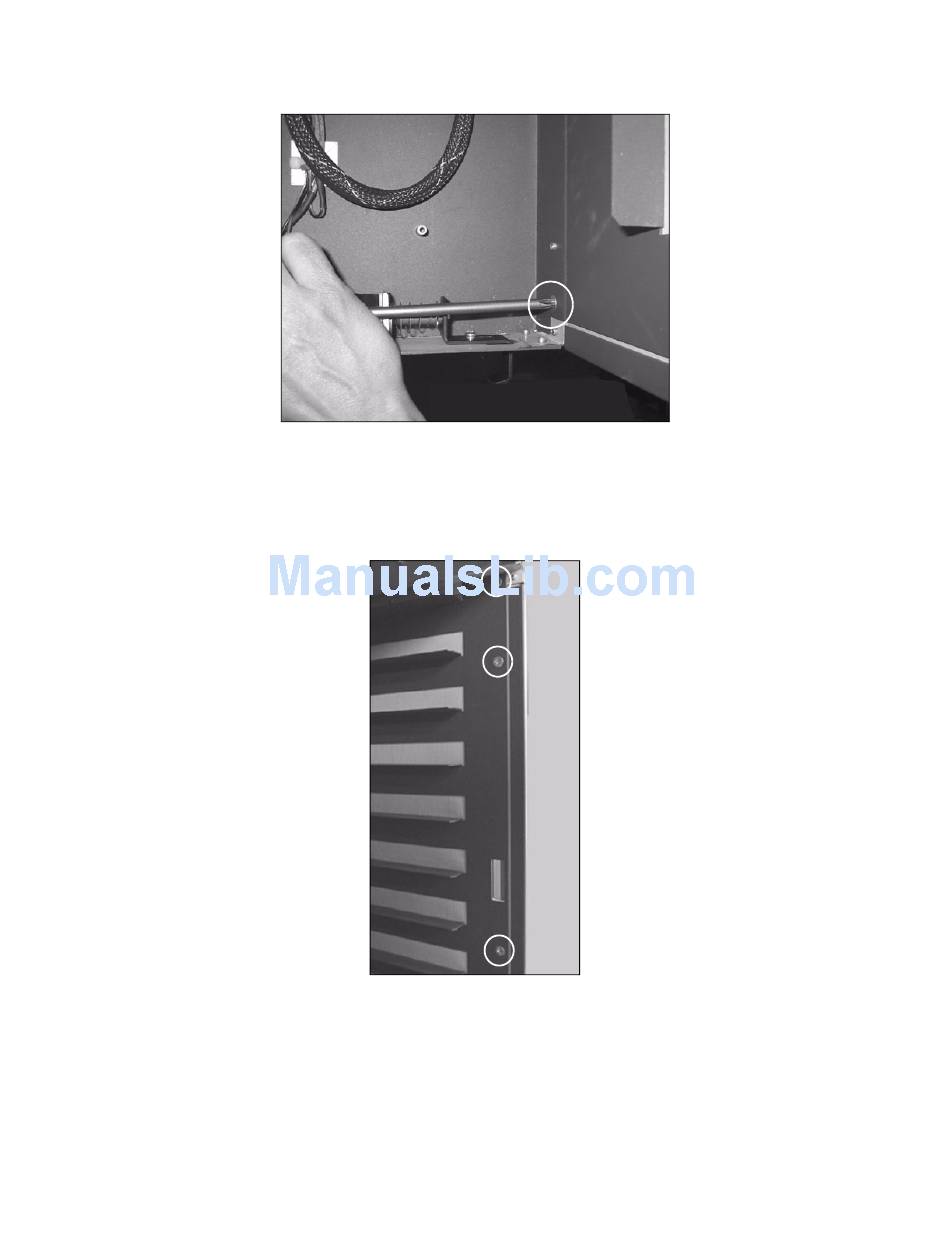

Figure 28 The bottom bracket screw.
Figure 29 The upper three
bracket screws.
