8. Unplug the 25-wire black connector at the bottom front of the robotic rack

assembly (Figure 9).

9. Spectra 20K libraries only—using the flat head screwdriver, remove the three cone

head screws that hold the robotic rack to the drive slot assembly (Figure 10).

Rack Mount Installation Guide

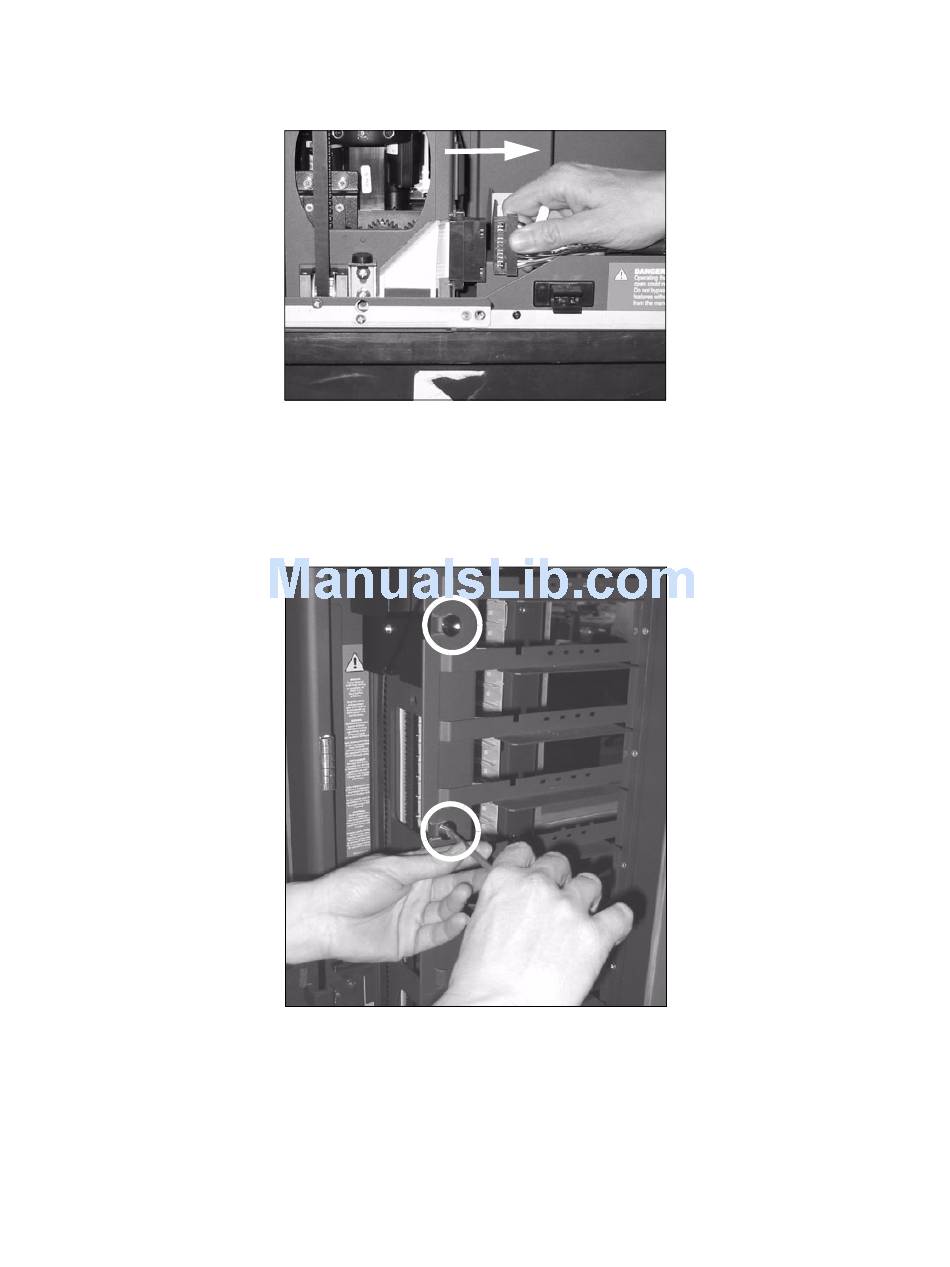

Figure 9 The 25-wire black connector (Spectra 20K library

shown).

Figure 10 The drive slot assembly with the cone head

screws circled. The third cone head screw is out of view.
