8. Use the #2 stubby Phillips screwdriver to remove the two top bracket screws

(Figure 20).

9. Use the #2 stubby Phillips screwdriver to remove the bottom bracket screw

(Figure 21).

Rack Mount Installation Guide

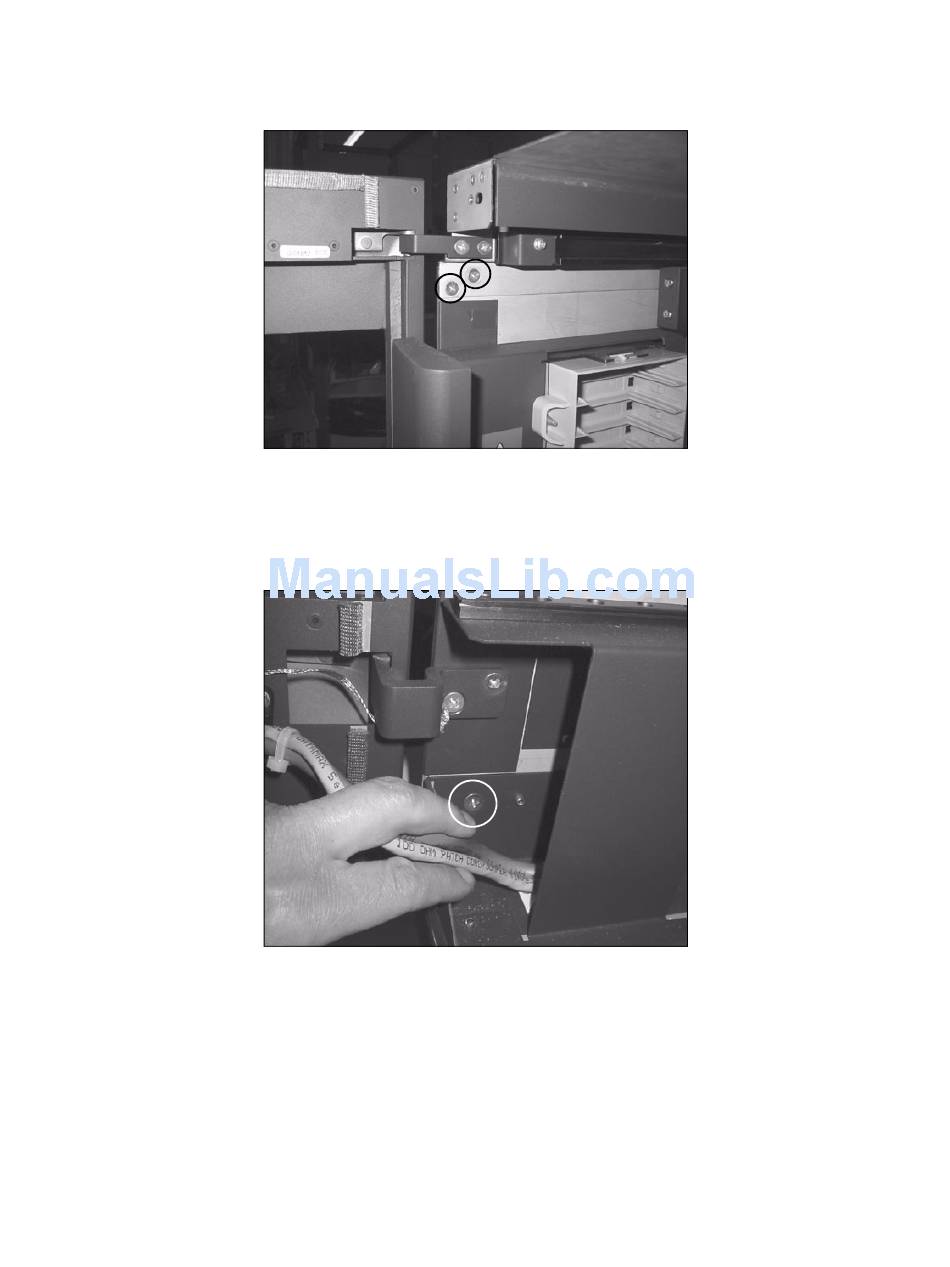

Figure 20 The two top bracket screws (Spectra 20 library shown).

Figure 21 The bottom bracket screw (Spectra 20K library shown).
