You will also need:
• A #2 Phillips screwdriver
• A #2 stubby Phillips screwdriver
• An adjustable wrench
• A tape measure
• The library front door key
Rack Dimensions
The rack mount kit comes with an expandable rail to account for unique rack depth
dimensions. If you know the depth dimension of your rack, you can use this chart to
expand the rail. For example, if you need a depth of 27.83 in. (70.7 cm) you would
attach the rail with four screws using holes slots 1 & 5.

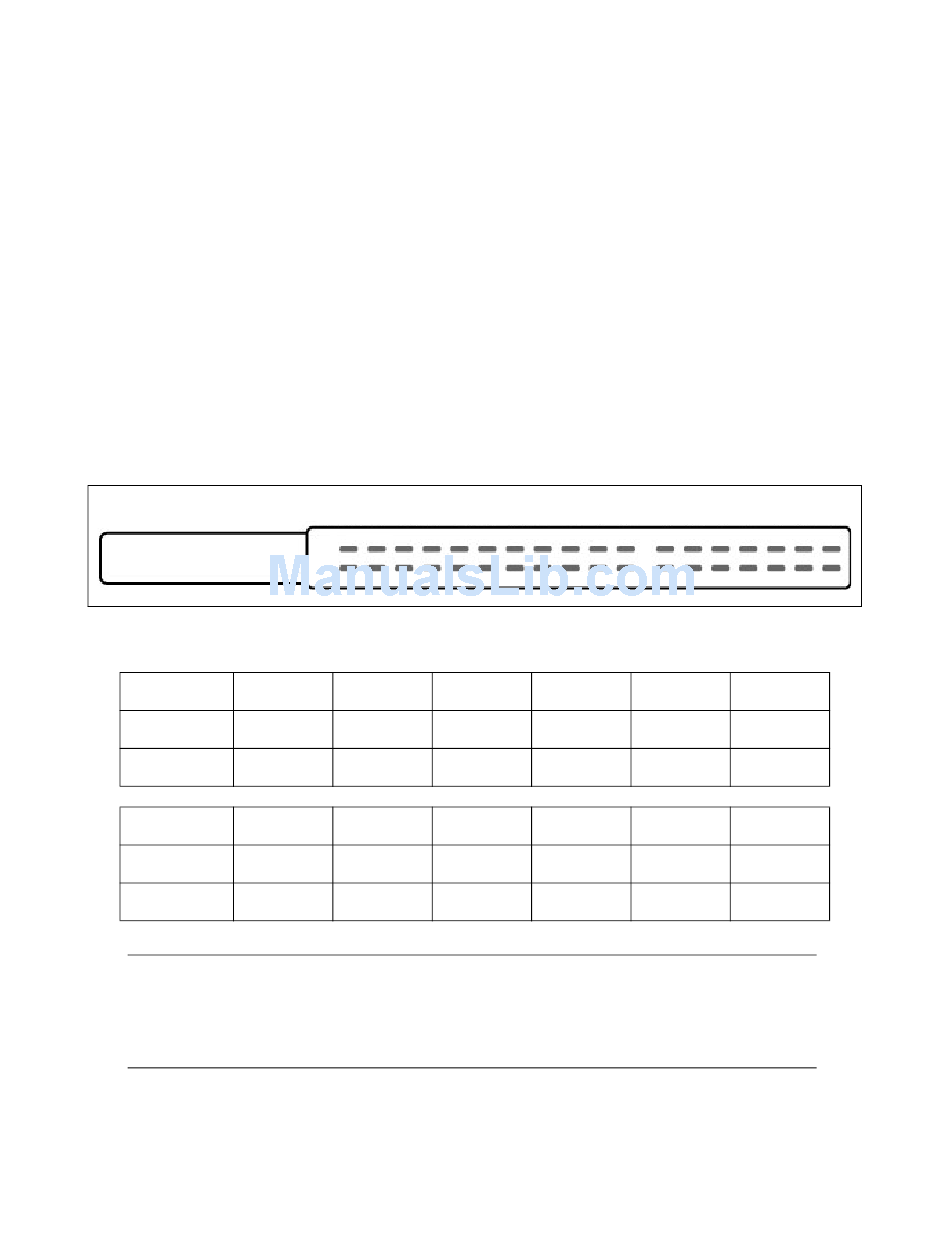

Figure 1 The expandable rack rail
Holes 1 & 5
Length (in.) 27.83-28.33
Length (cm) 70.7-71.96
Holes 7 & 11
Length (in.) 33.83-34.33
Length (cm) 85.9-87.2
Warning:
Do not extend the rack rails to holes 17 and 18—the rack rails
will not be able to support the weight of the library at full
extension.
Rack Mount Installation Guide
18 17 16 15 14 13 12
2 & 6 3 & 7
28.83-29.33 29.83-30.33
73.23-74.5 75.8-77.0
8 & 12 9 & 13
35.08-35.58 36.08-36.58
89.1-90.4 91.6-92.9
5
9 8 6
11 10 7
4 & 8 5 & 9
30.83-31.33 31.83-32.33
78.3-79.6 80.8-82.1
10 & 14 11 & 15
37.08-37.58 38.08-38.58
94.2-95.5 96.7-98.0
1
5 4 3 2
6 & 10
32.83-33.33
83.4-84.7
12 & 16
39.08-39.58
99.3-100.5
