10. Using the #2 Phillips screwdriver, loosen the screws that hold the robotic rack

assembly to the chassis: first the top, then the bottom (Figure 11).

Note:

Some Spectra 12K library models have only four screws attaching

the robotic rack to the chassis.

Rack Mount Installation Guide

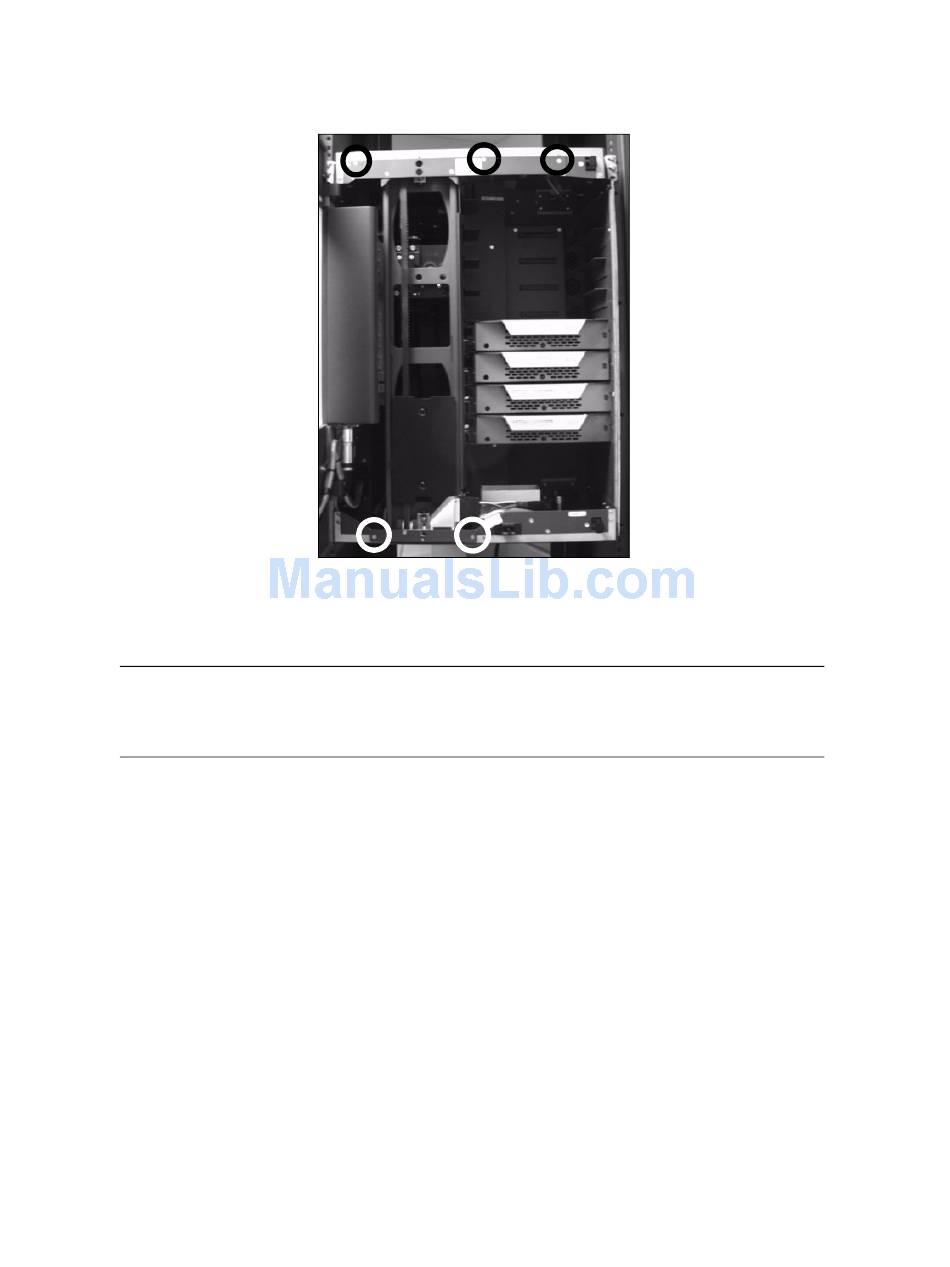

Figure 11 The robotic rack with the screws

circled (Spectra 12K library shown).
