On each connector, carefully:
–
Lightly pull the white plastic (1) to insert the contact side of the FFC towards the board (2).
–
Push the white plastic to hold the FFC(3).
UM3359 - Rev 2

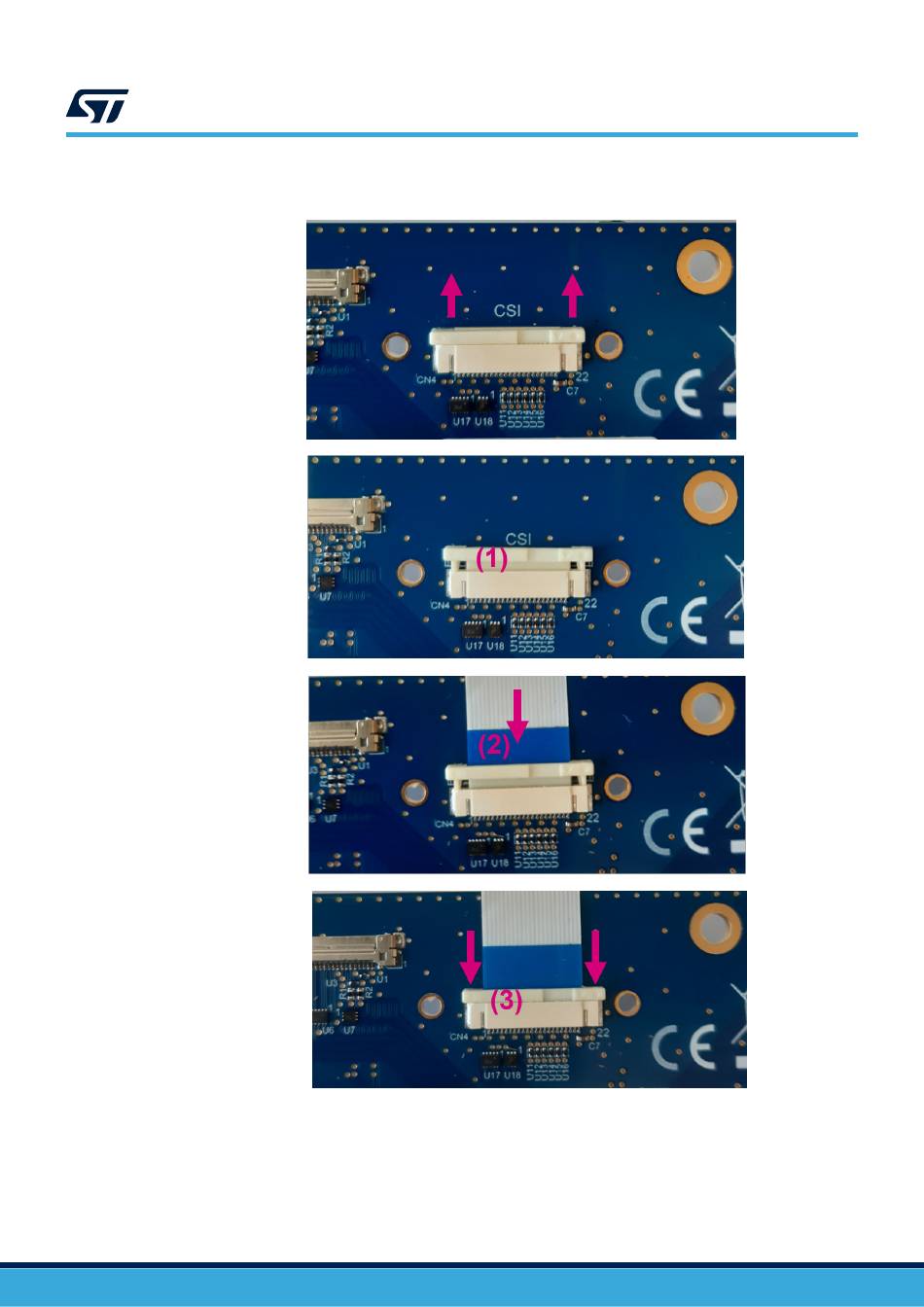

Figure 19.
Connecting B-CAMS-IMX to the target STM32 board
UM3359
Board functions
page 32/56
