7.13 CSI
7.13.1 Description
The STM32MP257F-EV1 Evaluation board provides a CSI connector (CN4) to plug an external camera module.
The B-CAMS-IMX camera module, not included in the package, can be plugged into CN4.
• The B-CAMS-IMX camera module provides a 5‑Mpx image sensor, an inertial motion unit, and a Time-of-
Flight sensor
• This camera module can be purchased at
• Complete documentation can be found at www.st.com.
• Make sure that the target STM32 board is not powered.
• Find the camera connector on the target STM32 board (example
(CN1 Figure
UM3359 - Rev 2

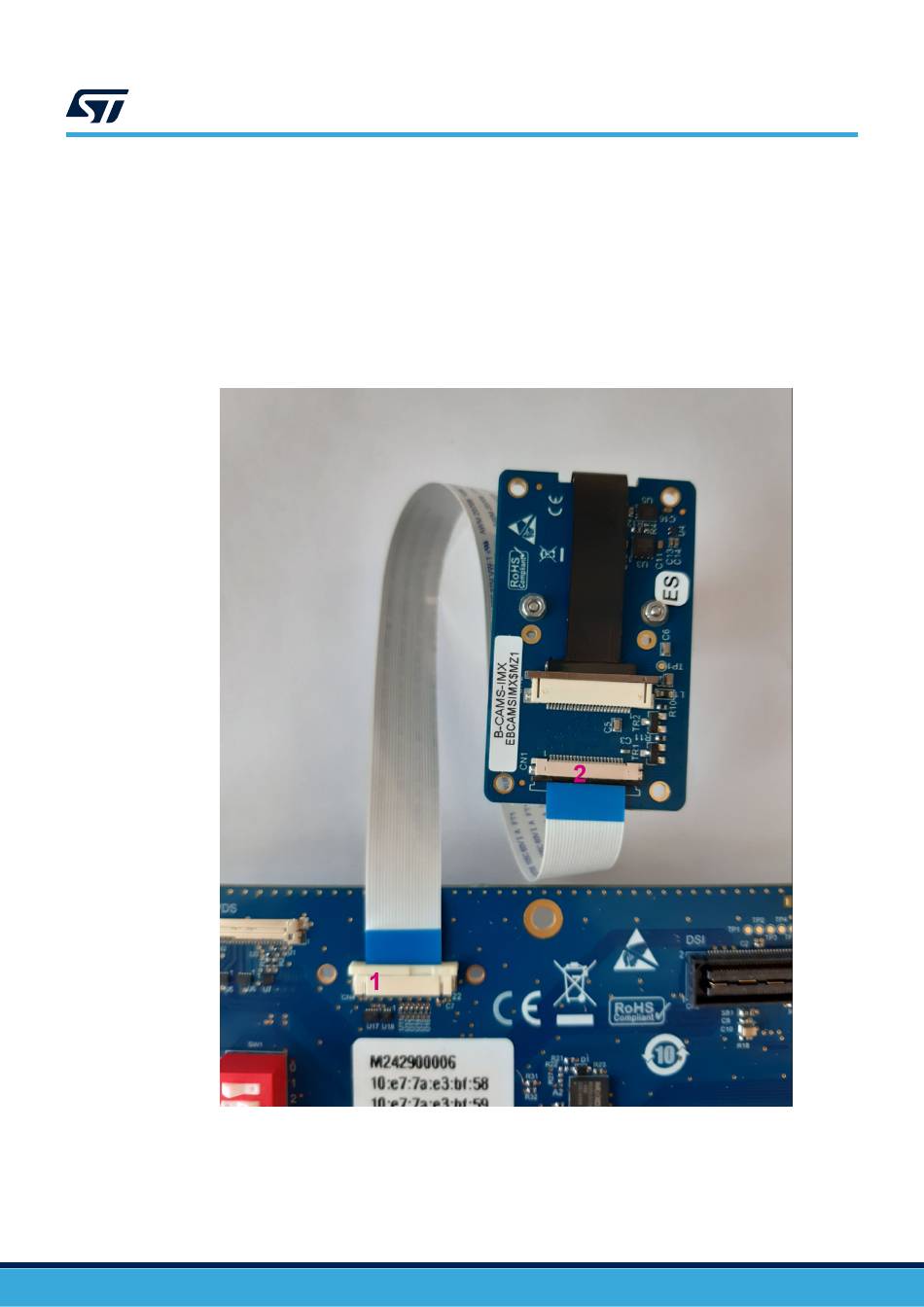

Figure 18. B-CAMS-IMX connected to a target STM32 board
18.2).
www.st.com with the B-CAMS-IMX
Figure
UM3359
Board functions
order code.
18.1) and the one on MB1854
