7.12.3

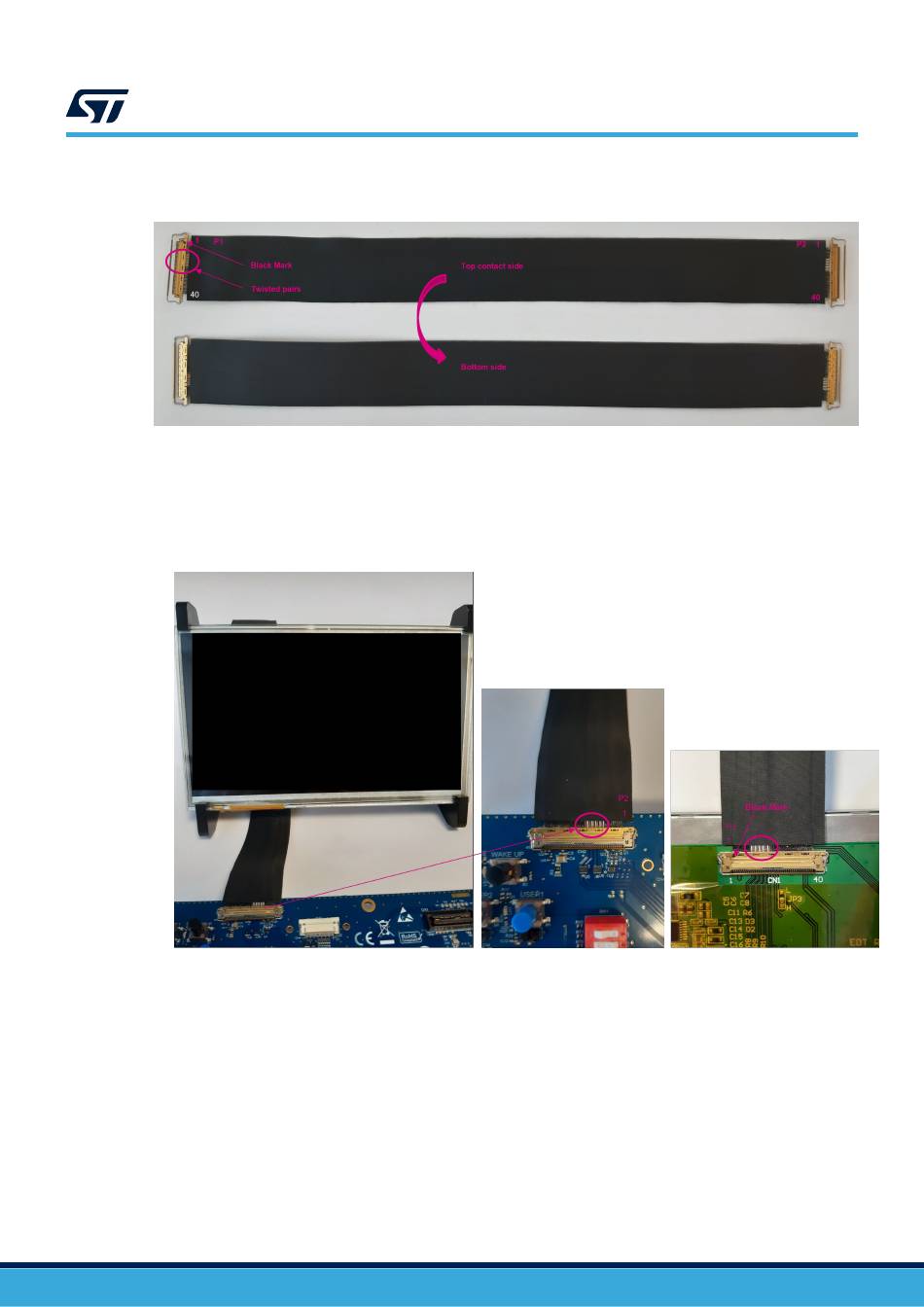

How to connect the LVDS display?
•
Check the above cable orientation thanks to the black mark and the white twisted pairs.
•
Find the LVDS port on the Evaluation board (CN2) and the one on the display (CN1). One FPC is provided
in the EV box.
•
On each port, insert the cable as described:
UM3359 - Rev 2
Figure 16.
Step 1
Figure 17.
Step 2
UM3359
Board functions
page 30/56
