UM3359
Hardware layout and configuration
6.3
Mechanical drawing

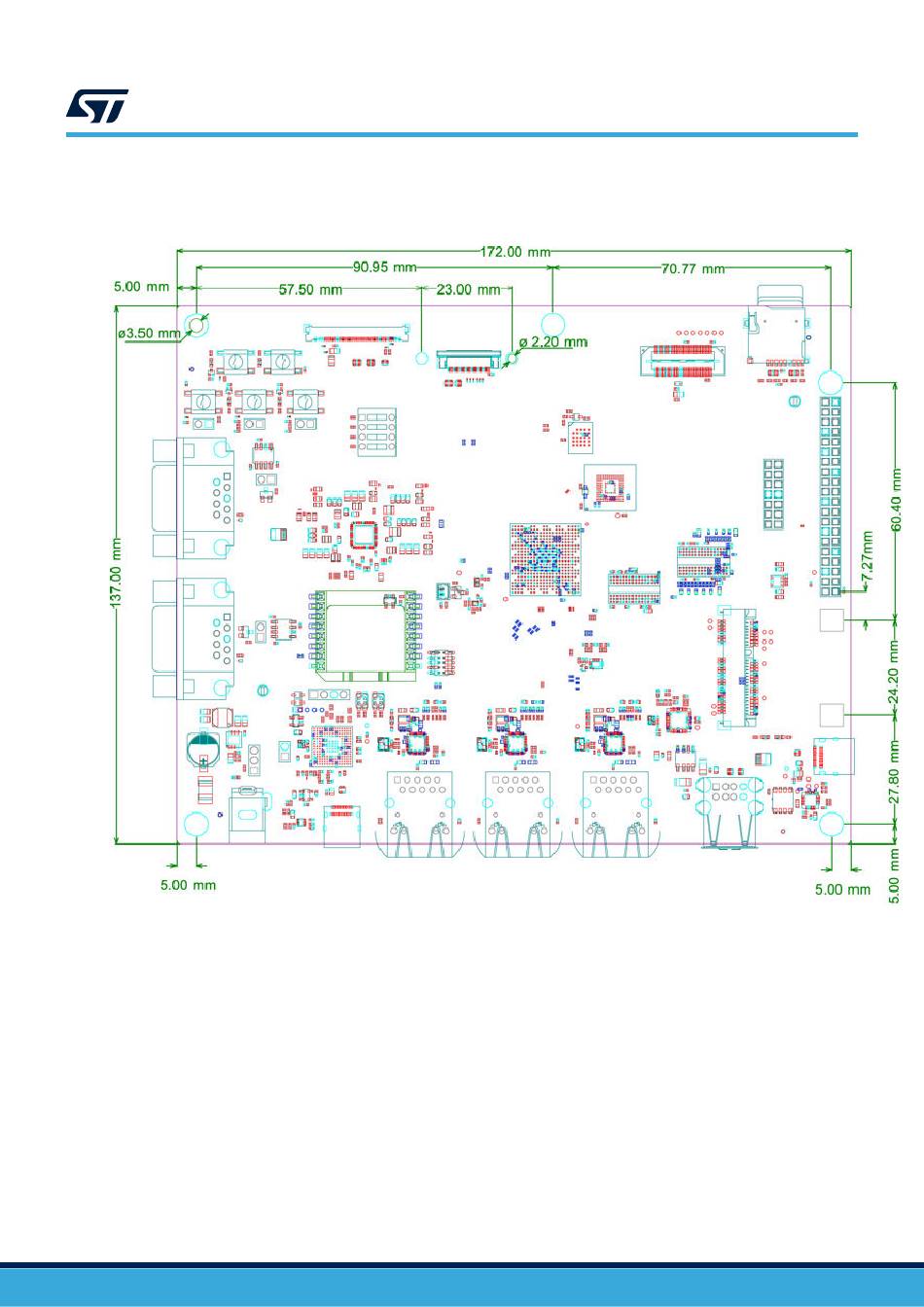

Figure 6.
STM32MP257F-EV1 Evaluation board mechanical dimensions (in millimeters)
UM3359 - Rev 2
page 10/56
