Field Service Guidelines
Removing the Keyboard
1.
Make sure the system is powered off and that no peripheral devices are attached.
2.
Locate and remove the two Phillips-head screws on the bottom of the
NEC Versa that secure the speaker caps. Put the screws in a safe place for
reassembly.

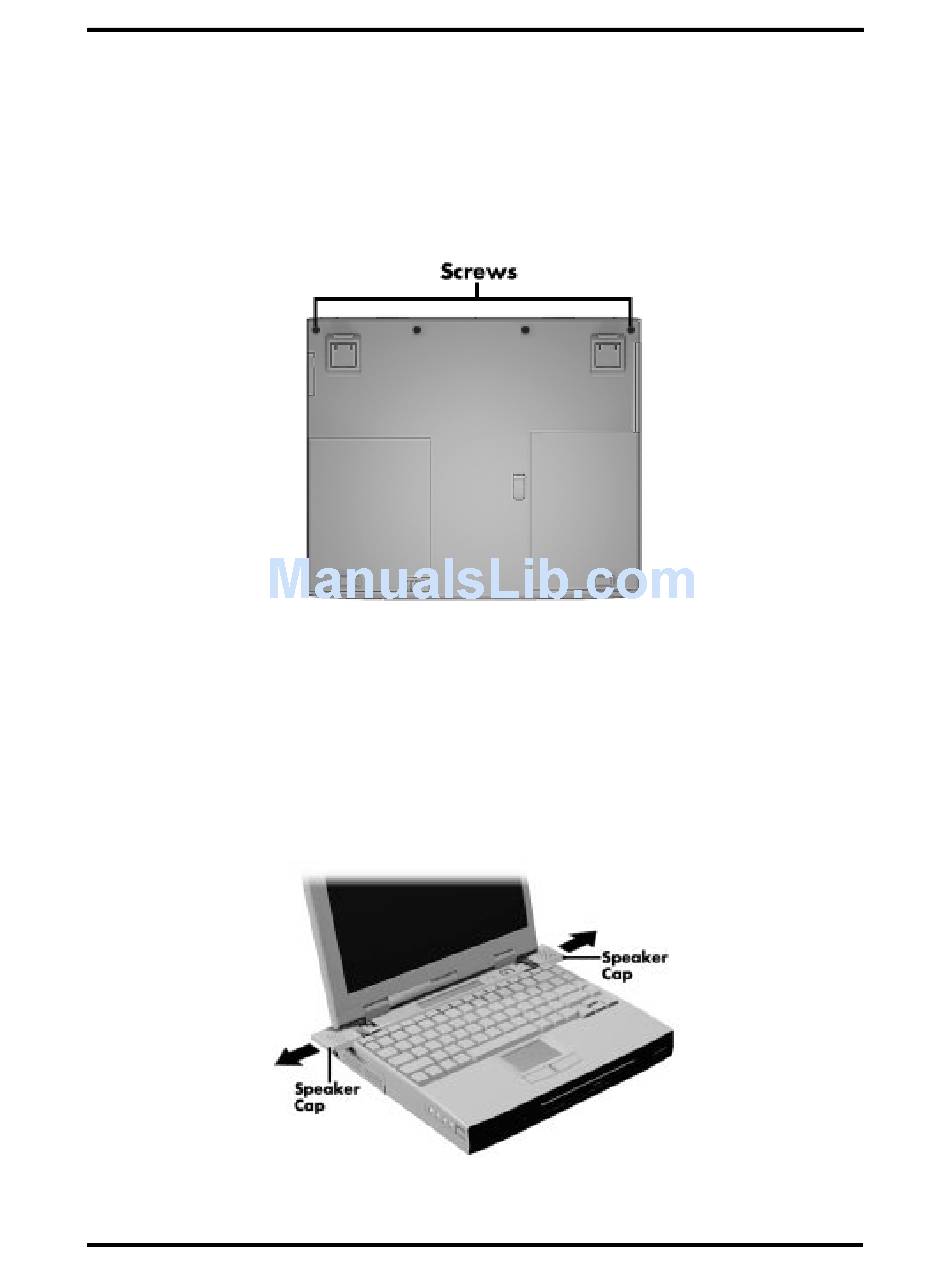

Figure 4-7 Locating the Speaker Cap Screws
3.
Turn the NEC Versa over and open the LCD panel.
4.
Locate the two speaker caps, slide each one toward the outside edge of the sys-
tem, and remove it.
Figure 4-8 Removing the Speaker Caps
