LCD Status Bar

The NEC Versa status bar is located in the upper center of the keyboard panel. Figure 2-11
shows the status bar.

Status Icons

The NEC Versa uses ten icons to let the user determine system status, as follows.
T
Suspend — appears when the system is in Suspend mode.
T
Power Management — shows current power management mode.
T
Diskette Drive — appears when the NEC Versa writes data to, or retrieves data
from a diskette.
T
Hard Disk — shows when the NEC Versa writes data to, or retrieves data from
the hard disk drive.
T
Caps Lock — appears when Caps Lock is used.
T
Scroll Lock — indicates that Scroll Lock is used.

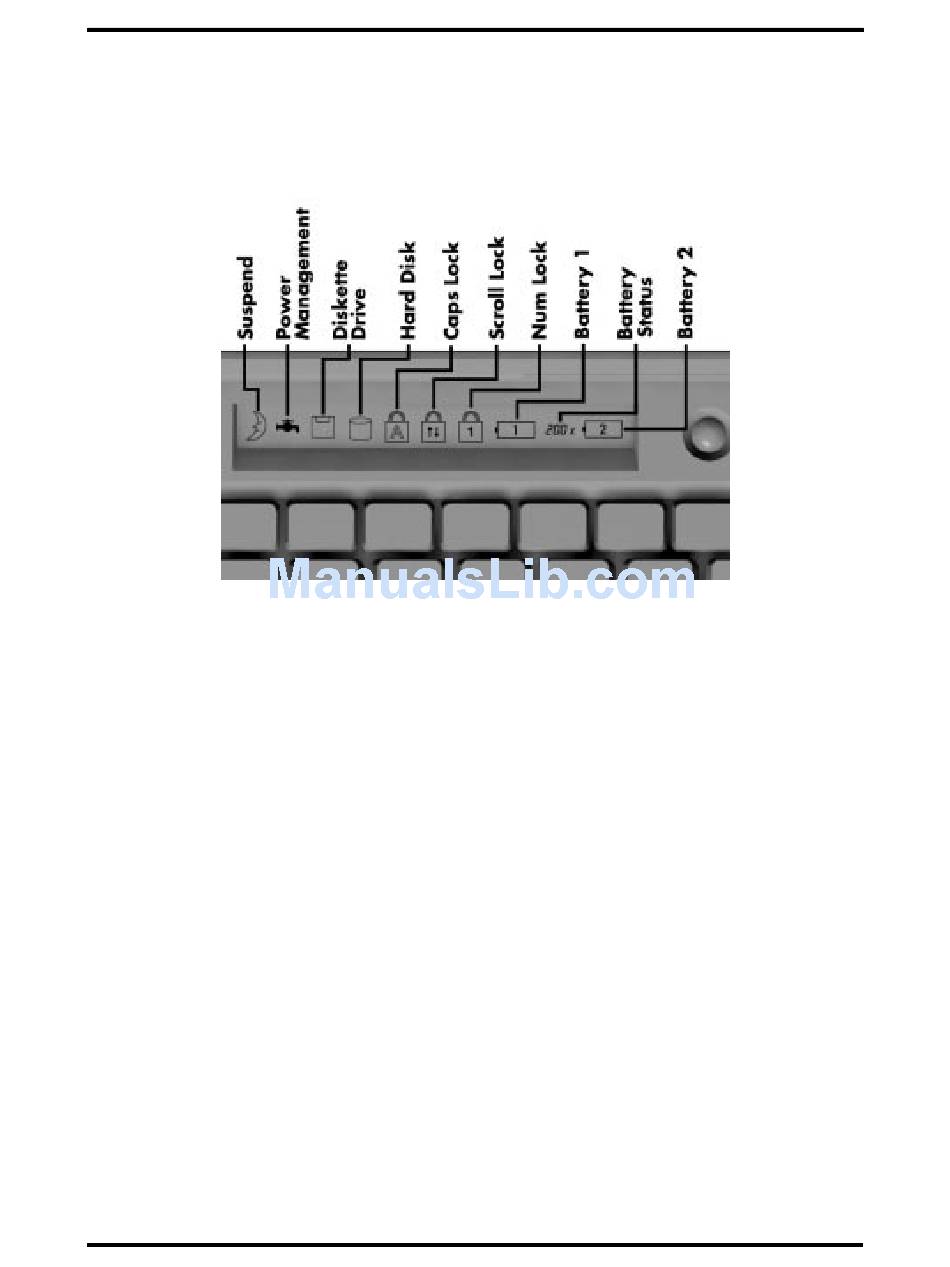

Figure 2-11 Status Bar Location
Setup and Operation 2-13
