Infrared (IR) Assembly

The IR assembly consists of a small board with two infrared LEDs, connected to the Graph
board at connector P10. The board allows the NEC Versa computer to communicate with
other infrared-ready computers. For example, the infrared port allows the user to transfer
files between the NEC Versa and an IR-equipped computer, or print to an IR-equipped
printer without using cables.
HARDWARE OVERVIEW—RIGHT SIDE
Review the following section for a description of the hardware on the right side of the NEC
Versa.
T
Kensington Lock — Gives the user the option to add an optional Kensington
Lock.
T
Hard Disk Drive Bay Cover Release Latch — The hard disk drive bay contains
the removable hard disk drive.
To access the hard disk drive, power off the system, turn the system over, remove
the hard disk drive bay cover screw and lift up the hard disk drive bay cover re-
lease latch while pushing the cover away from the system.

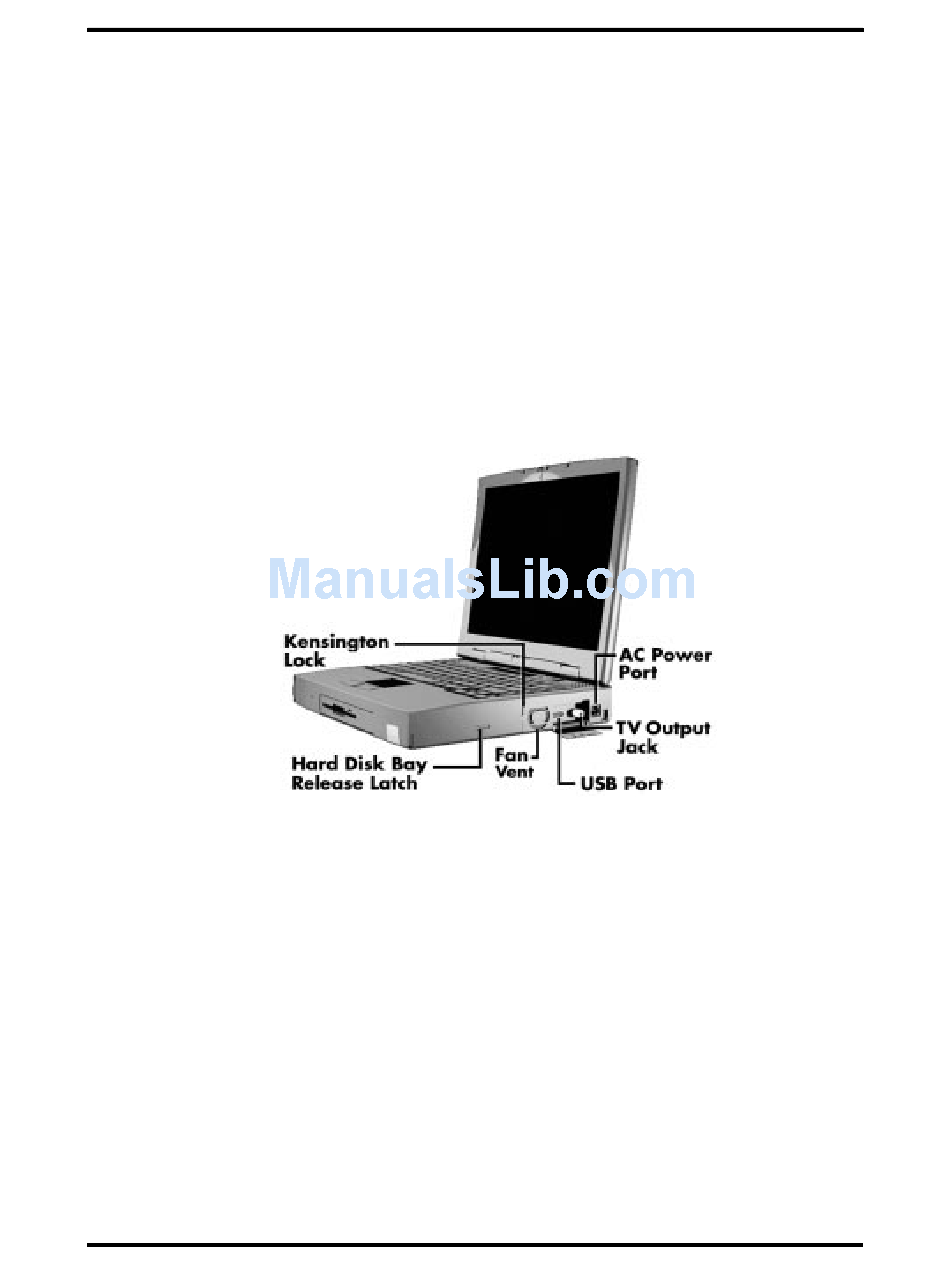

Figure 1-8 Right Side Features
