Field Service Guidelines

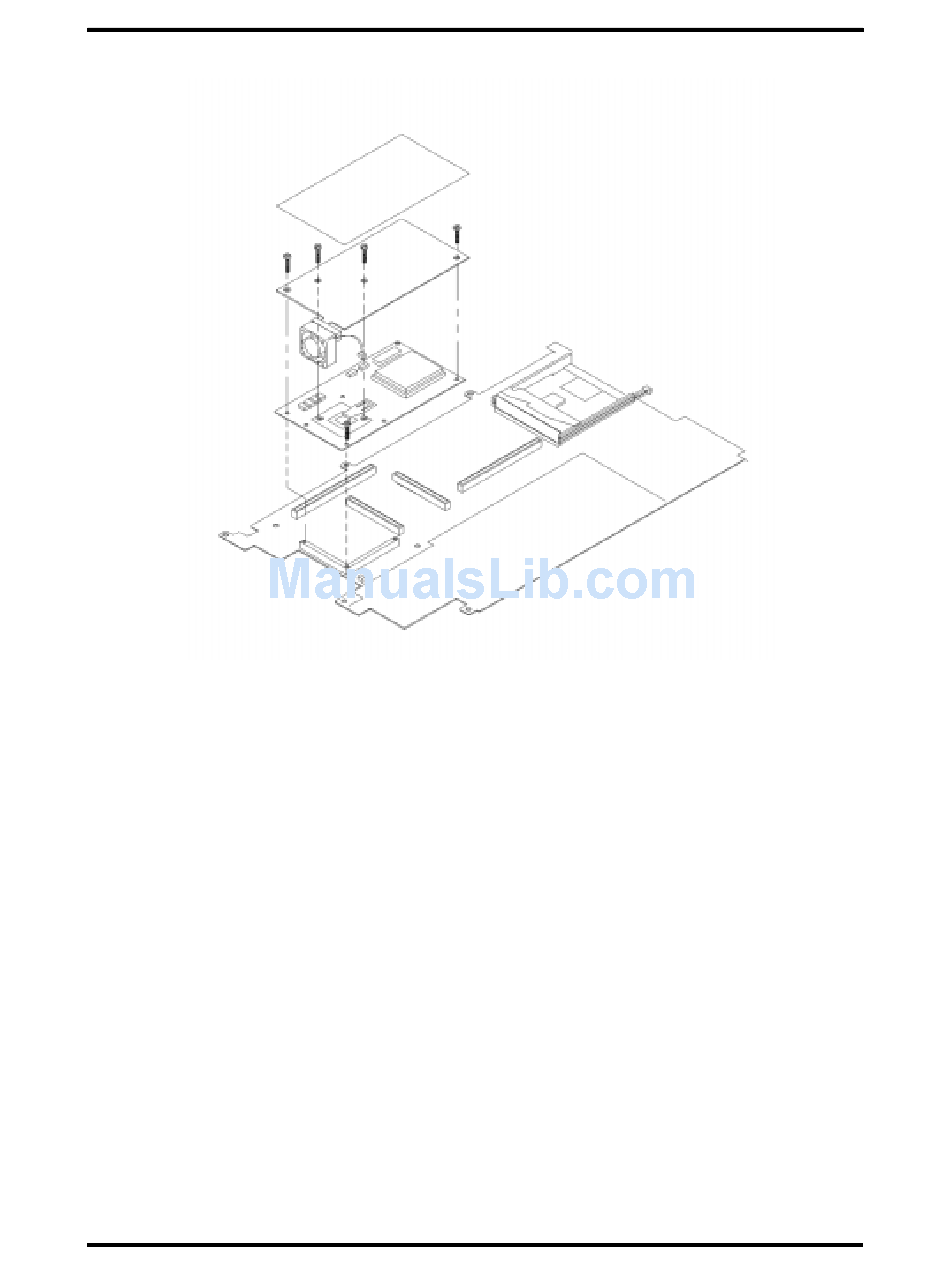

Figure 4-21 Removing the CPU Board from the Graph Board
I/O Board
Remove the I/O board as follows.
Remove the following as previously described:
1.
T
LCD
T
top cover
T
keyboard
T
LCD status bar
T
Sound board
T
Bridge battery, CMOS battery, buzzer
T
Graph board.
