2.
Remove the 5 screws securing the I/O board to the bottom base unit.
3.
Lift the I/O board up and out of the base unit, being careful to note the position of
the two spacers.
ILLUSTRATED PARTS BREAKDOWN
The next section contains the NEC part numbers and illustrated parts breakdown (IPB) fig-
ure for the NEC Versa. The following figure shows the system exploded view diagram, or
IPB. Table 4-3 lists field-replaceable parts and corresponding part numbers.
Review the entire exploded diagram to see how each part is connected or assembled. Try to
sub-divide the entire diagram paying particular attention to the LCD Assembly, Top Unit
Cover Assembly, and the Base Unit Assembly.

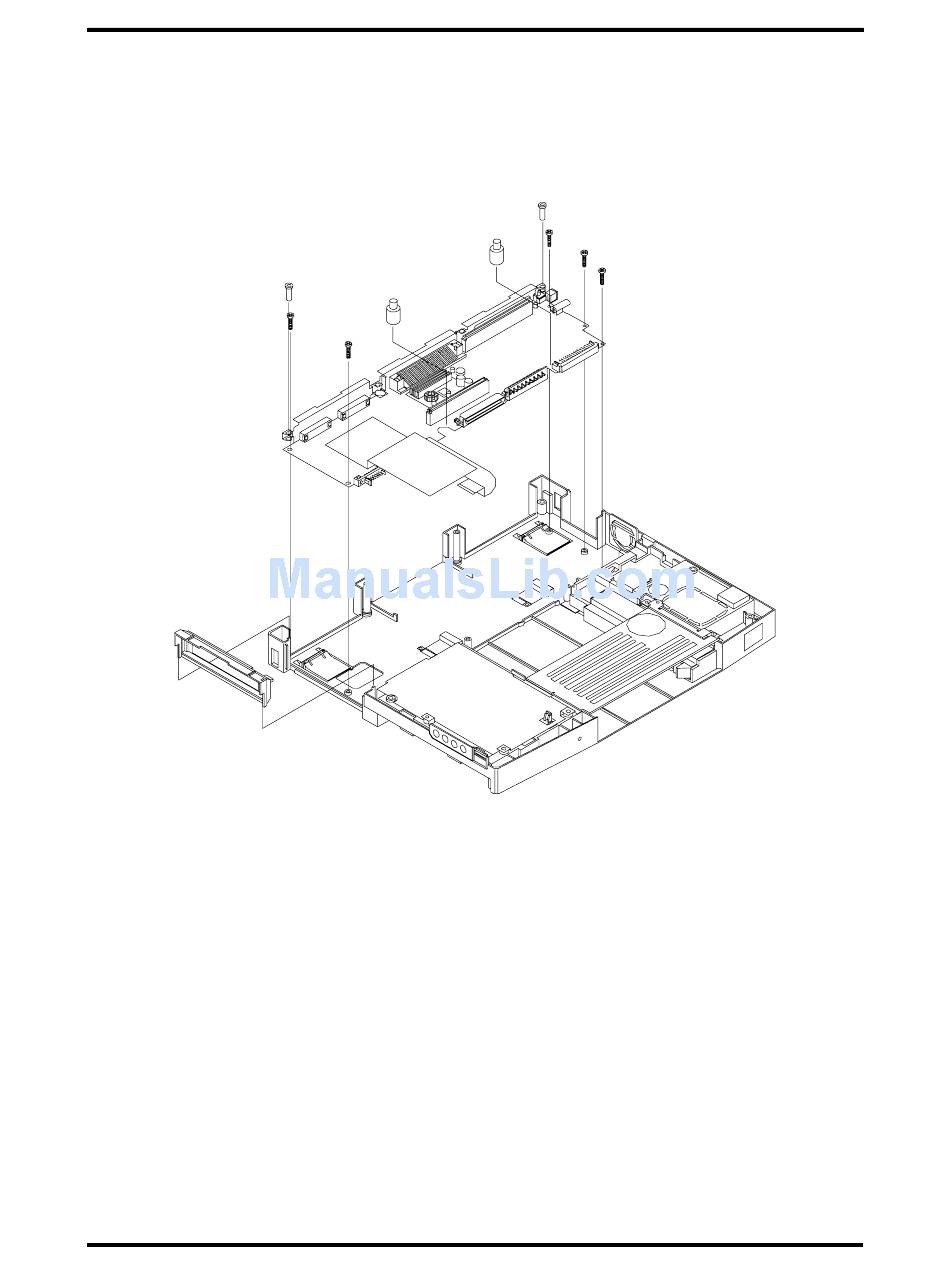

Figure 4-22 Removing the I/O Board
Field Service Guidelines
4-25
