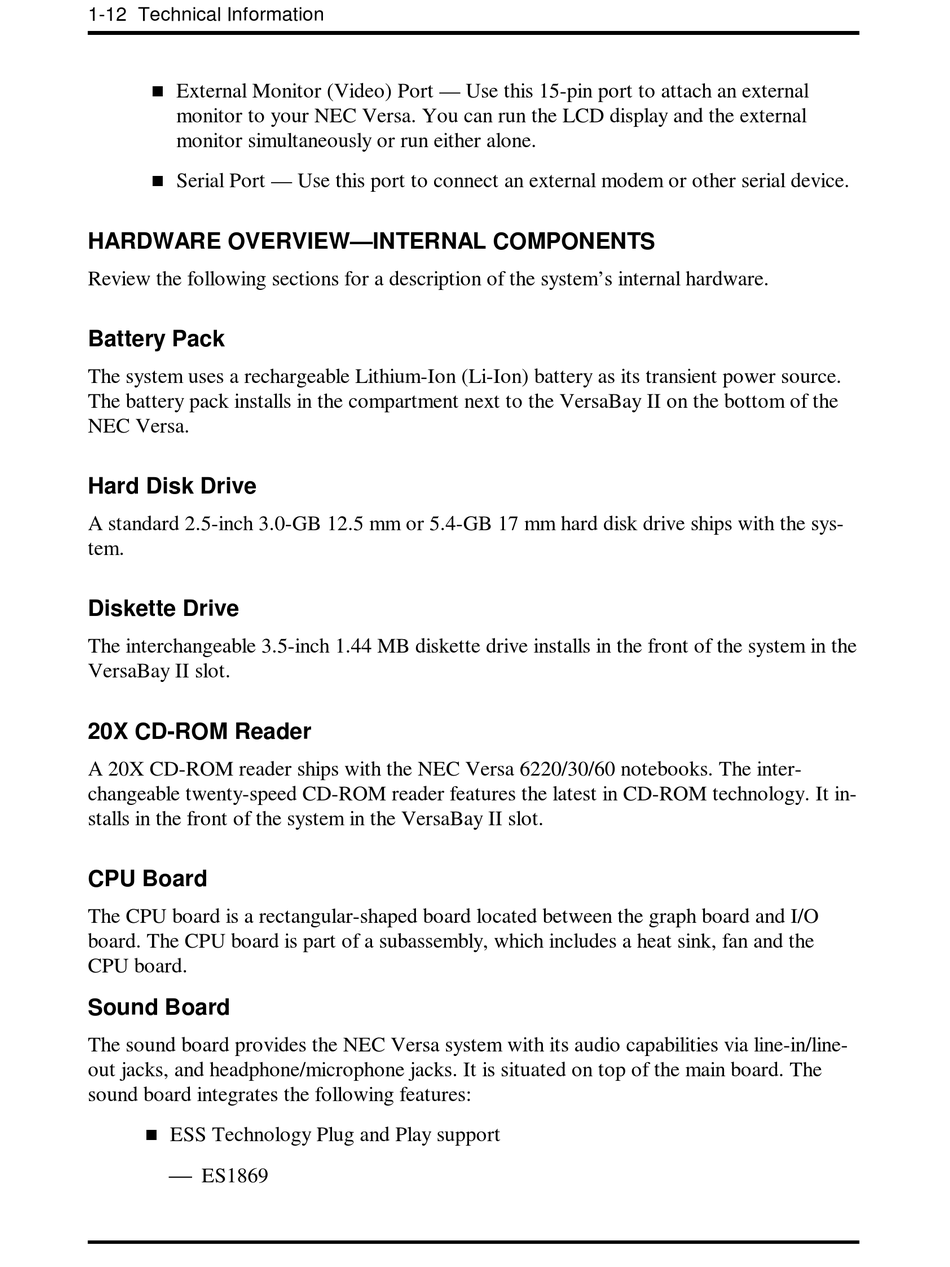

1-12 Technical Information
T
External Monitor (Video) Port — Use this 15-pin port to attach an external
monitor to your NEC Versa. You can run the LCD display and the external
monitor simultaneously or run either alone.
T
Serial Port — Use this port to connect an external modem or other serial device.
HARDWARE OVERVIEW—INTERNAL COMPONENTS
Review the following sections for a description of the system's internal hardware.

Battery Pack

The system uses a rechargeable Lithium-Ion (Li-Ion) battery as its transient power source.
The battery pack installs in the compartment next to the VersaBay II on the bottom of the
NEC Versa.

Hard Disk Drive

A standard 2.5-inch 3.0-GB 12.5 mm or 5.4-GB 17 mm hard disk drive ships with the sys-
tem.

Diskette Drive

The interchangeable 3.5-inch 1.44 MB diskette drive installs in the front of the system in the
VersaBay II slot.

20X CD-ROM Reader

A 20X CD-ROM reader ships with the NEC Versa 6220/30/60 notebooks. The inter-
changeable twenty-speed CD-ROM reader features the latest in CD-ROM technology. It in-
stalls in the front of the system in the VersaBay II slot.

CPU Board

The CPU board is a rectangular-shaped board located between the graph board and I/O
board. The CPU board is part of a subassembly, which includes a heat sink, fan and the
CPU board.

Sound Board

The sound board provides the NEC Versa system with its audio capabilities via line-in/line-
out jacks, and headphone/microphone jacks. It is situated on top of the main board. The
sound board integrates the following features:
T
ESS Technology Plug and Play support
ES1869
