5. Insert the new battery as follows:
T
Locate the alignment groove on the end of the battery opposite the terminals.
T
Locate the alignment tab inside the battery bay at the end opposite the termi-
nals.
T
Fit the battery alignment groove over the tab inside the bay.
T
Lower the battery into the battery compartment, pressing gently to secure the
terminal connections.

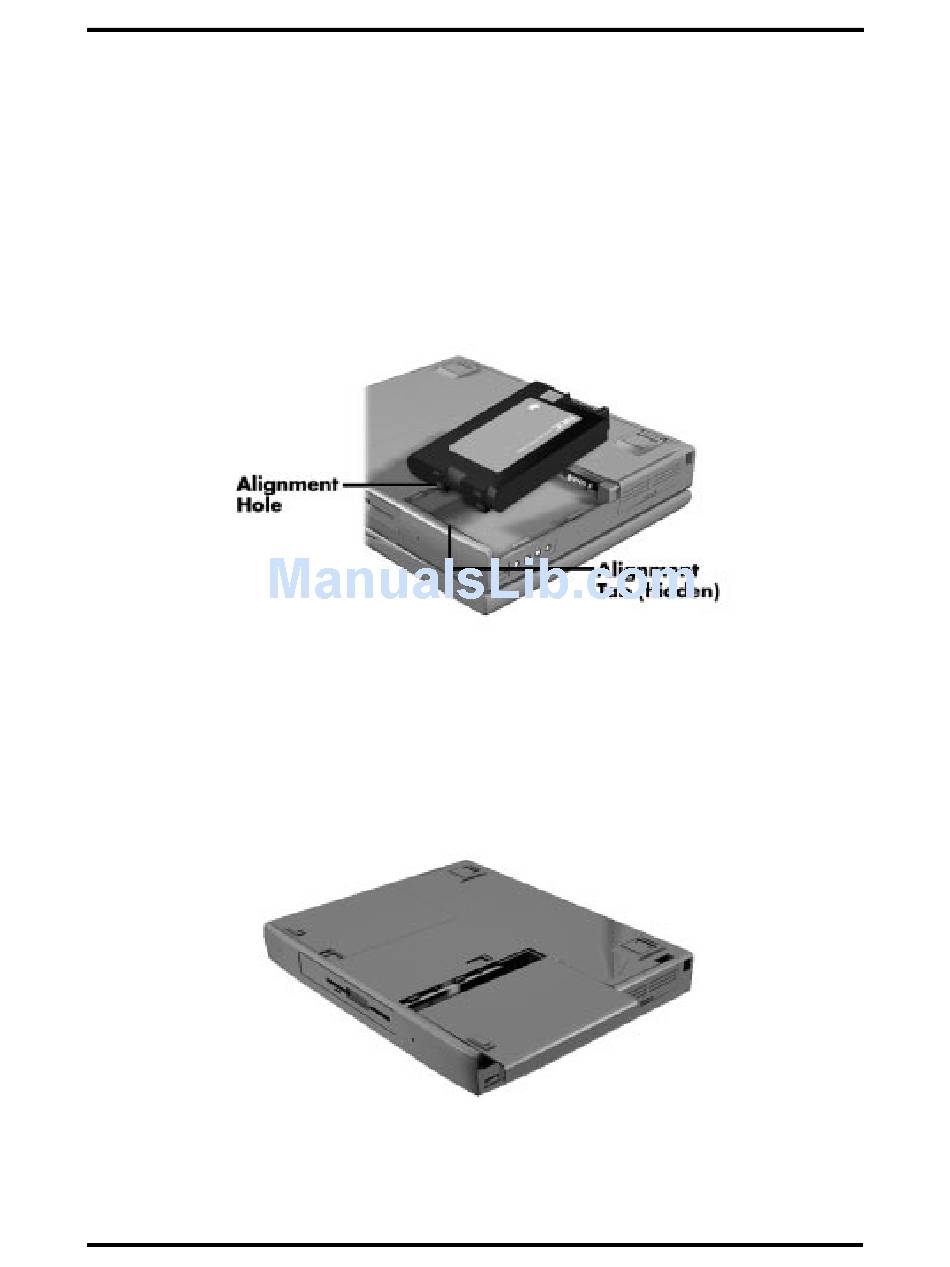

Figure 2-7 Inserting the Battery Pack
Replace the battery bay cover as follows:
6.
T
Align the tabs on the bay cover with the grooves on the system chassis.
T
Lower the cover onto the bay and slide it into place.
Figure 2-8 Replacing the Cover
Turn the system over.
7.
Setup and Operation 2-9
