Cabling a Diskette Drive

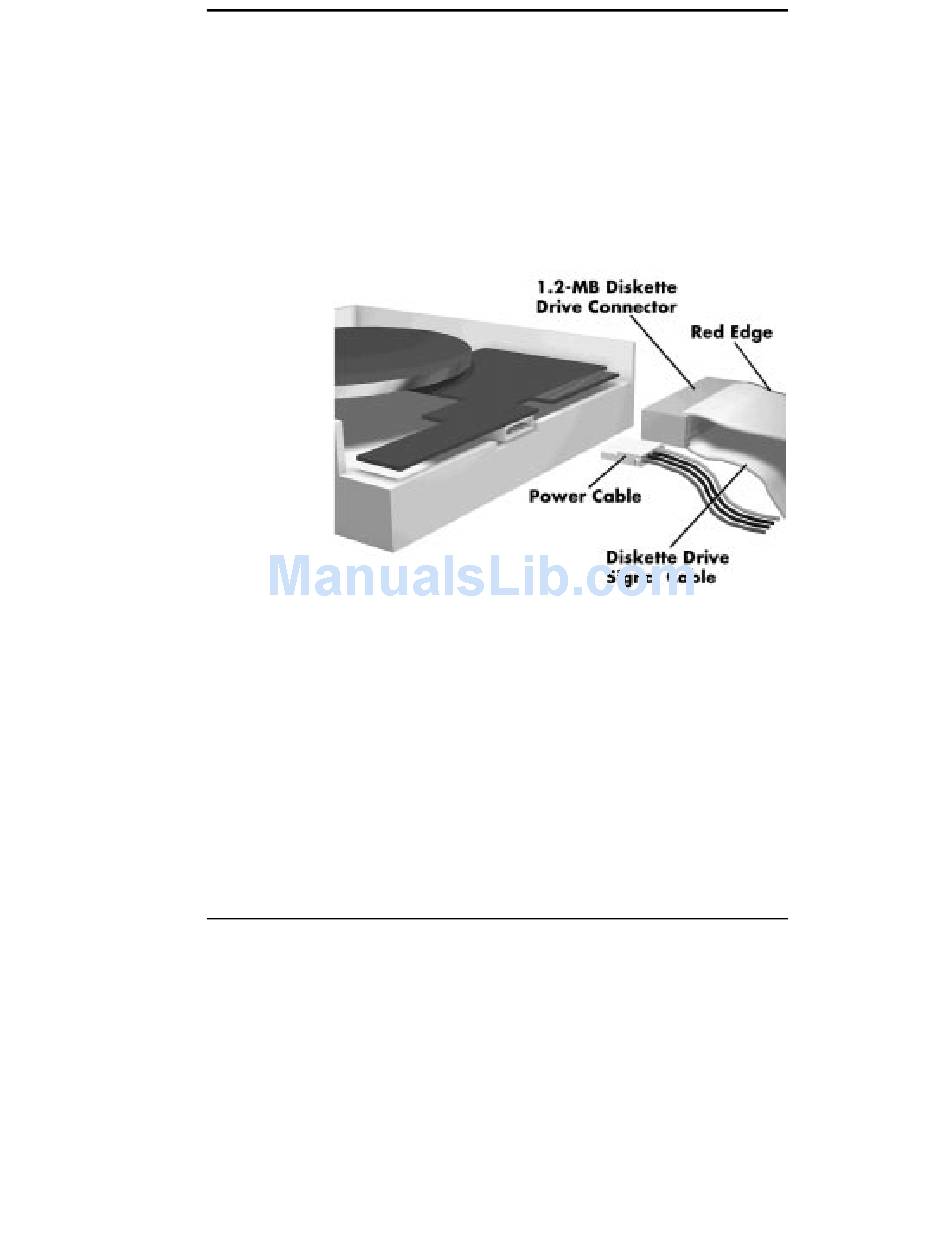

1. Connect the diskette drive signal cable connector to the
signal connector on the diskette drive as shown in the
following figure.
Locate an available power connector.
2.
Connect the power cable to the power connector on the
3.
device.

Installing Storage Devices

The following subsections describe how to install 3 1/2-inch
and 5 1/4-inch drives. The installation procedures include:
T
installing a 3 1/2-inch drive
T
removing the side and front panels
T
installing a 5 1/4-inch device
T
replacing the front panel and side panel
Connecting 1.2-MB diskette drive cables
