Cabling an IDE or SCSI Device

The following procedure explains IDE or SCSI device
cabling.
Connect the signal cable connector to the connector on
1.
the device.
Take care to prevent bending drive connector pins. Align
the cable connector as shown in the following figure.
Locate an available power connector coming from the
2.
power supply.
Connect the appropriate power cable to the power
3.
connector on the device.
If you are installing an IDE CD-ROM reader, also
4.
connect the audio cable (see the instructions that come
with the reader).
5-32 Installing Options

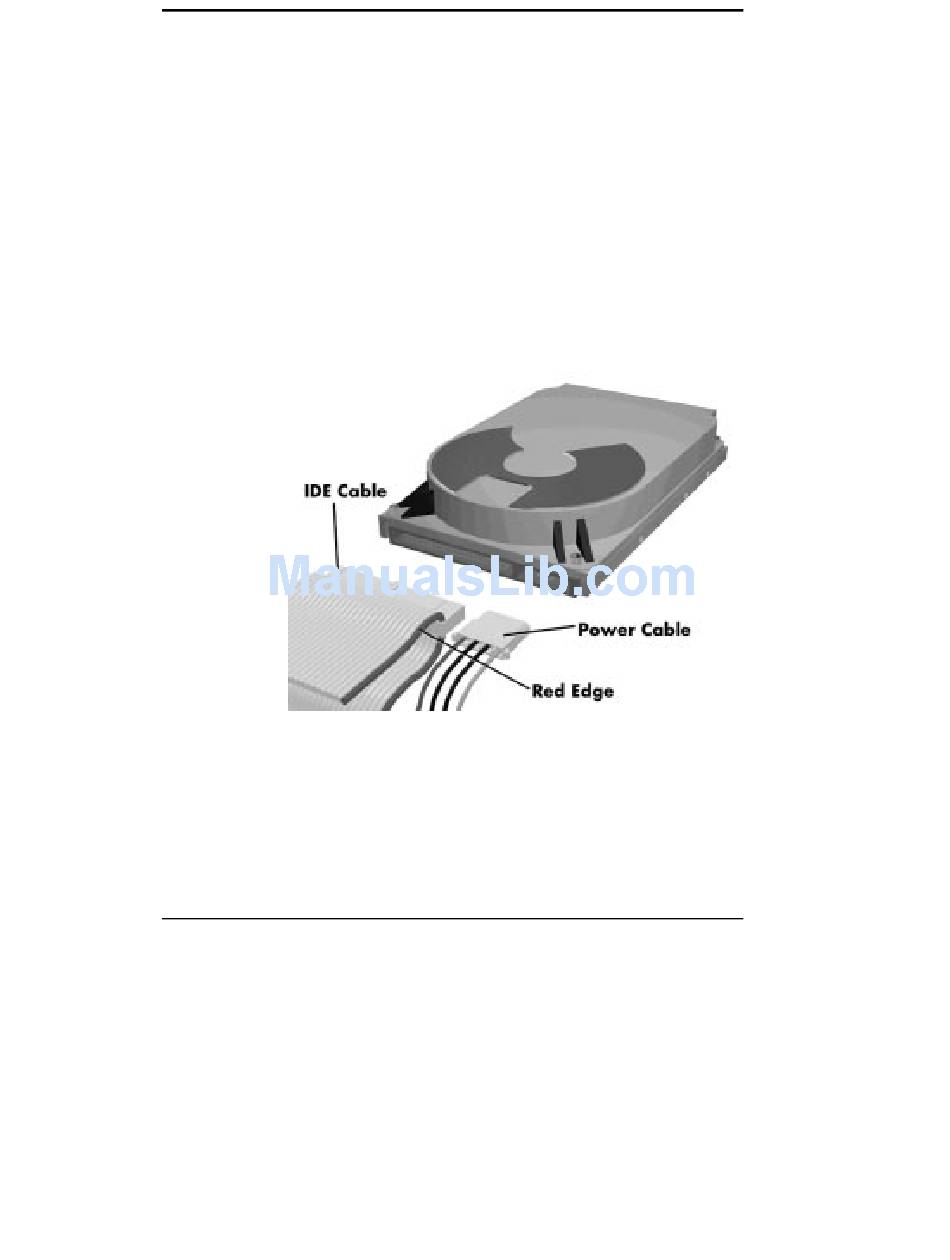

Connecting device cables
