SCSI Cable

SCSI configuration systems come with a three-connector
SCSI cable attached to an installed SCSI host adapter.

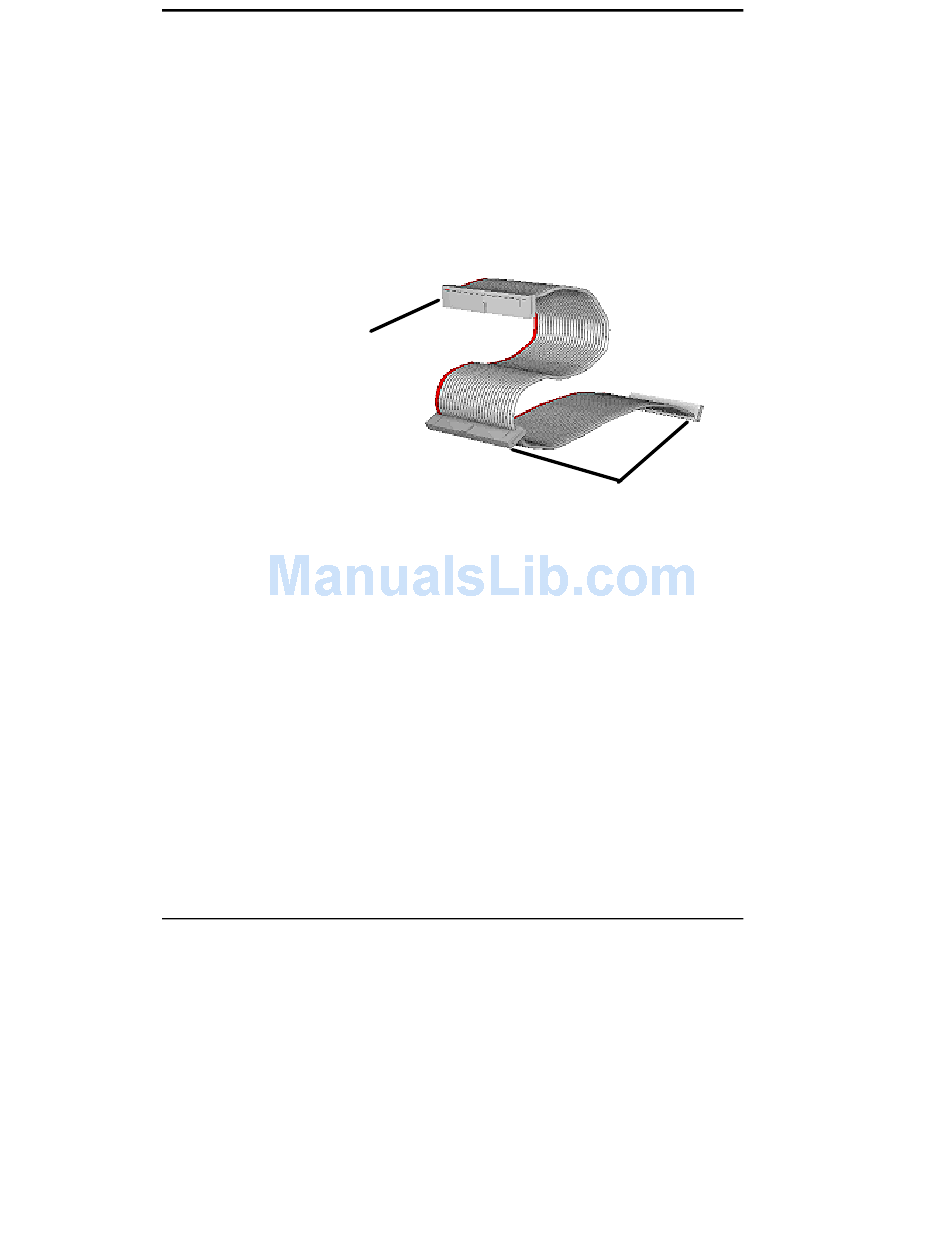

The following figure shows a typical three-connector SCSI
wide cable. If the SCSI cable is not keyed with a connector
tab, align the colored edge of the cable with the pin 1 side of
the drive connector.
Connects to
SCSI Host
Adapter

System Power Cables

Power cables come from the power supply and are attached
to the standard storage devices. System power cables vary
in length and provide connector sizes to accommodate a
variety of supported storage configurations. Power cable
connectors are keyed to fit only in the correct position. The
following figure shows the power cable connectors.
5-30 Installing Options
Connects to
SCSI Devices
Optional SCSI connectors
