Suction Filter

NOTE
• Change suction filter when changing hydraulic oil.
Suction Filter
36A3M-0506-030E

Oil Line Filter

36A3M-0506-040E
Maintenance

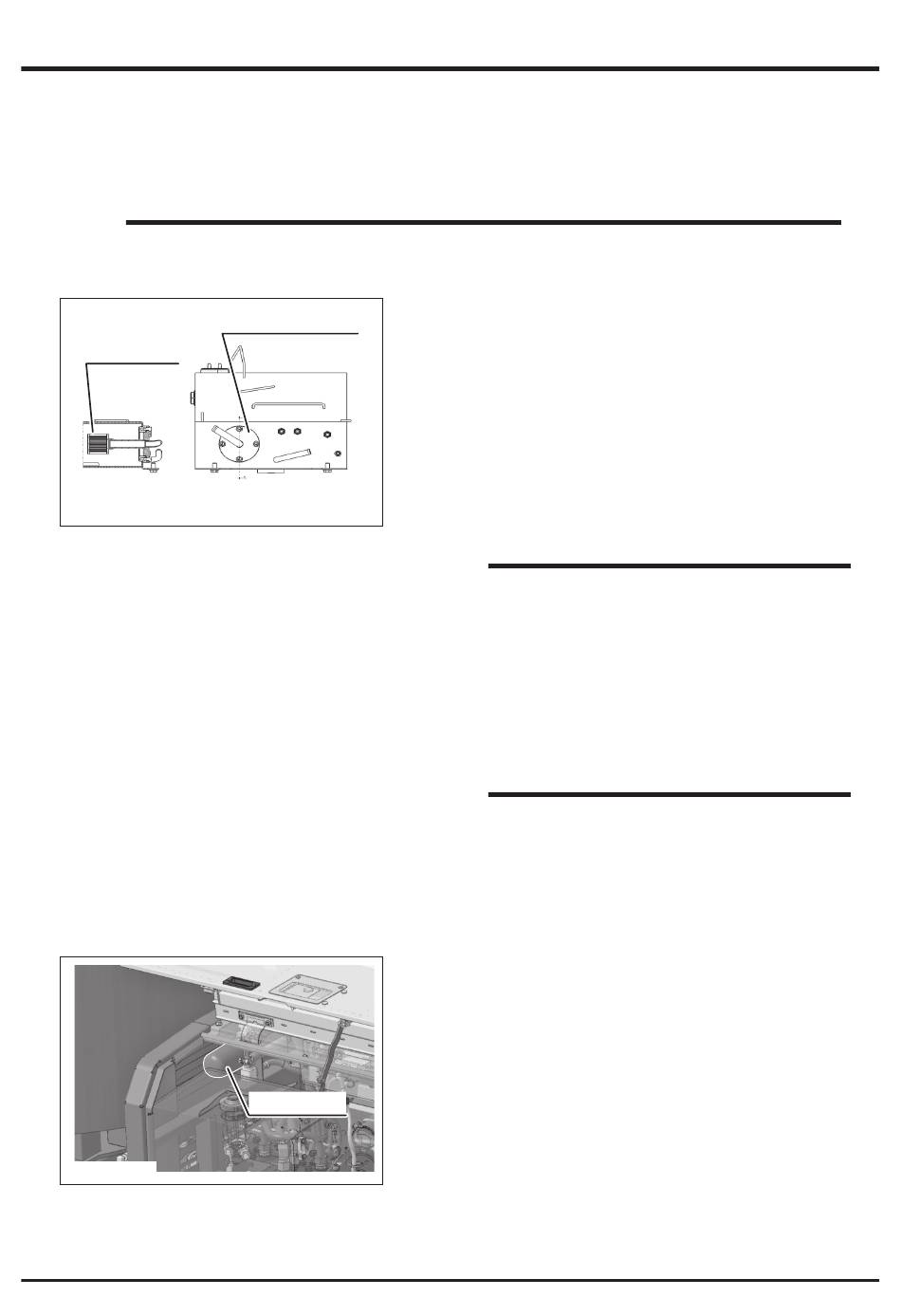

Suction Filter Mount
Oil Line Filter
1. Drain oil.
2. Loosen hose bands and remove hoses.
3. Remove bolts on the flange to remove the
suction filter mount.
4. Remove the suction filter element from the
filter mount.
5. Install a new suction filter element.
6. Install the suction filter mount.
NOTE
• Take extra care not to damage the O-ring
when installing the suction filter mount.
7. Install the hoses and secure them with the
hose bands.
8. Fill oil.
NOTE
• Make sure there is no leak in the hose joints
and filter mount.
1. Remove the engine room rear panel.
2. Remove the filter cartridge.
-71-
