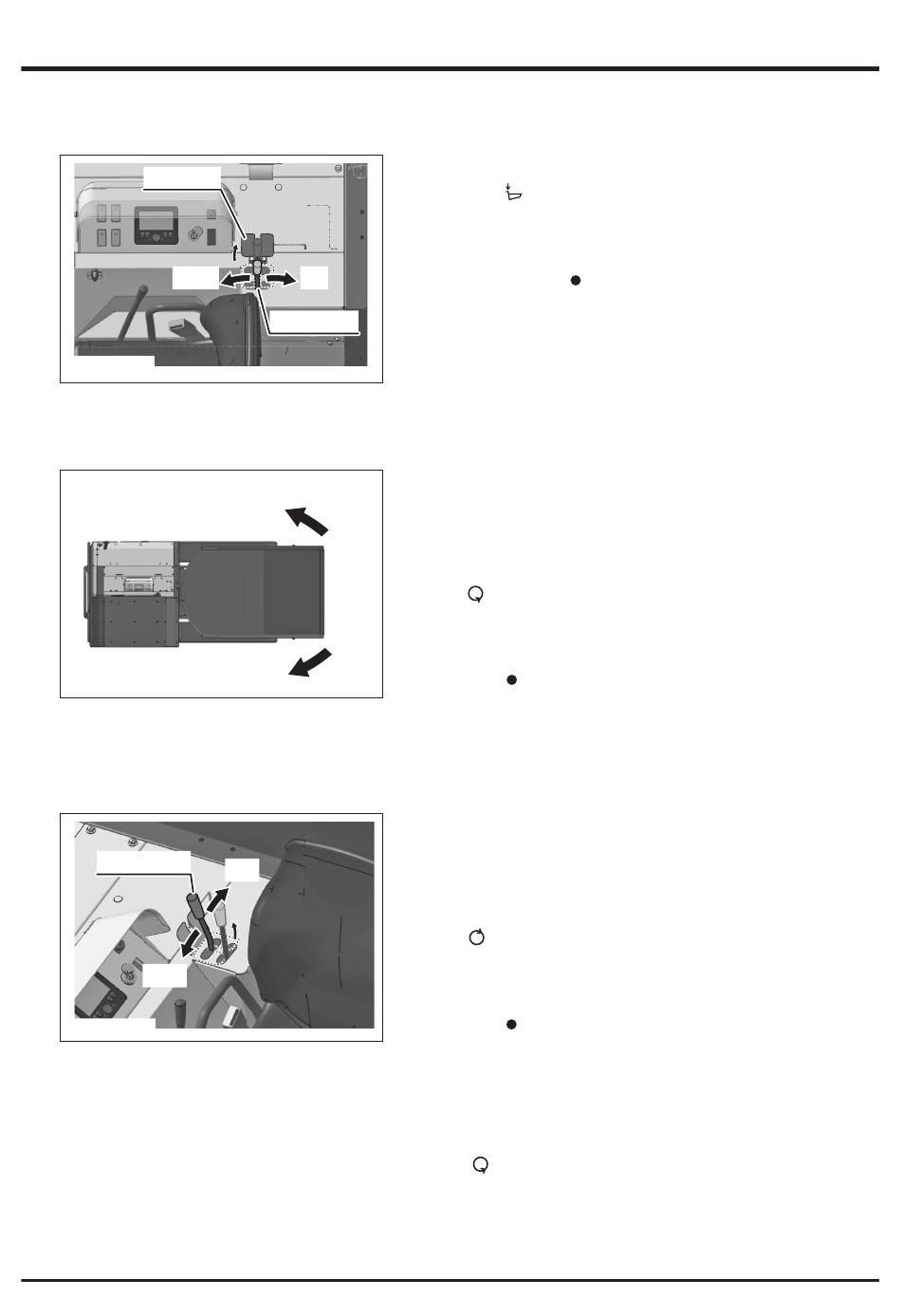

Swiveling Bucket - CanyCom S300 Operator's Manual

4
Lock Plate
Down
36A3M-0403-010E

Swiveling Bucket

36A3M-0404-010E
Swivel Lever
Right
36A3M-0404-020E
Operation
Up
Dump Lever
Left
Right
Left
6. Move the dump lever gradually toward
the [ (DOWN)] position to lower bucket.
7. When the bucket reaches its lower limit, a
hissing noise is heard; move the dump lever
back to the [ (NEUTRAL)] position.
8. Flip the lock plate back in place to lock the
dump lever.
Swiveling to the Left
1. Flip the lock plate to the side so that the
swivel lever can be operated.
2. Move the swivel lever gradually toward
[ (LEFT)] to swivel the bucket to the left.
3. When the bucket reaches its limit, a hissing
noise is heard; move the swivel lever back to
the [ (NEUTRAL)] position.
4. When keeping the bucket at the swivelled
position, flip the lock plate over the swivel
lever.
Swiveling to the Right
5. Flip the lock plate to the side so that the
swivel lever can be operated.
6. Move the swivel lever gradually toward
[ (RIGHT)] to swivel the bucket to the right.
7. When the bucket reaches its limit, a hissing
noise is heard; move the swivel lever back to
the [ (NEUTRAL)] position.
8. W h e n k e e p i n g t h e b u c k e t a t t h e
swivelled position, flip the lock plate
over the swivel lever. Otherwise, Move
t h e s w i v e l l e v e r g r a d u a l l y t o w a r d
[ (LEFT)] until the bucket reaches to the
neutral and flip the lock plate over the swivel
lever.
-42-
