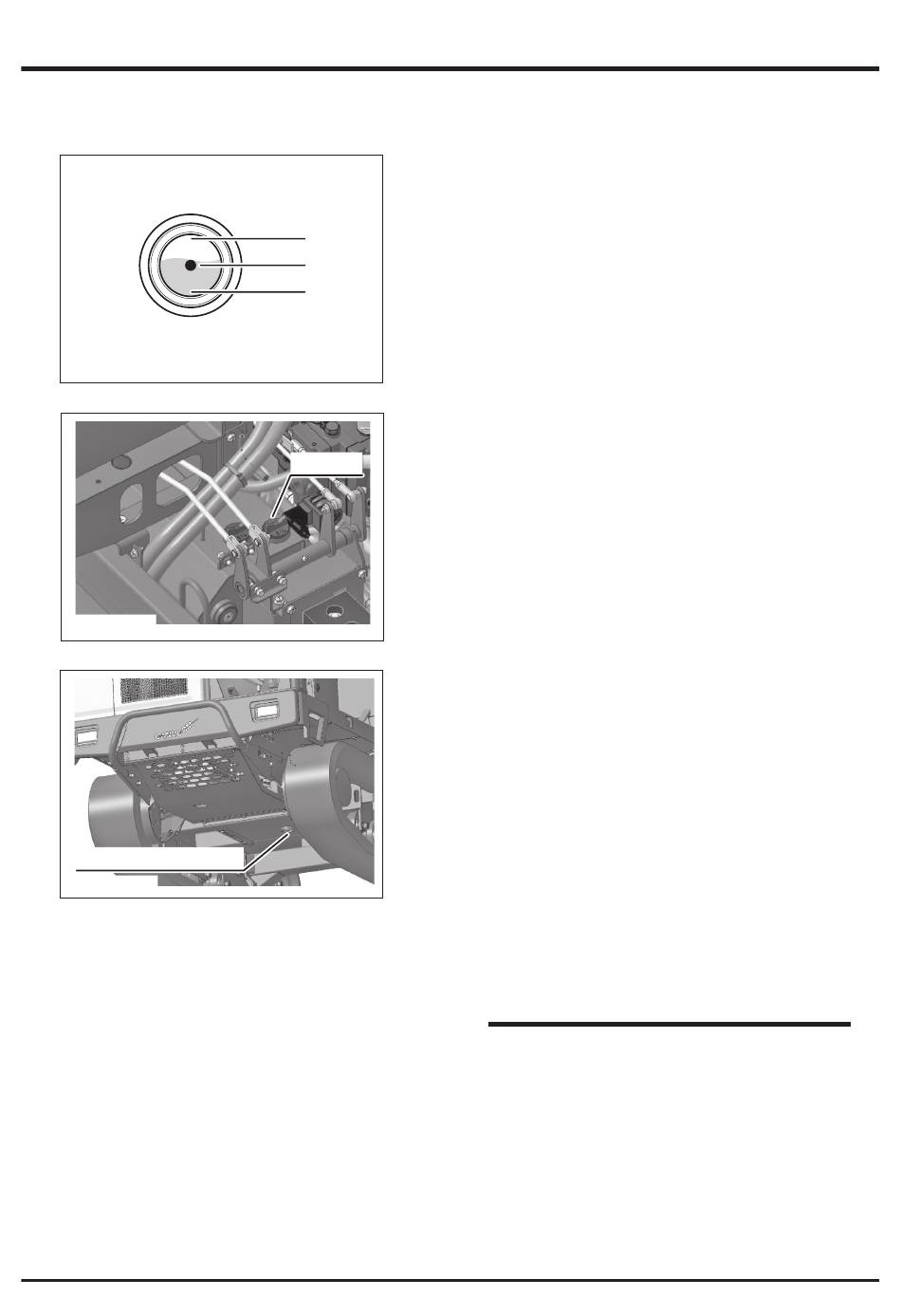

Oil Level Window
36A3M-0506-070E
36A3M-0506-020E
Hydraulic Oil Drain Plug
36A3M-0506-060E
Maintenance
3.
4.
HIGH
5.
Standard Level
LOW
Filling
1.
Filler Cap
2.
3.
4.
5.
6.
Changing
1.
2.
3.
4.
5.
6.
7.
NOTE
Visually inspect the oil level window for oil
level and condition.
If the level is low, fill oil.
If oil is dirty, change oil.
Remove four (4) M8 bolts to remove the
pump cover.
Remove the filler cap.
Fill specified grade of oil into the filler.
Check oil level.
Put the filler cap back in place.
Install the pump cover with four (4) M8 bolts.
Park the machine on a level ground.
Have an appropriate oil drain pan.
Remove the hydraulic oil drain plug to drain
oil.
Install drain plug.
Fill oil to the correct level.
Start the engine and bleed air from the
hydraulic system.
Check oil level again to make sure the level
is correct.
• Oil level may get lower after bleeding air
from the hydraulic system.
