WARNING!
Risk of injury
Risk of injury and/or damage to the product.
— Hold the foot box to secure it before releasing
the levers, otherwise it will fall down.
The foot box should not be removed from the
wheelchair during use, unless it needs to be replaced.
The adjustment of the foot box must be carried out by
two persons.

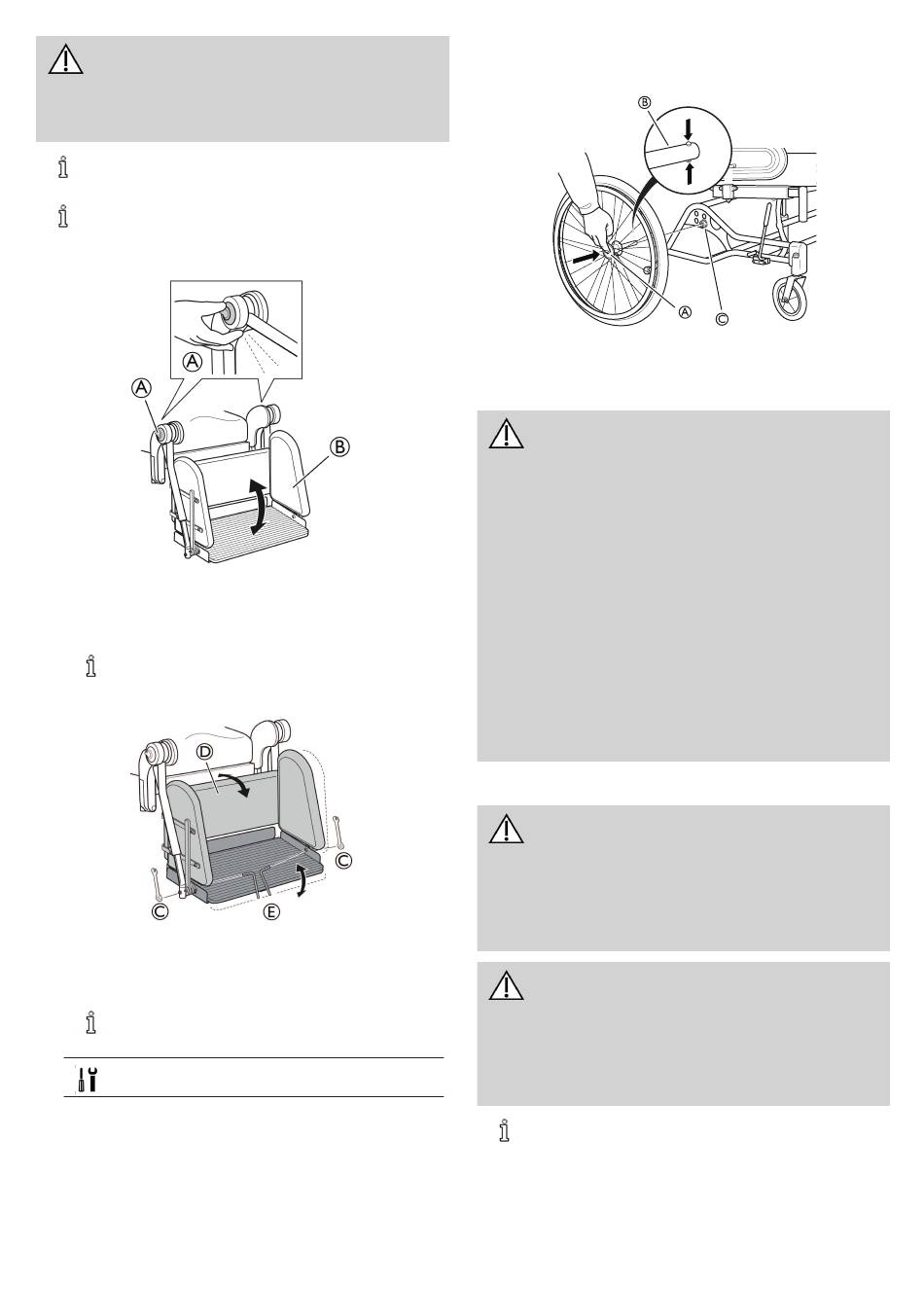

Position adjustment
1. Press the release handles A.
2. Adjust the position of the foot box B.
3. Let go of the release handles A.
Make sure t hat the foot box is locked in position.
Angle adjustment
1. Loosen the nuts C.
2. Adjust the foot box D to the desired angle.
3. Re-tighten the nuts C.
Fixate the screw with t he Allen key E and loosen
the nut with the spanner C.
10 mm fixed spanner + 4 mm Allen key
27
4.13 Rear wheels
B
1. Push the quick-release button A.
2. Pull the rear wheel straight out and remove the wheel and
the rear wheel axle B from the rear wheel attachment C.
WARNING!
Risk of overturning
The longitudinal position of the rear wheels axis o f
the wheelchair compared to the backrest p osition
can affect its stability.
— A forwards position makes the wheelchair l ess
stable and increase the risk of tipping
backwards, but improves its maneuverability b y
a better grip position of the handrim and a
short turning radius.
— Conversely, by moving the rear wheels axis
backwards, the wheelchair is more stable a nd
tilts less easily, but its maneuverability i s
reduced.
— Depending on the user's abilities and its
particular safety limits, the decrease in s tability
can be compensated for by installing a n anti-
tipper device.
4.13.1 Adjustment rear wheels 16 inch
WARNING!
Safety risk
— When you have fitted the wheels in the correct
position, it is important that you check
thoroughly that the nuts and screws are
tightened securely. This is important for your
own safety!
CAUTION!
Risk of tipping
When accessories are mounted on the back of the
wheelchair the tip risk increases.
— When accessories are mounted on the back of
the wheelchair, the rear position should be
used.
The 16" transit wheel A can be placed in three
different positions. The middle position is the standard
position.
4 Settings and Adjustments
A
C
1580313-K
