Rea® Azalea®
J
H

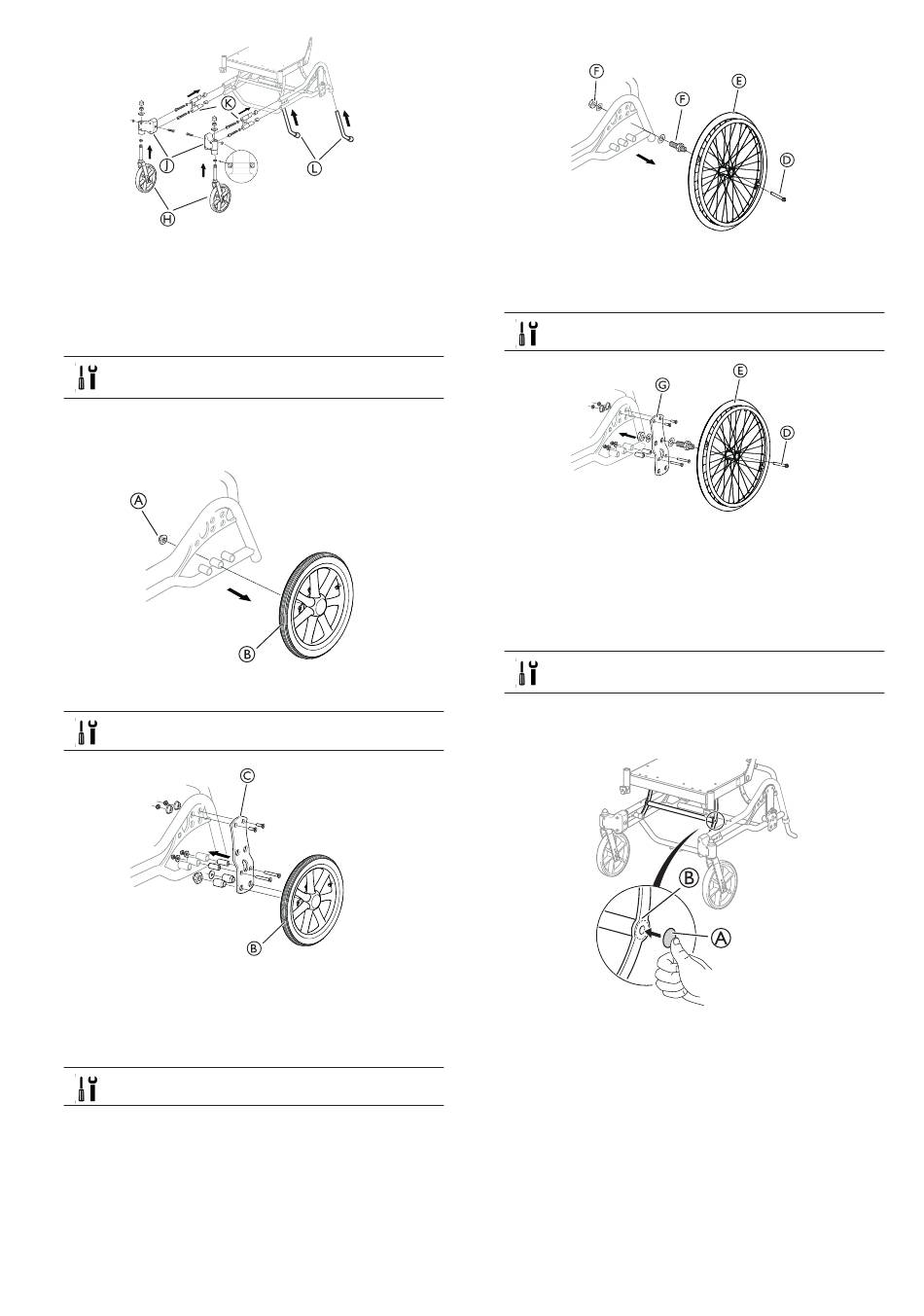

13. Mount the chassis extenders K on the chassis tubes.
14. Tighten the screws with 18 Nm.
15. Re-mount the castors H in the new castor attachments J.
16. Mount the castor attachments J on the chassis.
17. Tighten the nut with 10 Nm.
18. Mount the new antitippers L.
10 + 19 mm socket wrench
l
5 mm allen key
l
3.20.1 Rear wheel attachment — Azalea Tall
16 inch wheels
A
1. Loosen and remove the nut A.
2. Remove the wheel B.
19 mm fixed s panner
1. Attach the new rearwheel plate C and the screws, nuts
and sleeves.
2. Tighten the screws with 10 Nm.
3. Re-mount the wheel B.
4. Repeat the procedure on the opposite side.
4 mm allen key
19
K
L
B
C
B
22–24 inch wheels
F
1. Press the quick release pin D.
2. Remove the rearwheel E.
3. Loosen and remove the nut and the screw F.
24 mm fixed spanner
1. Attach the new rearwheel plate G and the screws, nuts
and sleeves.
2. Tighten the screws with 10 Nm and the nuts with 40 ± 5
Nm.
3. Re-mount the wheel E and the quick release pin D.
4. Repeat the procedure on the opposite side.
4 mm allen key
l
24 mm fixed spanner
l
3.21 Wash sealing kit
1.
Add the first sealing stickers A over the holes of the cross
tube B on both sides.
E
F
D
E
G
D
B
A
1580313-K
