Rea® Azalea®
3. Place the lower part of the piston for the tilt A in the
lower attachment B on the frame.
4. Fixate the lower part with the sleeves F, safety pin and
the locking washer E.
5. Tighten the screws.
Nippers

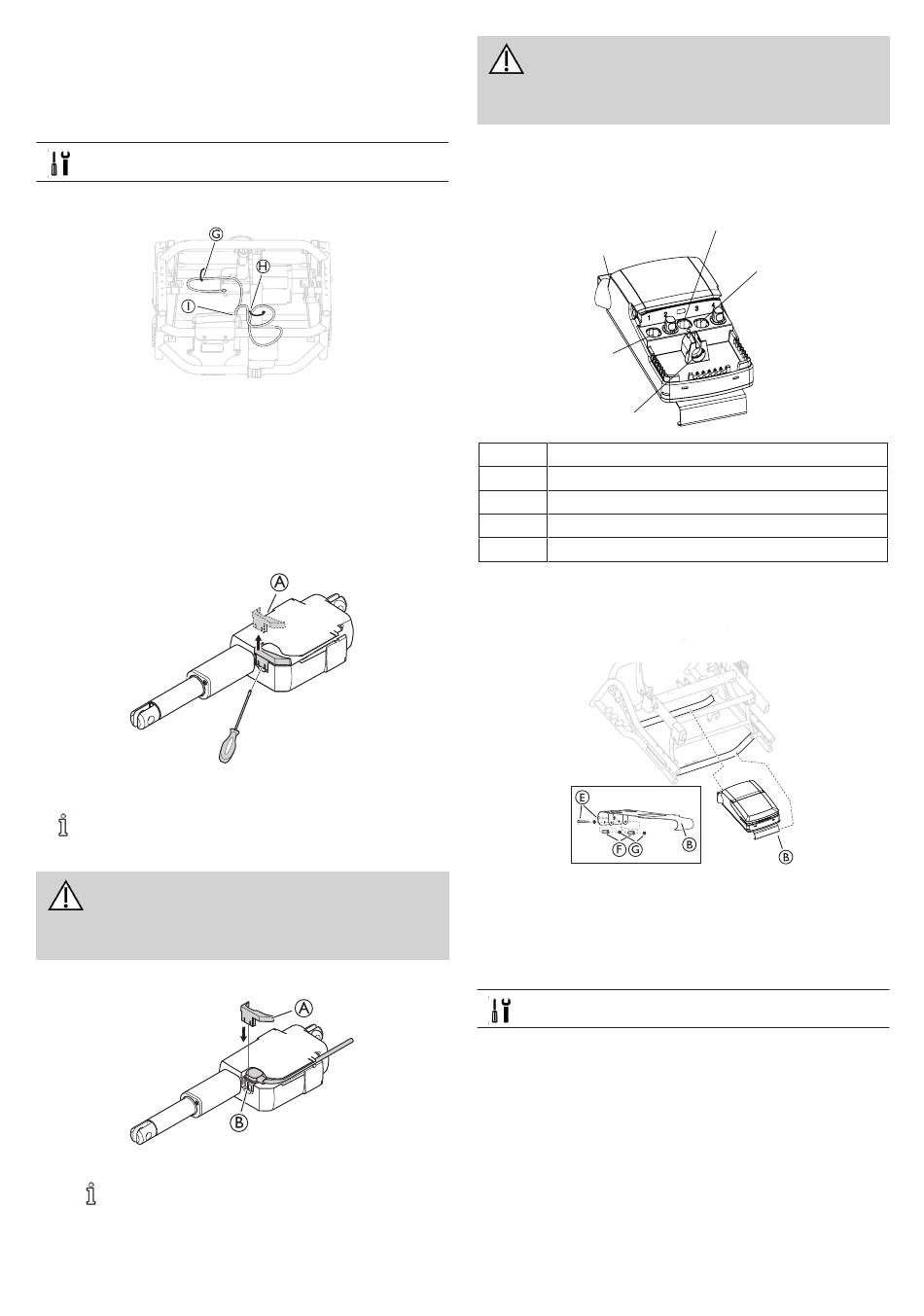

Attaching cables – Electrical backrest and seat
I
1. Attach the cable for the seat tilt G to the frame with a
cable tie.
2. Attach the cable for the backrest recline to the piston with
a cable tie.
3. Attach both cables to the control box I with a cable tie.
Cable lock — actuator
Cable lock removal
1. Loosen the cable lock A.
Use a screwdriver t o loosen the cable lock.
2. Remove the cable lock from the actuator.
CAUTION!
Damage to the product
— When a cable lock is removed, it must be
replaced by a new one.
Mount the cable lock
1. Place the cable in the holder C on the seat tilt actuator.
The cable must be fully pressed into the holder
before adding the cable lock B.
2. Attach the cable lock B by pushing it into place on the
seat tilt actuator.
15
G
H
A
A
B
CAUTION!
Risk of damage to the product
— The cable lock must be mounted when washing
the wheelchair.
3.17.4 Mounting the control box
For general understanding of the connections take into account
the image below.
A
E
D
A Power Connection 100-230V
Battery
B
C Seat Actuator
D Handset
E Backrest Actuator
E
F G
1. Mount the attachment B with the attached control box on
the chassis.
2. Fixate the attachment B with the screws and washers E,
sleeves F and nuts G.
3. Tighten the screws.
3 mm allen key / 8 m m spanner
B
C
B
B
1580313-K
