1. Connect the charger cable supplied with the chair into a
wall socket.
2. Insert the charger cable A into the connector B which is
on the side of the wheelchair.
3. Unplug the cable when the battery is fully charged.
C
D
A Green light — ON — Hand control is activated
Green light — ON — Battery level is above 20%
l
B
Green light blinking — ON — Battery is charging
l
(fixed light when the battery is fully loaded)
Yellow light — ON — Battery level is low, below
l
20%
C
Yellow light — OFF — Battery is fully loaded
l
Green light — ON — Battery cable is connected (lights
D
up about 5 seconds after connecting the cable)

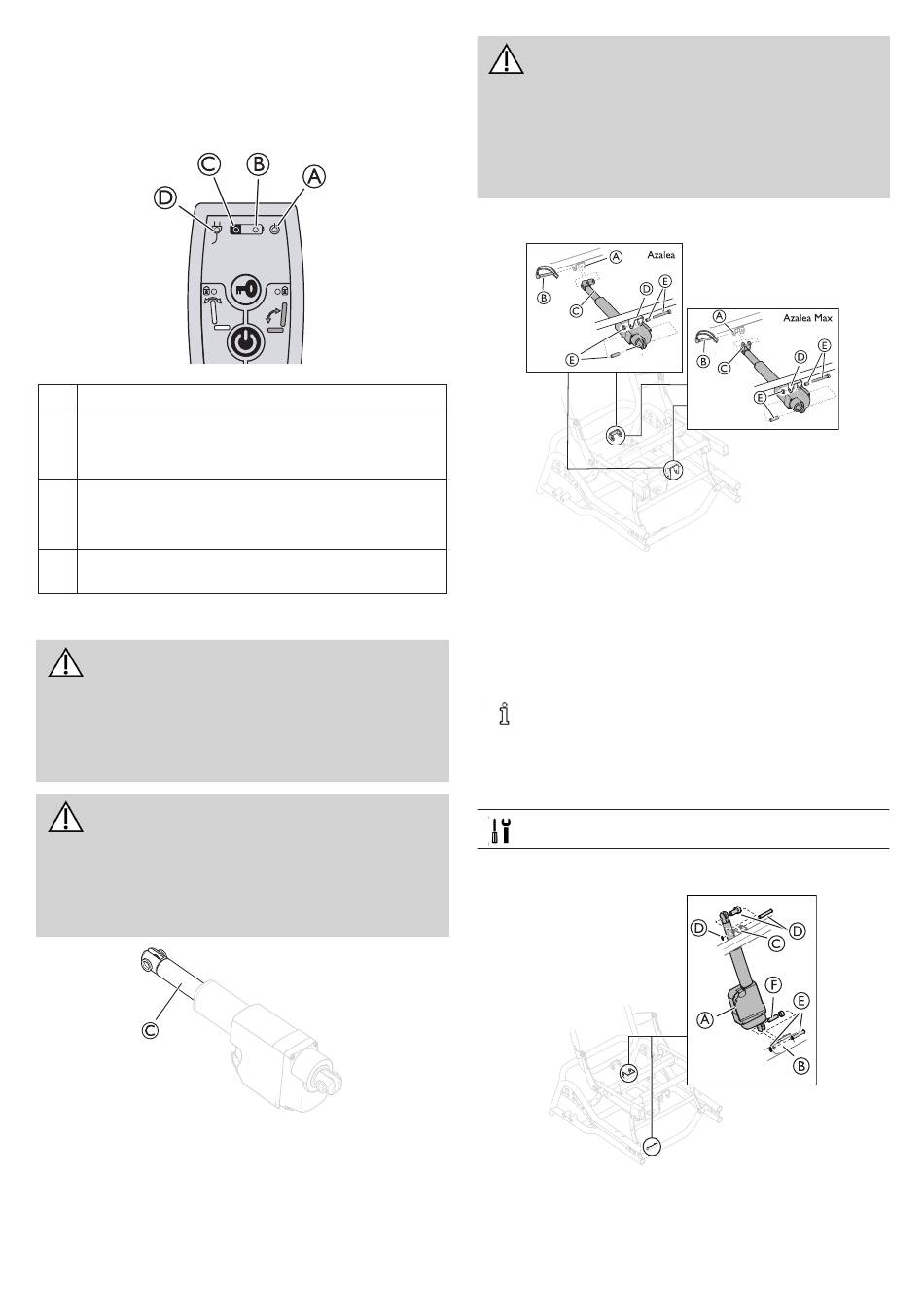

3.17.3 Mounting the actuators
WARNING!
Risk of injury
The wheelchair may collapse
— Check that the locking washers are securely
locked.
— If the safety pin is used, make sure that the lock
shackle / loop is securely locked.
WARNING!
Safety risk
The wheelchair may collapse.
Remember to always reinsert and fasten the safety
pin when it has been removed.
— Check that the lock shackle / loop is securely
locked.
C
14
B
A
WARNING!
Electrical version
The backrest may come loose if the piston rod is
accidentally detached from its housing.
— Before attaching the piston to the backrest,
turn the piston rod Cmaximum clockwise.
— When aligning the holes, only turn the piston
rod C maximum a half turn counterclockwise.
Mounting the backrest actuator
Azalea
A
D
B
C
E
1. Place the attachment to the piston for the backrest recline
C in the attachment A on the frame.
2. Fixate the attachment with the safety pin B.
3. Place the front part of the piston in the front attachment
D on the frame.
4. Fixate the piston with the screw, sleeves and nut E.
The screw, sleeves and nut also fixates the battery to
the front attachment D. See section "Mounting the
battery" f or more instruction about how to mount the
battery.
5. Tighten the screw.
6 mm allen key / 13 mm fixed spanner
Mounting the electrical piston for seat tilt
1. Place the upper part of the piston for the tilt A in the
attachment C on the frame.
2. Fixate the piston with the safety pin, sleeve and
locking washer D.
3 Assembly
E
A
Azalea Max
E
D
B
C
E
D
D
C
F
E
A
B
