3 Assembly

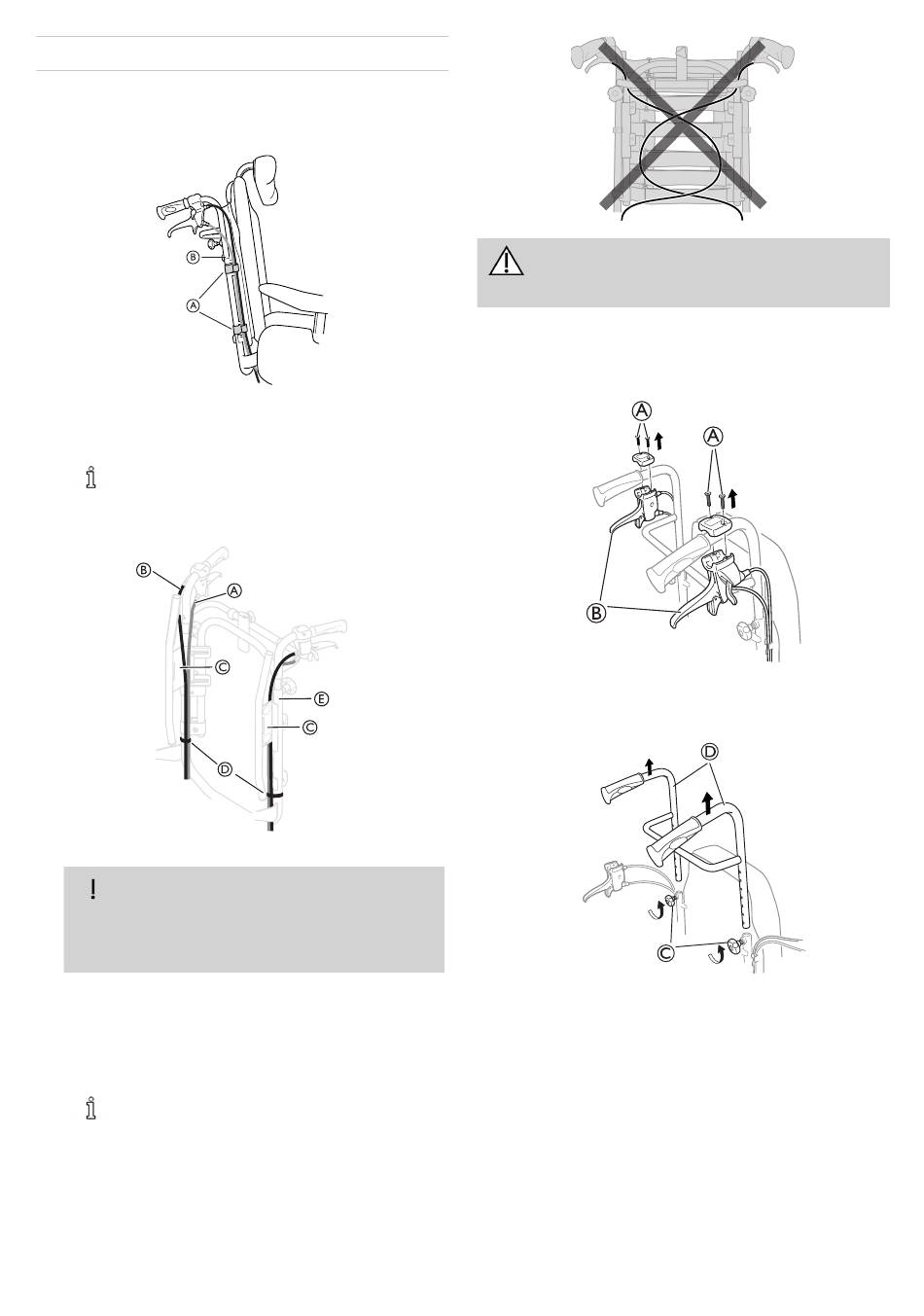

3.1 Placing the wires
3.1.1 Wires with backrest plate
B
A
1. Thread the wires on the outside of the backrest tubes B.
2. Place the wires in the holders/clips A in order to hold
them in place.
Fold the slack of the wires under the seat to get
them out of the way.
3.1.2 Wires with tension adjustable backrest
B
1. Place the wires A and B as shown on the picture above.
NOTICE!
Risk of damage to the wires
— It is important that the cable for the
assistant brake A is placed on the inside of
the backrest tubes.
2. Place the wire for the backrest/seat recline B outside of
the backrest tubes.
3. Place both of the wires on the inside of the backrest
attachment C.
4. Attach the wires to the backrest tubes E with the straps
D.
Fold the slack of the wires under the seat to get
them out of the way.
6
A
C
E
C
D
CAUTION!
Risk of reduced brake effect
— The wires must not be crossed on the backrest!
3.2 Mounting the angle adjustable
push bar
1.
A
B
Loosen and remove the screws A and the brake handles
B.
2.
Loosen the handwheels C and remove the push
handles D.
3 Assembly
A
D
C
