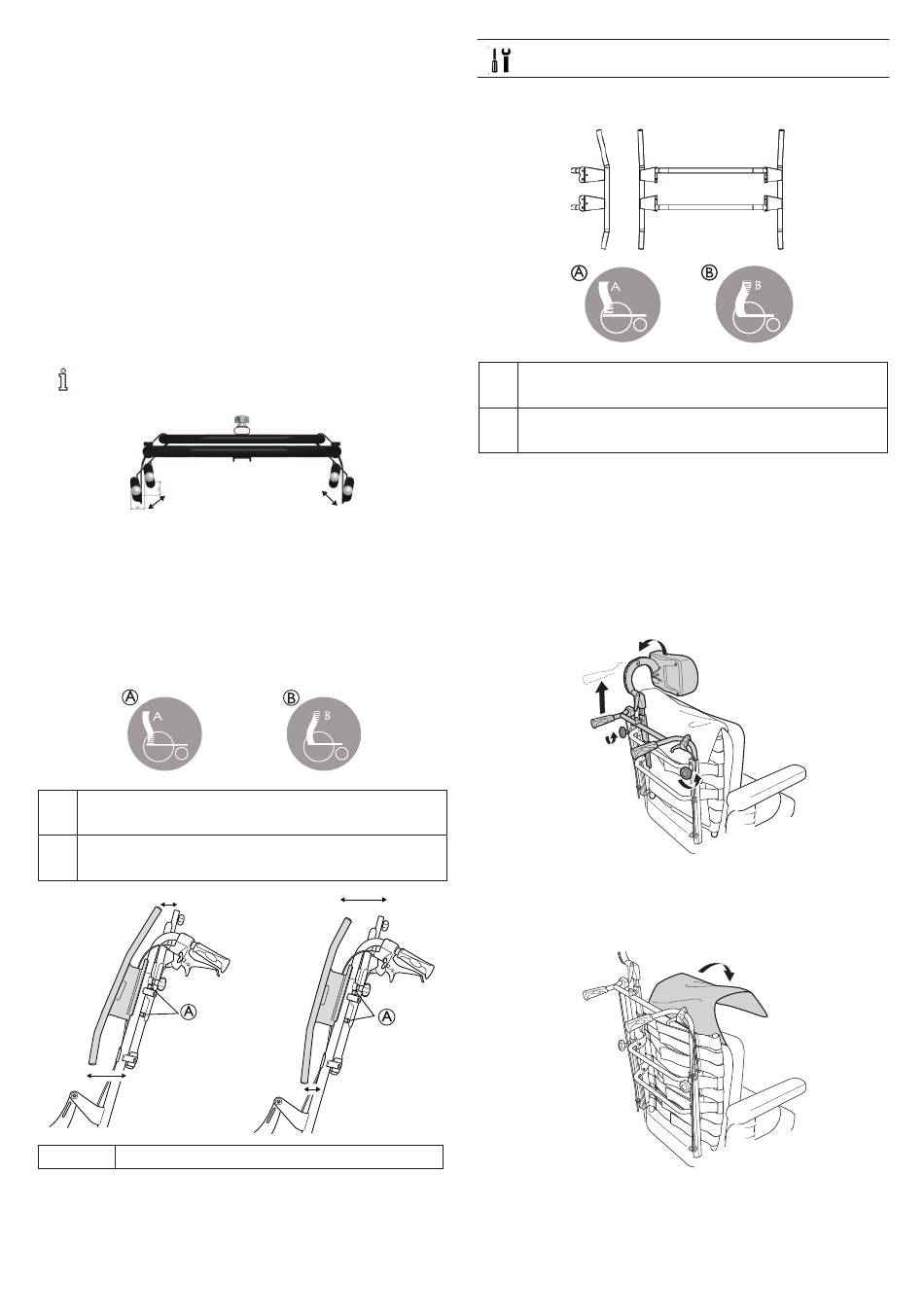

Turning of the backrest tubes
The tension adjustable backrest is designed with different
angles as shown in picture A and B below. This allows for
different adjustments according to how the backrest is
mounted. Position A (the part of the backrest with the longer
angle turned upwards) gives the user more room for the
shoulder area while position B gives more room for the
bottom.
Determine if the user needs more space in the shoulder area or
in the bottom area. The design of the backrest tubes with
different angles allows for these adjustments.
1. Loosen and remove screws on both sides.
2. Turn the backrest.
3. Reinsert the screws.
4. Make sure to fasten properly.
The user can not sit in the chair when the backrest
tubes are removed.
The backrest tubes have a width adjustment of 25 mm. The
upper and lower parts of the tubes can be adjusted individually
to accommodate for different needs. The outward movement
will embrace the user and offer lateral support.
Backrest positioning
Angle the backrest- and seat tilt a couple of degrees in order to
obtain a stable seating position for the user.
A
A
Position A — The longer angle of the backrest is turned
A
upwards.
Position B — The longer angle of the backrest is turned
B
downwards.
A
A Screws for adjustment of the backrest tubes.
23
B
B
A
5 mm Allen key
4.5 Backrest for Azalea Max
A
A
Position A — The longer angle of the backrest is turned
A
upwards.
Position B — The longer angle of the backrest is turned
B
downwards.
The backrest for the Azalea Max is designed with different
angles. This allows for different adjustments according to how
the backrest is mounted. Position A (the part of the backrest
with the longer angle turned upwards) gives the user more
room for the shoulder area while position B gives more room
for the bottom.
4.5.1 Adjustment backrest Azalea Max
1.
Loosen the handwheels and raise the push handles as far
as possible.
2.
Remove the cover.
4 Settings and Adjustments
B
B
1580313-K
