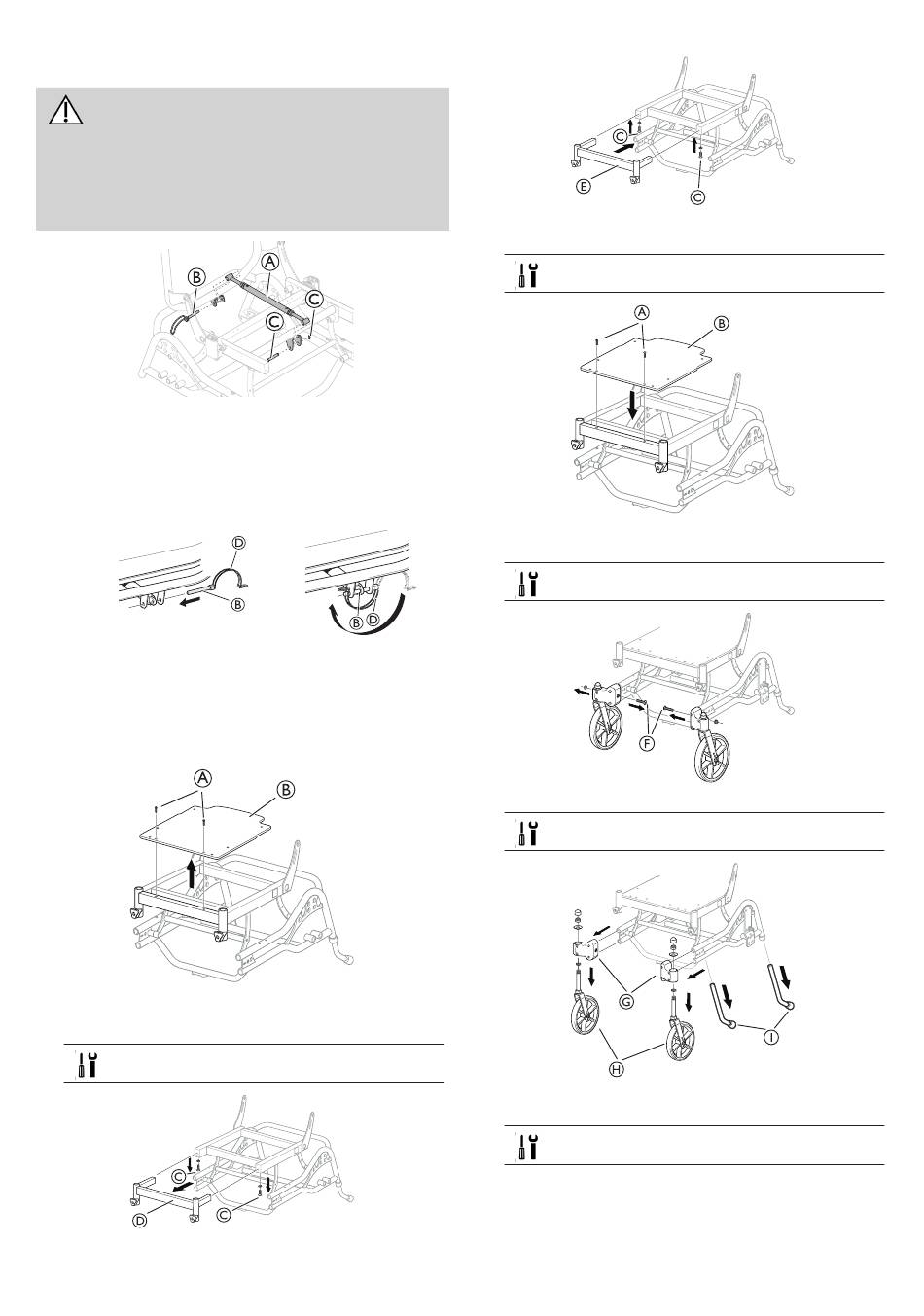

3.19   Mounting the Rigging screw
WARNING!
Safety risk
The wheelchair may collapse
— Remember to always reinsert and fasten the
safety pin when it has been removed.
— Check that the lock shackle / loop is securely
locked.
B
1. Attach the Rigging screw A in the front and the rear
attachments.
2. Fixate the Rigging screw A in the rear attachment with the
safety shackle B.
3. Close the safety shackle B with the lock shackle D to
secure the Rigging screw A.
4. Fixate the Rigging screw A in the front attachment with
the safety pin and the locking washer C.
3.20   Azalea Tall kit
A
1. Loosen and remove the screws A.
2. Remove the seat plate B.
Screwdriver
C
D
3. Loosen and remove the screws C.
18
A
C
C
D
B
D
B
B
C
4. Remove the legrest attachment D.
C
E
5. Attach the legrest attachment for Azalea Tall E.
6. Re-mount the screws C and tighten with 10 Nm.
5 mm allen key
A
7. Re-mount the seat plate B.
8. Re-mount the screws A and tighten with 3,5 Nm.
Screwdriver
F
9. Loosen the screws to the castor attachment F.
10 mm socket wrench
G
H
10. Remove the castor attachment G.
11. Loosen and remove the castors H.
19 mm socket wrench
12. Remove the antitippers I.
3    Assembly
C
B
I
