4 Settings and Adjustments

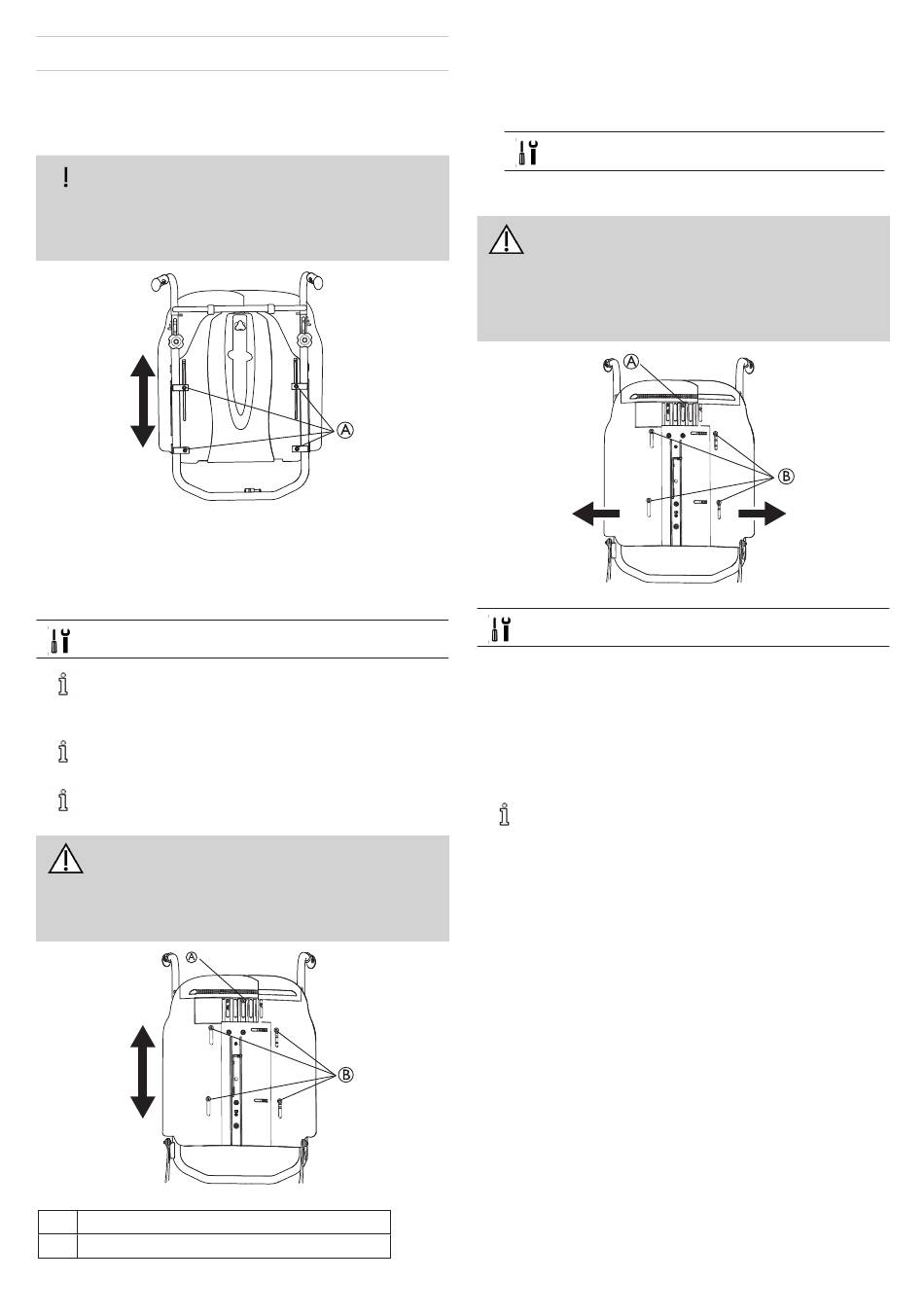

4.1 Backrest Plate
4.1.1 Height adjustment backrest plate
NOTICE!
Risk of damage
Poor functionality on the backrest.
— Any adjustments made to the backrest should
be evaluated by trained personnel.
You can easily adjust the backrest plate (+130 mm).
1. Loosen the four screws A.
2. Set the backrest plate to the required height.
3. Re-tighten the screws.
5 mm allen key
The height of the "Laguna" backrest plate is adjusted
in the same way. Maximum height adjustment is 110
mm.
The "Laguna" backrest cushion is the only available
cushion choice for the "Laguna" backrest plate.
Any adjustments made to the backrest should be
evaluated by trained personnel.
CAUTION!
Risk of pinching
When adjusting the height these is a risk of pinching
your finger.
— Be careful when adjusting the height.
A
A Upper screws for additional height adjustment
Lower screws for additional height adjustment
B
21
For additional height adjustment (50 mm):
1. Loosen screws.
2. Set the required height.
3. Re-tighten the screws.
4.1.2 Width adjustment backrest plate
A
For width adjustment:
1. Remove the upper screw A, and loosen the lower
screws B.
2. Adjust to the required width (+25 or 50 mm on each side).
3. Re-insert the upper screw and tighten.
4. Tighten the lower screws.
B
5 mm Allen key
WARNING!
Risk of breakage
The backrest might brake if adjusted too wide.
— If you have seat width 490 mm (max seat width)
the backrest should NOT be adjusted to the
widest possibility (+100 mm).
A
5 mm Allen key
The "Laguna" backrest plate is not possible to adjust in
width, only in height.
4 Settings and Adjustments
B
