Rea® Azalea®
CAUTION!
Risk of short circuit
— Be aware of electrostatic discharge (ESD) when
working on electrical parts.

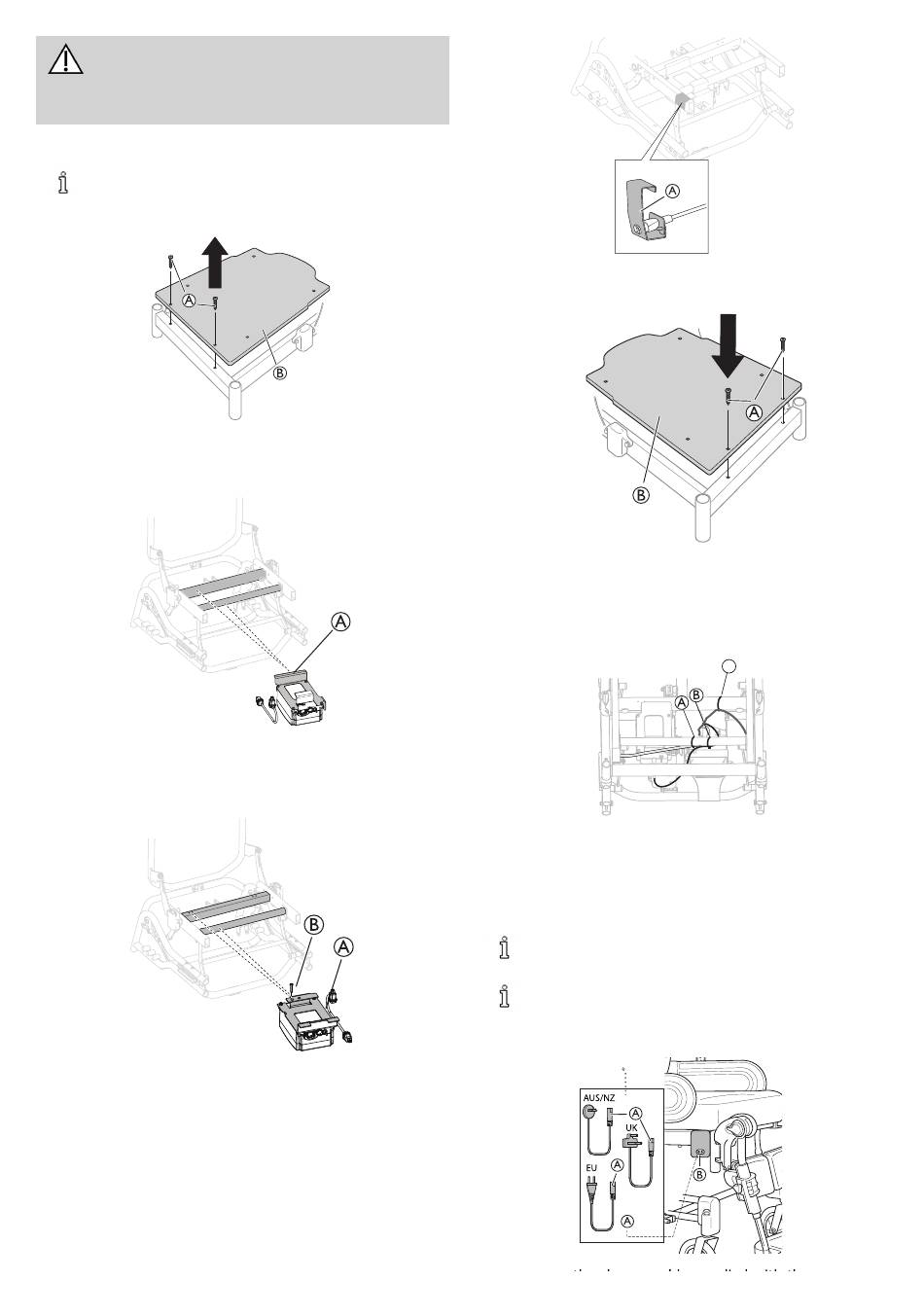

3.17.1   Mounting the battery
When changing the battery, the hand control cable
needs to be connected for at least 10 seconds to be
able to indicate the levels of the new battery.
A
1. Loosen and remove the screws A and the seat plate B.
Azalea
1. Mount the attachment with the battery A on the frame.
Azalea Max
1. Mount the attachment with the battery A on the frame.
2. Fixate the battery on the frame with the screw B.
Mounting the holder for the battery cable
13
B
A
B
A
1. Place the holder with the battery cable A on the marked
area of the frame.
B
2. Re-mount the seat plate B.
3. Tighten the screws A.
Attaching the cables
1. Attach the cable for the battery charger A , for the battery
B and for the seat tilt actuatorC to the frame with two
separate cable ties.
3.17.2   Charging the battery
The battery charger has different charging cables in
order to adapt to different local electrical standards.
When the battery level is low (20 V), the hand control
beeps when it is used.
A
A
A
A
A
C
B
A
B
1580313-K
