Rea® Azalea®
A 16 inch rear wheel
B Front position for the rear wheel
C Middle position for the rear wheel (standard position)
D Rear position for the rear wheel

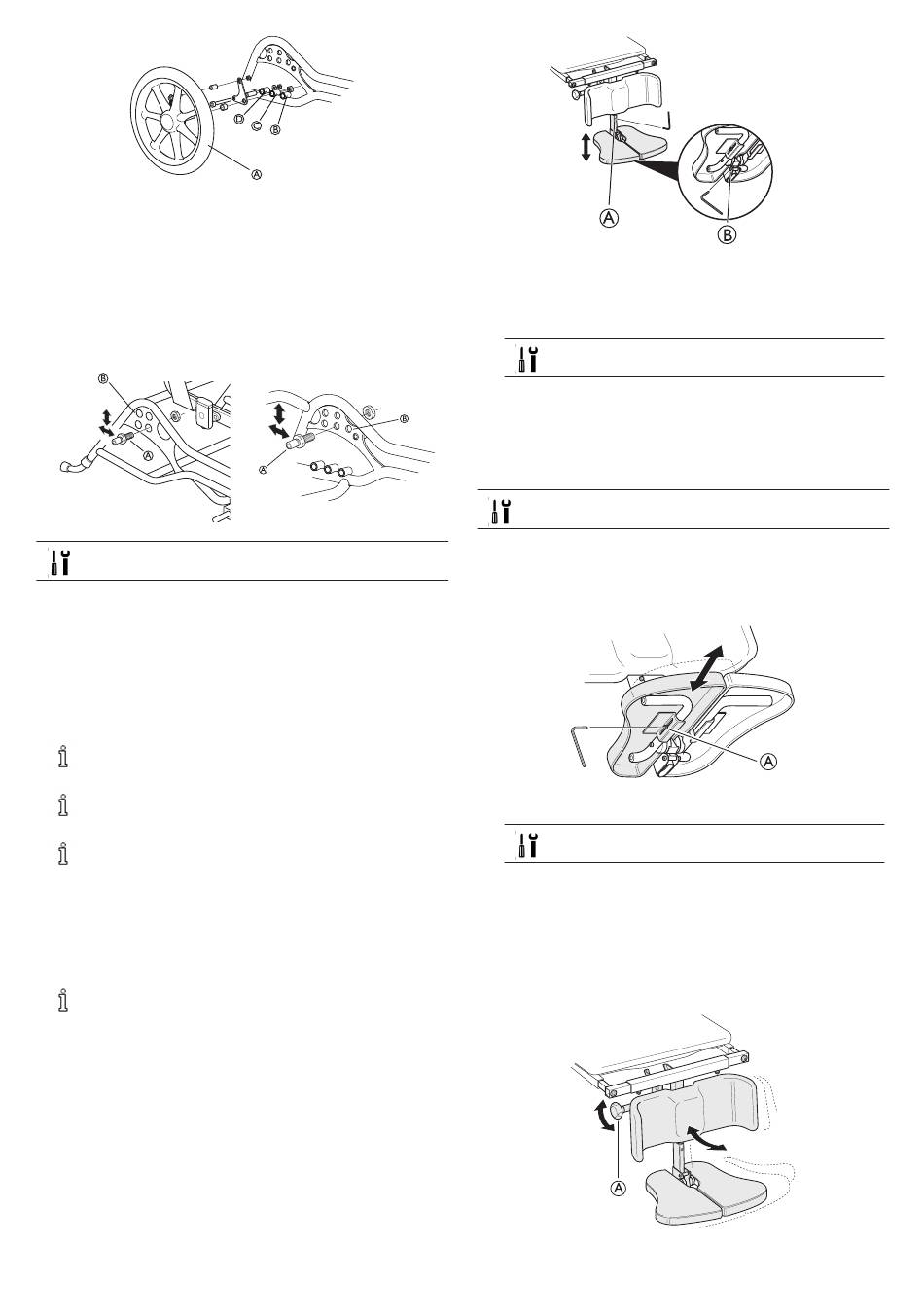

4.13.2 Adjustment 22–24 inch wheels
Azalea:
B
A
24 mm fixed spanner
Horizontal position
1. Loosen the rear wheel attachment A with a spanner.
2. Move the housing to the required position on the rear
wheel position plate B, either further forwards or
backwards.
3. Check the position of the brakes, and that the user can
move the chair safely in its new balance position.
For the Azalea Max there are three different horizontal
positions for the rear wheel.
Make sure that you tighten the housing securely when
you have decided on the position.
The axle housing should be tightened with a manual
and dynamometric wrench calibrated to 40 Nm.
Height
1. Loosen and remove the a ttachment A using a spanner.
2. Move the rear wheel attachment to the required height.
3. Re-tighten the attachment.
If the position in height is changed, the size of the rear
wheels must also be changed.
See section: 8.8 Seat height tables, page 40for correct
positioning of the rear wheel.
4.14 Central legrest
4.14.1 Adjusting the height of the central legrest
You can adjust the height of the legrest in the following two
ways:
28
D
C
B
A
Azalea Max:
B
A
A
Alternative 1:
24 mm fixed spanner
1. Loosen the screw A on the front of the telescopic tube.
5 mm Allen key
2. Place the legrest in the desired position.
3. Secure the legrest into place using the Allen screw.
Alternative 2:
1. Loosen the Allen screw B by the legrest attachment.
5 mm Allen key
2. Adjust to the desired height.
3. Re-tighten the screw
4.14.2 Adjusting the depth of the central legrest
1. Loosen the frontal screw A on the side of the tube.
5 mm Allen key
2. Adjust the depth of the foot plate.
3. Tighten the screw A when you have found the desired
depth.
4. Repeat this procedure to adjust the depth of the other
foot plate.
4.14.3 Adjusting the angle of the central legrest
A
1. Loosen the adjustment knob A.
B
A
1580313-K
