Adjusting The Leg Rests; Adjusting The Brake Effect; User Brake - Adjustment; Drum Brake - Adjustments - Invacare Rea Azalea Assist Service Manual

2. Hold the foot plate with the other hand.
3. Adjust to the appropriate leg angle.
4. Re-tighten the knob.
WARNING!
Risk of trapping fingers
When adjusting the foot plate, the fingers might get
trapped.
— Loosen the adjustment knob with one hand and
hold the foot plate with the other hand to avoid
trapping yours or anyone else's fingers.
CAUTION!
Risk of damage
The legrest might cause damage to the floor.
— When the seat is tilted forwards on a chair with
a long legrest length and low seat height, there
is a risk of the legrest hitting the floor and
causing damage.
4.15 Adjusting the leg rests
To adjust the leg rests, refer to the User Manual paragraphs:
1. Swing away, angle adjustable leg rest.
2. Swing away leg rest (fixed).
5 mm Allen key

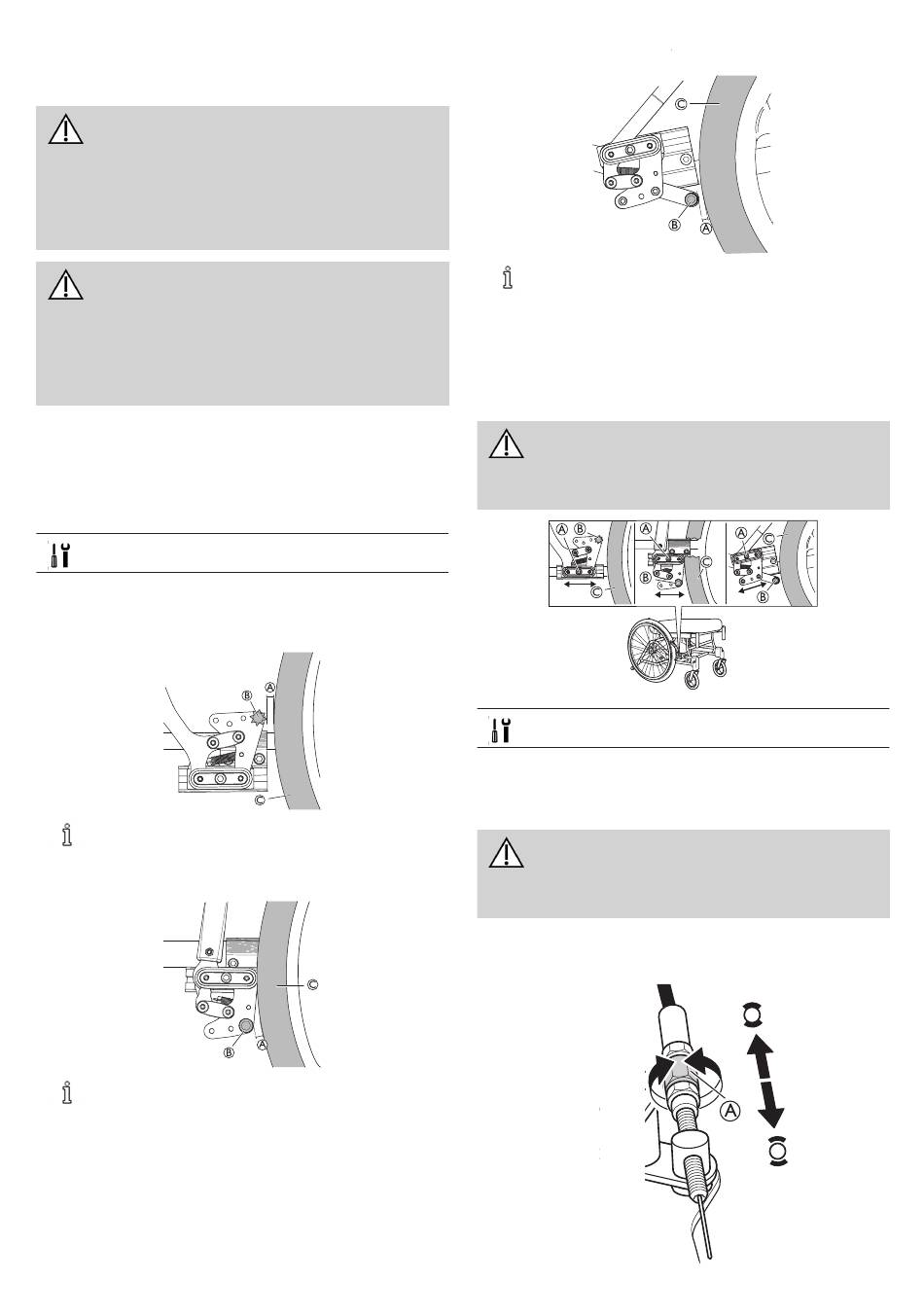

4.16 Adjusting the brake effect
Brake type 1
The distance A between the pin B and the tire C
should be max. 2 mm.
Brake type 2 (not available on all models)
The distance A between the pin B and the tire C
should be max. 15 mm.
Brake type 3 (16" wheels)
29
A
B
C
C
A
B
The distance A between the pin B and the tire C
should be max. 6 mm.
4.17 User brake — adjustment
To attain the correct braking effect, the brake pin should press
into the tire when you apply the brake. The brake may
therefore require depth adjustment.
WARNING!
Risk of reduced brake effect
— Incorrect setting or use of the brake reduces
the braking effect.
A B A
B
C
5 mm Allen key
1. Loosen the screw A.
2. Move the brake to the required position.
3. Re-tighten the screw A.
CAUTION!
Risk of trapping fingers
— Be careful not to trap your fingers between the
brake pin B and rear wheel C.
4.18 Drum brake — adjustments
1.
4 Settings and Adjustments
C
B
A
A
C
C
B
A
