Rea® Azalea®
3.

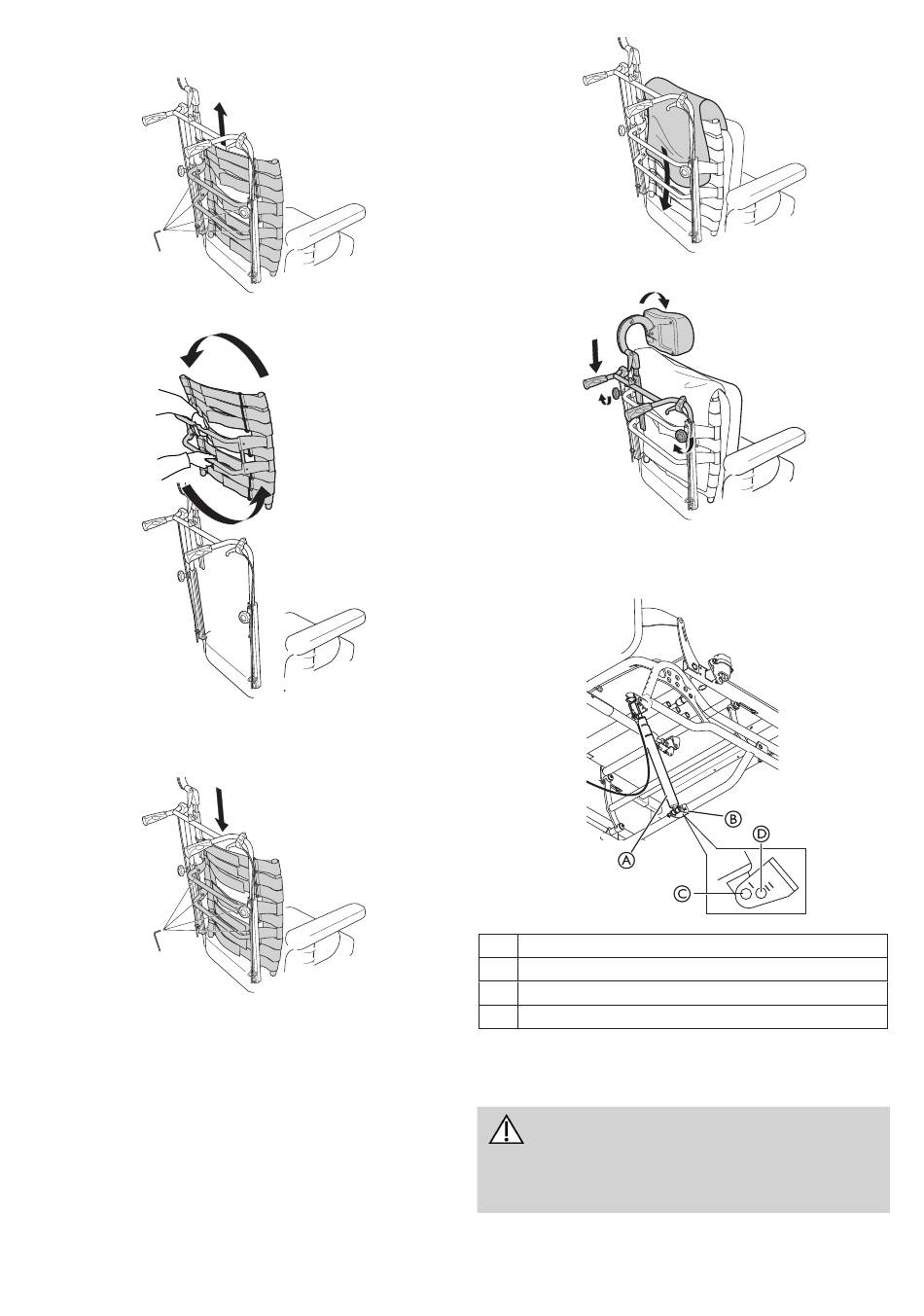

Loosen screws and remove the backrest by lifting upwards.
3.
Turn the backrest 180°
4.
Put the backrest back by fitting it to the receivers on the
tubes. Tighten the screws.
24
5.
Put the cushion and cover back.
6.
Lower the push handles and tighten the hand wheels.
4.5.2 Azalea Max angle settings
A
A Gas spring
B Chassis attachment
C Gas spring position when electric tilt is used
D Gas spring position when electric tilt is not used
There is a possibility to change the range of available angles for
the seat by changing the position of the gas spring on the
chassis attachment.
WARNING!
Risk of damage
Incorrect mounting of the gas spring
— This procedure must only be performed by a
service technician.
Other Azalea models can use either gas spring position (C or
D).
B
D
C
