When using electric tilt though, only gas spring
position C can be used.
WARNING!
Risk of pinching
— The wheelchair should be tipped over sideways
before the gas spring is loosened from the
chassi attachment. Otherwise there is a risk of
pinching.
Angles obtained:
Gas piston position C with 16 inch rear
wheels:
Gas piston position C with 24 inch rear
wheels:
Gas piston position D with 16 inch rear
wheels:
Gas piston position D with 24 inch rear
wheels:

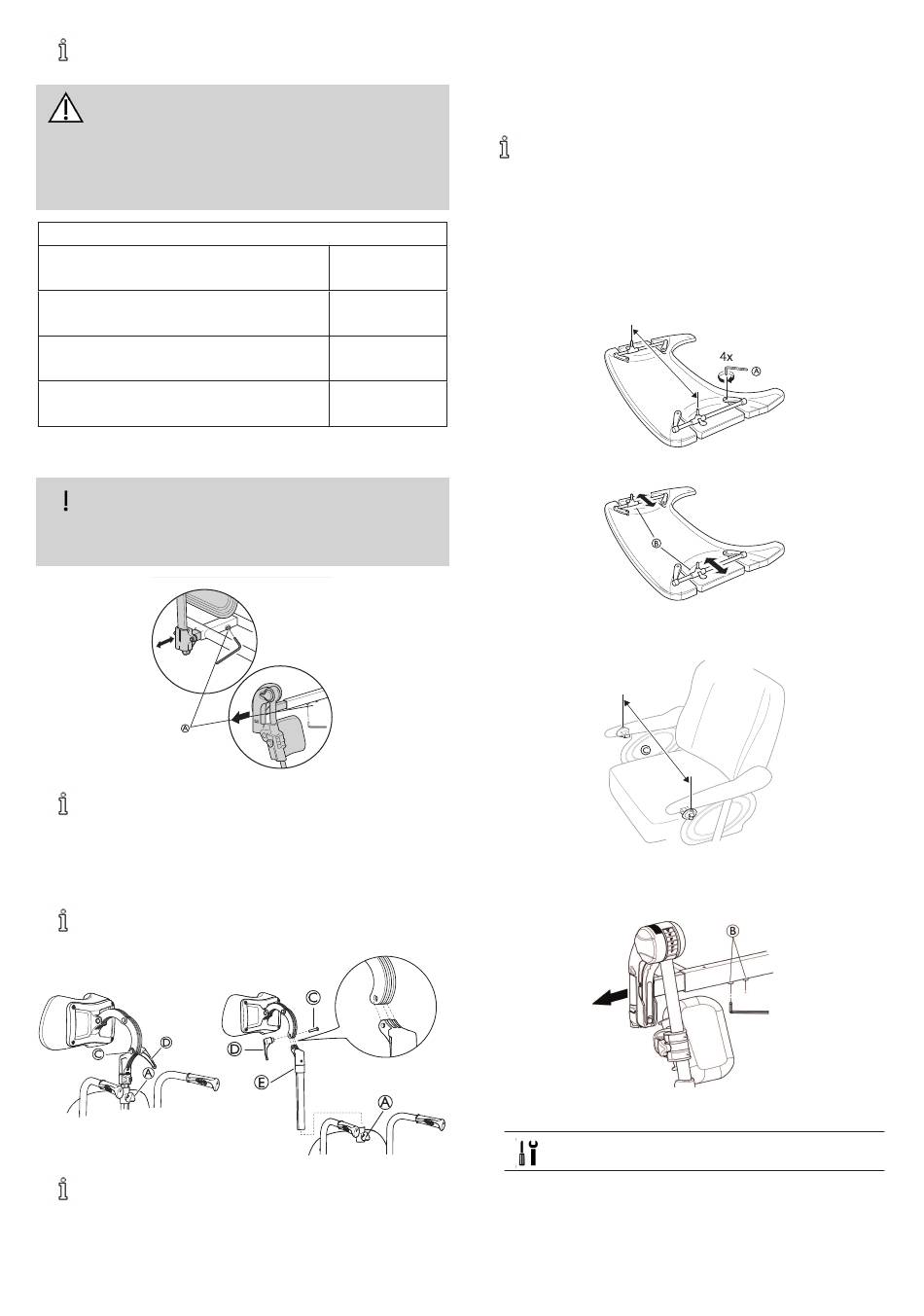

4.6 Re-adjustment — armrest / legrest
NOTICE!
Risk of poor adjustment
— There must not be any pressure on the armrest
/ legrest while a djusting the screw.
A
After a period of use, the screws A may need to be re-
tightened (12Nm).
4.7 Positioning the headrest / neckrest
to the front
This additional depth adjustment will move the
headrest another 7 cm forward.
D
C
A
You can also adjust the angle and depth by turning the
attachment for the headrest / neckrest.
1. Loosen t he handwheel A.
2. Remove the headrest / neckrest.
25
-1 — +23
degrees
-1 — +23
degrees
+1 — +24
degrees
+1 — +24
degrees
C
D
E
A
3. Loosen the handle D.
4. Remove the screw and the handle.
5. Rotate the headrest / neckrest attachment pole including
the attachment E.
6. Return the headrest / neckrest to the attachment.
Note that the screw to the headrest / neckrest
attachment C and the handle D must be mounted on
the opposite side due to the groves in the screw hole.
7. Return the headrest / neckrest to the attachment on the
backrest.
8. Re-tighten the handle D and the handwheel A.
4.8 Adjusting the width of the table tray
1.
Loosen the 4 screws A.
2.
Adjust the attachment bars B in order to fit the table t o
the desired width. Re-tighten the screws.
3.
C
Fit the table to fit the width of the chair C.
4.9 Adjusting the width of the leg rest
1. Loosen the screws A.
5 mm Allen key
2. Adjust the leg rests to the desired width.
3. Re-tighten the screws.
4 Settings and Adjustments
4x
A
B
