extended evacuation time may be required and/or inadequate vacuum
obtained. The control has provisions to open the EXV for refrigerant
recovery and/or evacuation.
• Set desired time period. Default time period for procedure is 120
minutes.
• Touch START on Evolution System Control or service tool to open
the valve.
• Begin evacuation or refrigerant recovery as required for the procedure
after control indicates the EXV is open. Power may be removed from
heat pump after the control indicates "READY TO EVACUATE."

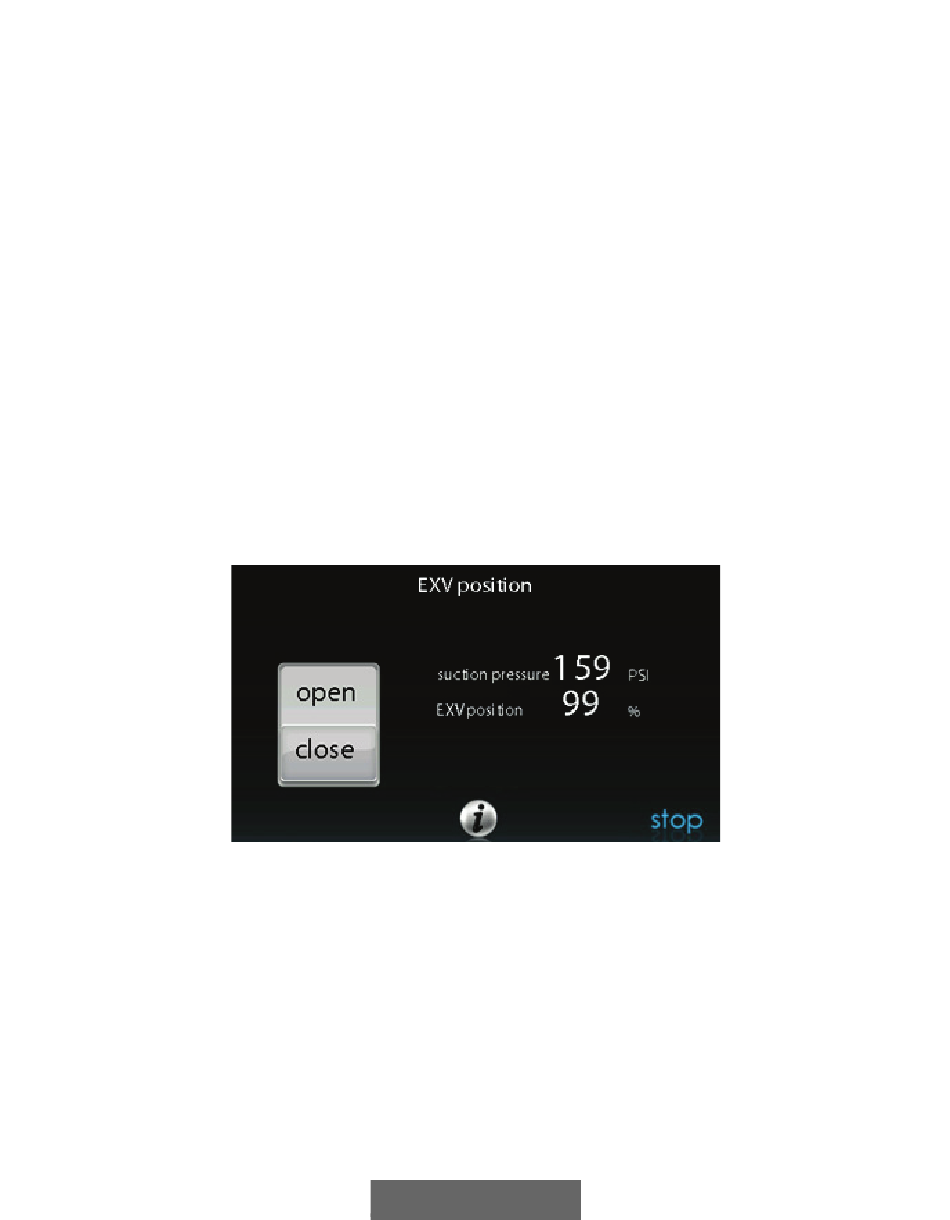

6.6.4. EXV Position
This screen allows the installer to set the EXV position and monitor the
suction pressure.
NOTE: Screen data will vary based on unit installed.
6.7. Dealer Logo for Series C
NOTE: More detailed information can be found on HVACPartners.com
under: Products and Dashboards > Product Catalog > Residential
Controls < Systems Controls > SYSTXBBECC01-C > Documents >
Marketing > Miscellaneous > Evolution Connex Control Dealer Logo
Application - Instructions.
71
A14233
