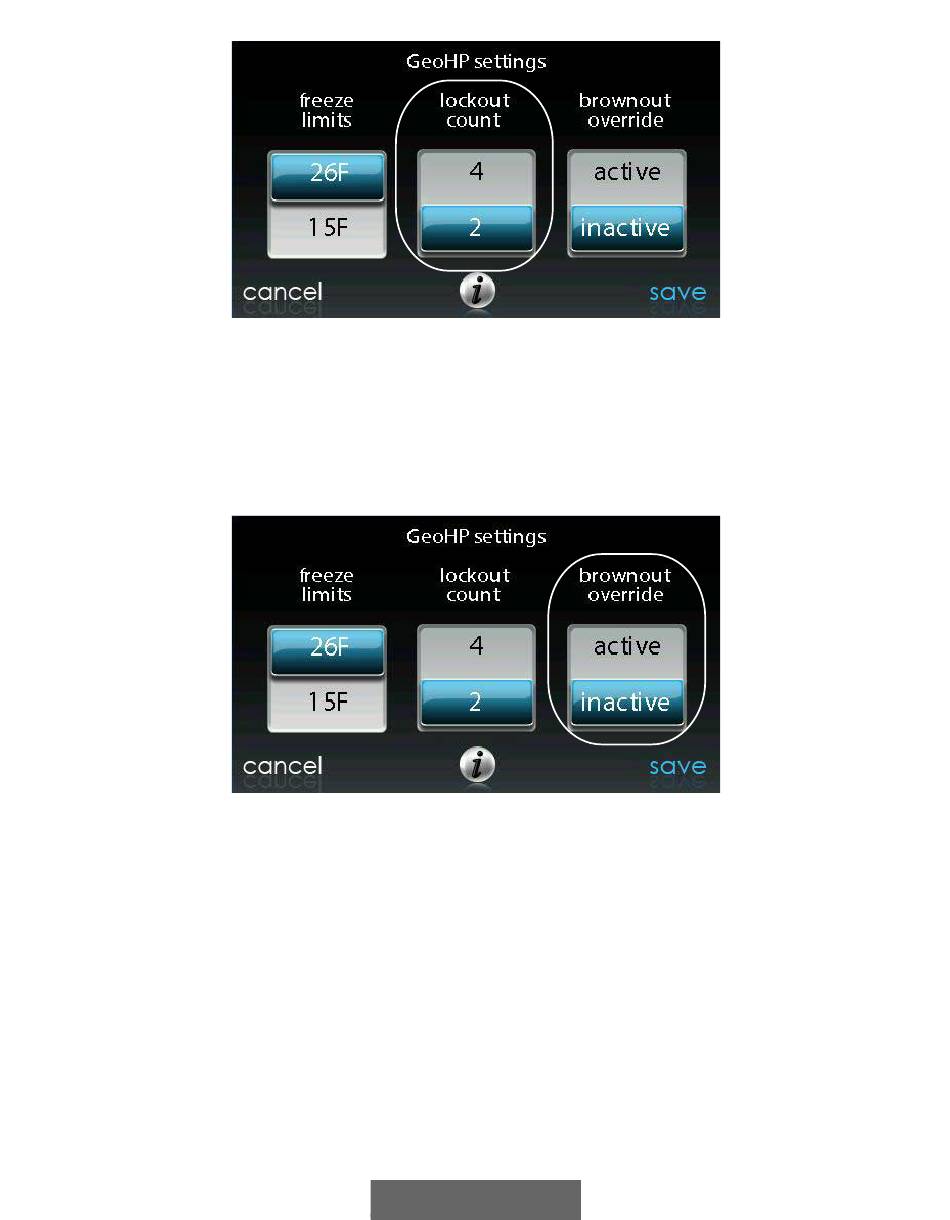

6.3.7.3. Brownout Override
This option controls the low voltage brownout override function in the
Geo HP unit. After the selection is made, touch SAVE.
• Brownout Override: Active or Inactive. Default = Inactive
6.3.7.4. Geothermal HP Energy Tracking
Energy tracking for geothermal heat pumps requires the installation of an
Entering Water Temperature (EWT) sensor. See the geothermal heat
pump literature for information on installing this sensor.
If the EWT sensor is installed, the installer will be able to enter the Loop
Flow Rate and the Loop Pump power. See the figure in the Geothermal
HP Section. These inputs will help the Energy Tracking algorithm
49
A150180
A150181
