Carrier bryant Evolution Connex Control SYSTXBBECC01-C Installation Instructions Manual

Carrier bryant Evolution Connex Control SYSTXBBECC01-C Installation Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
ventil
SYSTXBBECC01-C,
SYSTXBBWEC01-C

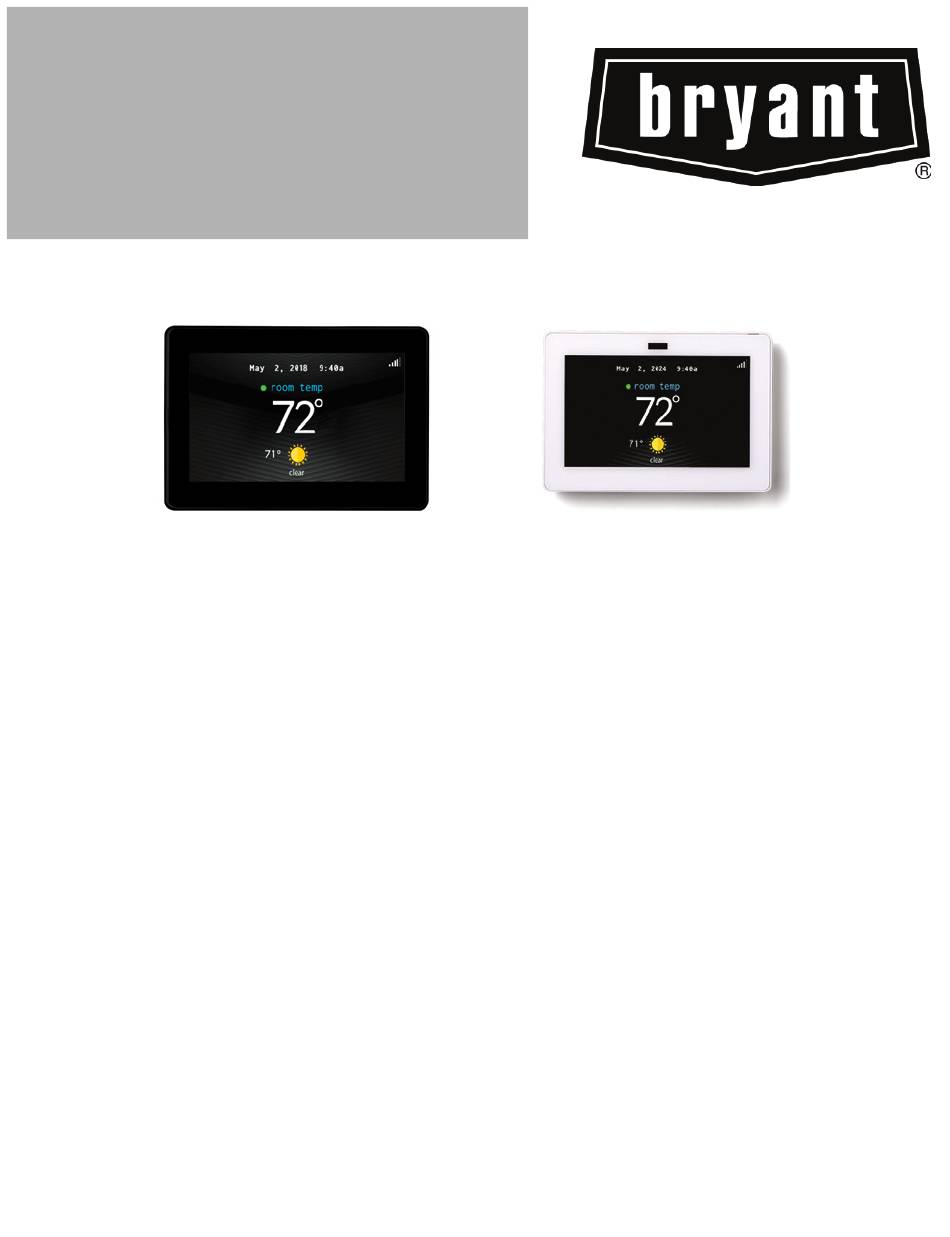

Evolution™ Connex™
Control
NOTE: Read the entire instruction manual before starting the
installation.
NOTE: Please refer to the literature provided with the connected HVAC
equipment for more details on system operations with specific pieces of
equipment.
The features and functions outlined in the Installation Instructions reflect
Version 1.3 or later software. See the Evolution Connex product page on
the HVACPartners.com website or the Downloads section of the
www.MyEvolutionconnex.Bryant.com
release and literature.
US Patents: Carrier U.S. Pat No. 7,243,004, U.S. Pat No. 7,775,452,
pointSET™ U.S. Pat No. 7,415,102
Installation Instructions
A210173
website for the latest software
A240298
