6.3.3.8. Furnace G Terminal
This setup option selects desired operation when the R-G circuit changes
state on the furnace control board depending on setup.
Under the function option, FAN turns on fan to selected fan speed when
G terminal is energized. SHUTDOWN shuts off fan and equipment
when initiated.
After the selections are made, touch SAVE.
• Function: Disabled, Fan or Shutdown. Default = Disabled
• Fan Speed: Low, Med, or High. Default = Low
• Shutdown:
– Normally Open
– Normally Closed
– The shutdown function may not be immediate. Blower off delays,
etc., will still be used. The shutdown is not intended for commercial
applications. If immediate shutdown is required, provision must be
made to remove power to indoor unit.

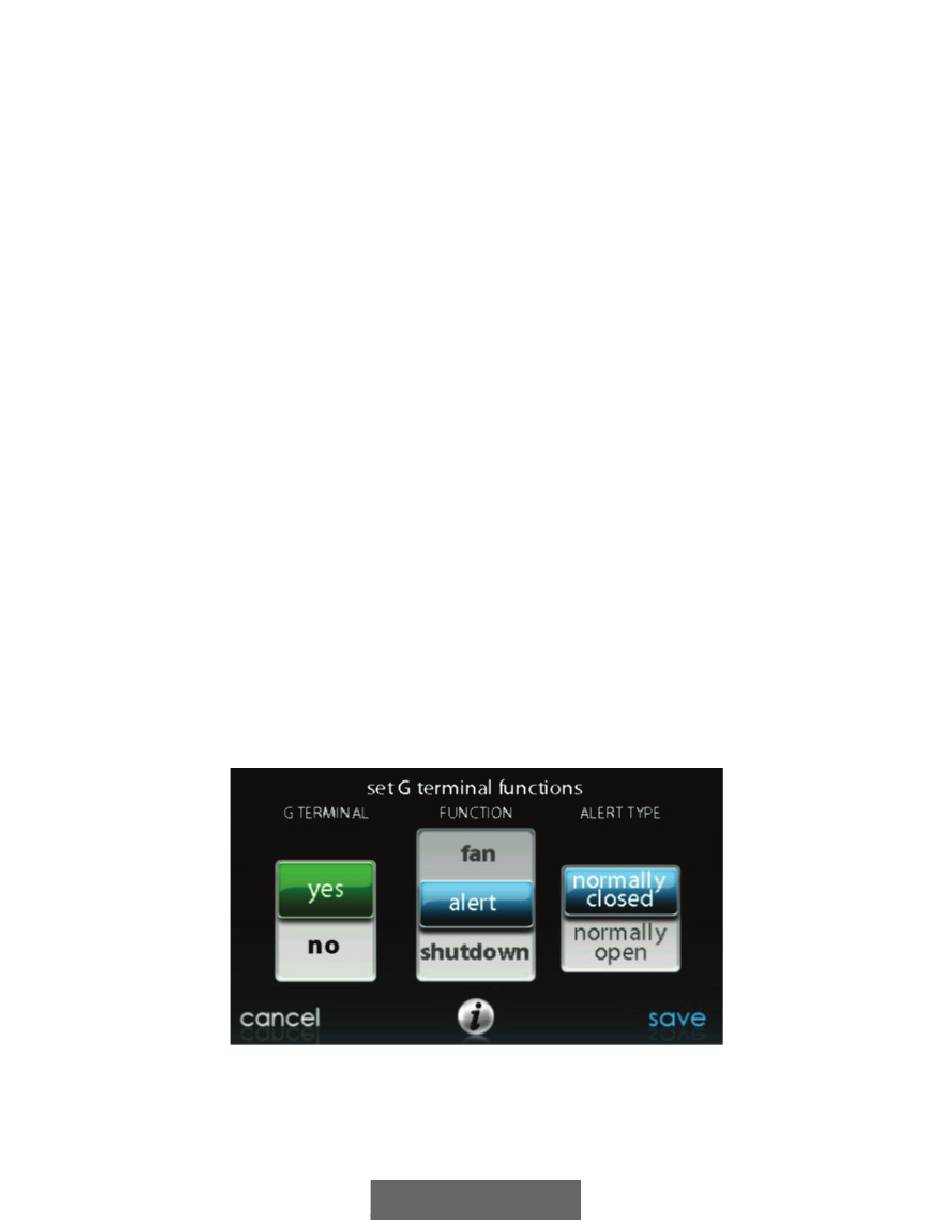

6.3.3.9. Furnace G-Terminal Alert
Use the alert function to select the contact state for an alert. Select
Normally Open or Normally Closed, and then save your selection.
41
A13230
