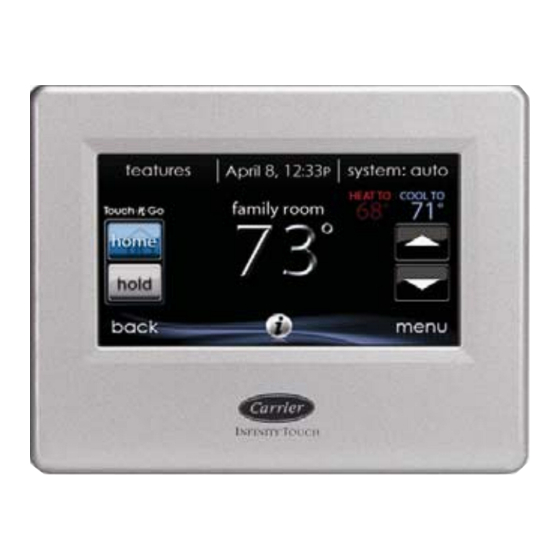

Carrier Infinity SYSTXCCITW01 Owner's Manual

Infinity touch control
Hide thumbs Also See for Infinity SYSTXCCITW01:
Table of Contents

Advertisement

Quick Links

See also: Instruction and Installation Manual
SYSTXCCITW01 &
SYSTXCCITN01
Infinityr Touch Control
NOTE: Read the entire instruction manual before starting the installation.
US Patents: Carrierr U.S. Pat No. 7,243,004, Carrierr U.S. Pat No. 7,775,452,
pointSETt U.S. Pat No. 7,415,102
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Infinity SYSTXCCITW01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Carrier Infinity SYSTXCCITW01

Summary of Contents for Carrier Infinity SYSTXCCITW01

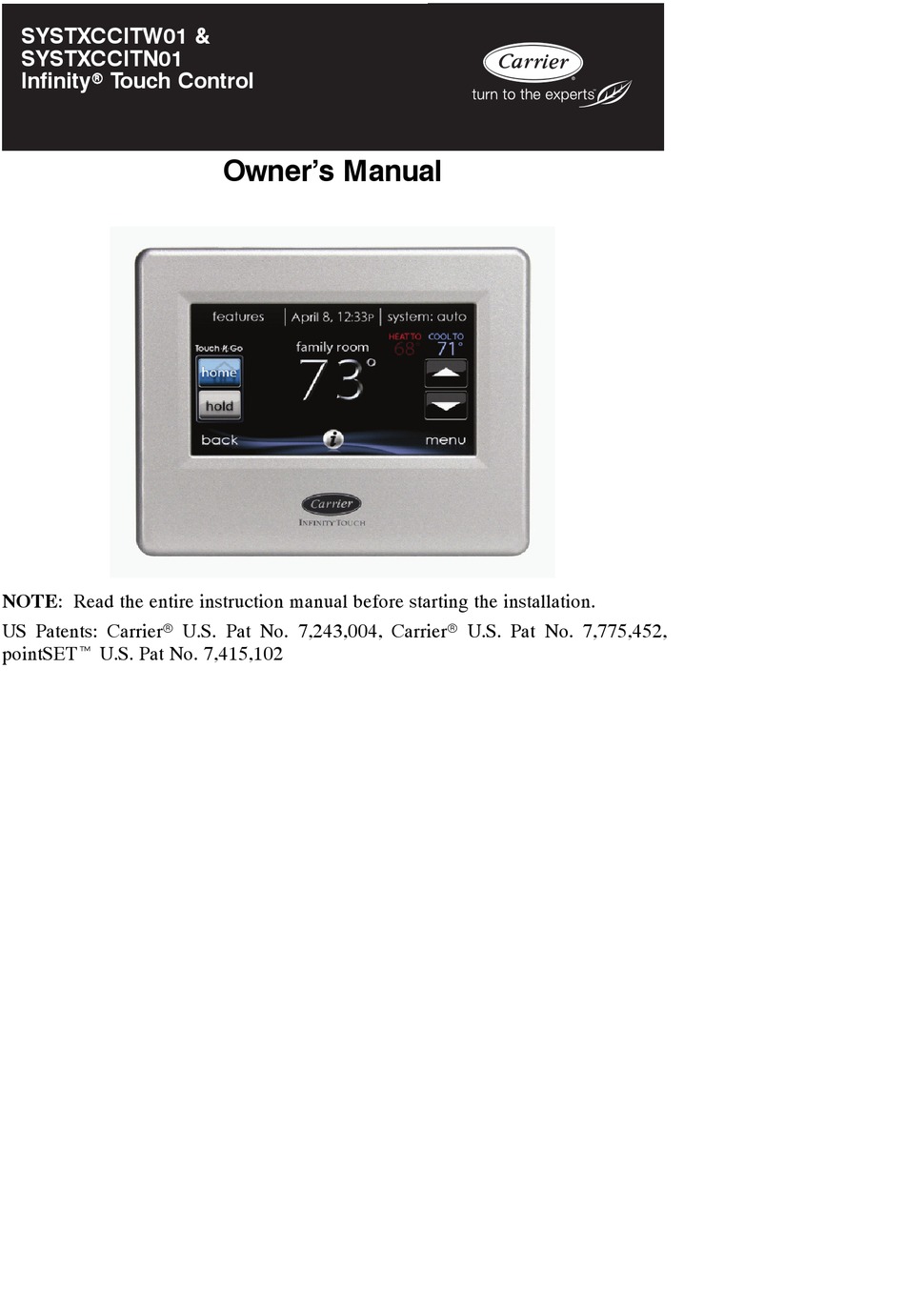

  • Page 1 SYSTXCCITW01 & SYSTXCCITN01 Infinityr Touch Control Owner’s Manual NOTE: Read the entire instruction manual before starting the installation. US Patents: Carrierr U.S. Pat No. 7,243,004, Carrierr U.S. Pat No. 7,775,452, pointSETt U.S. Pat No. 7,415,102...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS PAGE Introduction ........... . . Home Screen .
  • Page 4 TABLE OF CONTENTS (cont.) PAGE Away Humidity Control ......... . Away Fresh Air Control .

  • Page 5: Introduction

    INTRODUCTION CONGRATULATIONS! Your decision to choose the InfinityR Touch Control puts you in a select group of homeowners who understand the value of precise comfort control and appreciate the simplicity of an easy- - to- - use, intuitive, control. Your new Infinity Touch Control offers high quality comfort technology. Please take a few moments to carefully read through this manual.

  • Page 6: Information Buttons

    Information Buttons On the bottom of some screens will be an information icon. By pressing the information icon, a text box will display to show what interactions are available on that particular screen. To close the text box, press the information icon again. FIGURE PLACE HOLDER A12103 MAIN SCREEN...

  • Page 7: Set Day And Time

    If HEAT is selected then the Infinity Touch Control operates only the heating system. If COOL is selected then the Infinity Touch Control operates only the cooling system. If FAN ONLY is selected, then the Infinity Touch Control operates the indoor fan.

  • Page 8: Adjusting Heating

    Use the Up (Y) and Down (B) buttons to change the time to temporar- ily hold the desired temperature in 15 minute increments. When the correct time interval is displayed, touch DONE. To return to the scheduled program, touch HOLD UNTIL, and then select PER SCHEDULE.

  • Page 9: Adjust Temperature (Permanent Hold)

    To return to the scheduled program, touch HOLD UNTIL, and then select PER SCHEDULE. Adjust Temperature (Permanent Hold) The Infinity Touch Control allows you to permanently override your programmed schedule by adjusting the indoor temperature at any time to meet your needs. Adjusting Comfort Profiles (See Comfort Profiles on Page 7) To adjust the comfort activity, enter the main screen by touching any- where on the control.

  • Page 10: Adjusting Cooling

    Adjusting Cooling To adjust the cooling temperature, enter the main screen by touching anywhere on the control. With the system in either AUTO or COOL mode, use the Up (Y) and Down (B) buttons to set the desired temperature. On the left hand side of the screen, the comfort profile will switch to MANUAL.

  • Page 11: Menu Screen

    In the drop down menu you will see your measured humidity levels within the conditioned space. MENU SCREEN Your menu screen offers more features and control for your Infinity Touch Control. Touch the menu button at the bottom right of the main screen. Comfort Profiles You will need to set the comfort profiles before you attempt to program your new Infinity Touch Control.

  • Page 12: Home Humidity Control

    Do the same thing to change the WAKE and SLEEP profiles. The AWAY profile provides an extra feature called Smart Setback. It allows the Infinityr System to dynamically determine the away temperature automatically to save the most amount of money, yet reach your comfort settings when you return home.

  • Page 13: Home Fresh Air Control

    Choosing WINDOW PROTECT, the system will pick the right settings to keep condensate from forming on your windows, based on the outdoor temperature and the quality of your windows. Next, select your desired humidity level during cooling by touching COOLING HUMIDITY. Use the Up (Y) and Down (B) buttons to set the desired dehumidi- fication level between 46- - 58%.

  • Page 14: Away Fresh Air Control

    If you have a humidifier installed for your system, touch HEATING HUMIDITY to set the desired humidity level when you are away home. Use the Up (Y) and Down (B) buttons to set the minimum humid- ity level between 0- - 20%. To set the desired humidity level during cooling, touch COOLING HUMIDITY.

  • Page 15: Programming The Infinityr Touch Control

    Programming the Infinity Touch Control Touching the SCHEDULES icon provides three options. You may select to be guided though the process, choose to handle the scheduling yourself or upload your schedule from a USB drive. A12105 Schedule Yourself To set a specific day use the Left (A) and Right (") buttons beside the day names.

  • Page 16: Guide Me Through Scheduling

    For Zoning To set a specific room, use the Left (A) and Right (") buttons beside the zone name. If you wish to copy this schedule to a different zone, touch COPY above the zone name. Select the zones you wish to have the same schedule, then press COPY.
  • Page 17 If you select NO, the next question will ask what time you leave the home. Use the Up (Y) and Down (B) buttons to set the time you leave. After you have selected the correct time, touch NEXT to continue. You will then be asked what time you will return to your home.

  • Page 18: Upload My Schedule

    The Upload my Schedule feature will allow you to upload your schedule using a standard USB drive. After you have programmed your schedule using the PC application, found at MyInfinity.carrier.com save it to a standard USB drive. Place the USB drive into the USB port on the bottom of the Infinity Touch Control.

  • Page 19: Operating Status

    Use the Up (Y) and Down (B) buttons to make the appropriate changes. When you have completed all of the settings touch SAVE. If you make a mistake you may touch CANCEL and begin again. A12106 Operating Status The operating status menu gives a quick look at the status of your InfinityR Heating and Cooling System.

  • Page 20: Accessories Status

    Within the operating status, you can view which function is operating, and what stage the heating or cooling equipment is in. When you are finished looking at the operating status, press the DONE button to return to the previous menu. Accessories Status Within the accessory status, you can view how much of each accessory has been consumed, and reset the counter for each accessory.

  • Page 21: Vacation Settings

    A12109 Vacation Settings Touch the VACATION icon in order to set a prolonged vacation schedule. A12174 Touch PLAN VACATION to begin your vacation schedule. Use the Up (Y) and Down (B) buttons to set the time and date of when your vacation begins;...

  • Page 22: Energy Tracking

    Review your vacation schedule to make sure it is accurate. If it is cor- rect, touch SAVE to complete your vacation schedule. A12110 Energy Tracking The Infinity Touch Control has the ability to monitor and estimate the energy consumption of certain models, of your Infinity System. A12111 Once inside the energy tracking screen, you can view the estimated energy consumption in daily, monthly or annual time intervals.

  • Page 23: Wireless Set- -Up (If Applicable)

    Touch Control and is not intended to be used wired or wirelessly with any other devices. Please call 1-800-CARRIER for support with the installation and setup of the TP-LINK Wireless Access Point and connection of the Infinity Control to the Wireless Access Point.
  • Page 24 Infinity Touch Control will not be negatively affected by the network- - related modifications, upgrades, or similar activity of the user’s internet service provider or...
  • Page 25 A12115 Select the myHVACxxxxxx connection from the list, then touch NEXT (myHVAC is followed by the last 6 digits of your Wireless Access Point’s MAC address; see the label on the bottom of the TP- - LINK Wire- less Access Point). SSID &...
  • Page 26 A12116 Use the on screen keyboard to enter the Wi- - Fi security key, then touch NEXT. Touch in the security key area, and the keyboard will appear. The security key can be found on the back of the TP- - LINK Wire- less Access Point.
  • Page 27 A12118 After your control has connected to the network, go to www.myinfinity.carrier.com to register the unit and begin remote access. This requires the MAC address and serial number of the InfinityR Touch Wall Control, NOT the Wireless Access Point. To find the serial number and MAC address of the Infinity Touch Wall Control, click on Menu, Down Arrow, Wireless and View My Infinityr Info.

  • Page 28: Screen Lock

    A12356 Screen Lock The screen may be locked by selecting the screen lock icon. A message will pop up asking if you want to proceed with the screen lock. Selecting Yes will lock the screen and take you back to the home screen. To unlock the screen, touch the padlock for 10 seconds.

  • Page 29: Weather Forecast

    A12348 Weather Forecast When the Infinity Touch Control is connected to a Wi- - Fi network, use the WEATHER icon to retrieve the weather forecast based your postal code. A12119 To enter your postal code, touch CHANGE CURRENT LOCATION. Next, select your country (United States, Canada, or Mexico). To enter your postal code, touch in the blank area;...

  • Page 30: Service

    Service Your dealer information is easily accessible and probably programmed in your control. Select the SERVICE icon from the menu screen. Either your dealer’s contact information or 1- - 800- - Carrier will appear. A12121 Photo Upload With the Infinity Touch Control, you can upload a personal photo to act as a screen...

  • Page 31: Accessory Reminders

    A12122 Use the PC application to upload the photo on the control and save it to a standard USB drive. Go to https://www.myinfinity.carrier.com and select the Infinity Touch Control and click the downloads tab to down- load the MyInfinity application for either PC or MAC. Install the soft- ware on your computer, then go to the Menu and select Photo Export.

  • Page 32: Display

    A12123 You have the option of choosing a pop- - up reminder for your air filter, humidifier, UV lights, or ventilator pre- - filter. To enable a reminder, touch YES. After you have selected your desired reminders, touch SAVE. Display With the Infinity Touch Control, you can change aspects of the display for your personal preferences.

  • Page 33: Heat Source (If Applicable)

    To allow a photo to act as a screen saver, touch ENABLE; otherwise, touch DISABLE. To allow a buzzer to sound on each touch of the screen, touch EN- ABLE; otherwise, touch DISABLE. Heat Source (if applicable) With the Infinity Touch Control, you can select the desired heat source of your system, if your system is equipped as a HYBRIDHEATR System.
  • Page 34 A12156 Touch the zone in which you choose to change the name. Choose between selecting a COMMON NAME or CREATE A CUS- TOM NAME. If you choose select a common name, touch the name you want for that particular zone. If you choose create a custom name, use the (≤) button to erase the existing zone name.
  • Page 36 Infinity, Touch- - N- - Go and HYBRIDHEAT are trademarks or registered trademarks of Carrier Corporation in the United States and other countries. Other brands and product names are trademarks of their respective holders. Copyright 2012 Carrier Corp. S 7310 W. Morris St. S Indianapolis, IN 46231...
